Saturn V

Saturn V
NASA · Public domain · source
Name	Saturn V

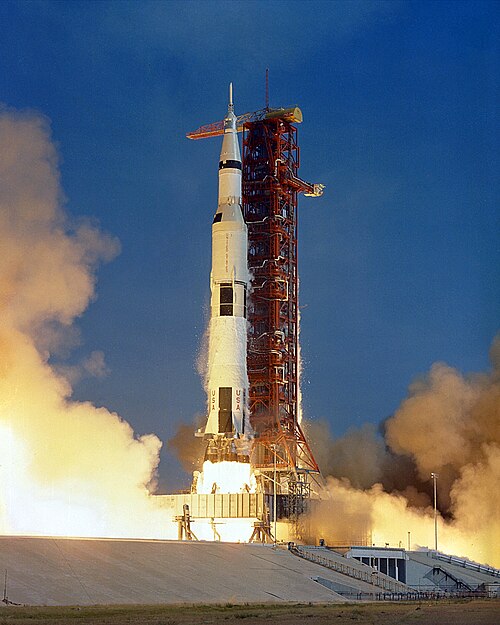

Caption	Saturn V launching Apollo 11 from Kennedy Space Center
Manufacturer	NASA Marshall Space Flight Center / Boeing (aircraft) / North American Aviation / Douglas Aircraft Company / IBM / Northrop Grumman
Country	United States
Height	110.6 m
Diameter	10.1 m
Mass	2,970,000 kg (fully fueled)
Status	Retired
First	November 9, 1967
Last	May 14, 1973

Saturn V was a heavy-lift launch vehicle developed for the Apollo program to enable crewed lunar missions, and later used for Skylab. It remains one of the most powerful rockets ever flown, enabling Apollo 11 to land humans on the Moon and supporting high-profile missions that advanced space exploration and propulsion engineering. The vehicle integrated technologies from multiple contractors and became a symbol of the Space Race during the Cold War.

History and development

Development began under direction of the Marshall Space Flight Center with chief engineer Wernher von Braun leading propulsion and design efforts drawn from earlier work on the V-2 rocket and the Jupiter-C. The Saturn family evolved through proposals such as the Saturn I and Saturn IB before the three-stage heavy-lift configuration was chosen to meet requirements set by NASA leadership including James E. Webb and program managers coordinating with the White House during the administrations of John F. Kennedy and Lyndon B. Johnson. Political drivers included competition with the Soviet Union and commitments after Kennedy’s speech to achieve a crewed lunar landing. Funding and schedules were shaped by hearings in the United States Congress and oversight from agencies like the Aerojet-General Corporation and contractors including Boeing (aircraft). Design milestones were verified at test facilities such as Stennis Space Center and the Marshall Space Flight Center test stands.

Design and specifications

The vehicle used a cluster of F-1 engines in the first stage developed by Rocketdyne and J-2 engines in the second and third stages also by Rocketdyne. Structural design drew on expertise from North American Aviation and Douglas Aircraft Company, and avionics were supplied by IBM systems engineers collaborating with Huntsville teams. Propellant choices—RP-1 (refined kerosene) and liquid oxygen for the first stage, liquid hydrogen and liquid oxygen for upper stages—entailed cryogenic technology refinement at facilities including Marshall Space Flight Center and Stennis Space Center. Key dimensions included a height of about 110.6 m and a core diameter of 10.1 m; guidance used the Instrument Unit developed by IBM under management from NASA program offices. Payload accommodations supported the Command/Service Module and the Lunar Module designed by Grumman.

Launch operations and mission profile

Launches were conducted from Launch Complex 39 at Kennedy Space Center using the Mobile Launcher Platform and Crawler-transporter to move vehicles from the Vehicle Assembly Building to the pad. The canonical flight profile began with first stage ignition and ascent, stage separation, second stage burn and separation, third stage ignition to achieve translunar injection for lunar missions, and final transposition, docking, and extraction maneuvers to deploy the Command/Service Module and Lunar Module. Ground control coordinated via Mission Control Center at Johnson Space Center with telemetry tracked by the Deep Space Network and recovery forces including United States Navy ships for Earth return operations. Flight rules and abort modes were prepared with input from NASA flight operations and safety offices.

Production and testing

Manufacturing involved large-scale industrial coordination among contractors: Boeing (aircraft) fabricated the first stage, North American Aviation and Douglas Aircraft Company built upper stages, and IBM produced guidance hardware. Major test campaigns included static-fire tests at facilities like Stennis Space Center and structural testing in the Vehicle Assembly Building; stage qualification and integration used test stands at Marshall Space Flight Center. Quality control and inspection regimes referenced military and civil aerospace standards overseen by NASA program offices and contractor quality managers. Flight acceptance required ensemble checks of propulsion, avionics, instrumentation, and stage interfaces prior to rollout on the Crawler-transporter.

Flight history and missions

The Saturn V’s first flight was during the uncrewed Apollo 4 test, followed by Apollo 6 and the crewed Apollo 8 lunar orbit mission. Notable flights included Apollo 11 which delivered Neil Armstrong and Buzz Aldrin to the Sea of Tranquility, Apollo 12 through Apollo 17 excluding Apollo 13 which experienced an in-flight accident but still used Saturn V for launch; Skylab was launched atop a modified Saturn V to place the Skylab space station into orbit. Each mission validated guidance, propulsion, and rendezvous techniques developed by teams at Johnson Space Center and contractors like Grumman and Rockwell International. Recovery and postflight analysis involved NASA investigation panels and contributed to improvements in reliability across the fleet.

Legacy and impact on spaceflight

The Saturn V established benchmarks for heavy-lift capability that influenced later concepts such as the Space Shuttle program, the Ares V proposals, and modern heavy-lift designs like Space Launch System and commercial rockets pursued by companies such as SpaceX and Blue Origin. Technological advances in cryogenics, large-engine clustering, and guidance avionics translated to aerospace practices at Aerospace Corporation and academic research at institutions like Massachusetts Institute of Technology and California Institute of Technology. Culturally, Saturn V symbolized achievements during the Space Race and remains displayed at museums including the Smithsonian Institution National Air and Space Museum and the Kennedy Space Center Visitor Complex, inspiring generations of engineers and scientists affiliated with organizations such as NASA and international partners. Its flights informed policy debates in the United States Congress about funding for human spaceflight and influenced international cooperative frameworks exemplified later by programs like the International Space Station.
