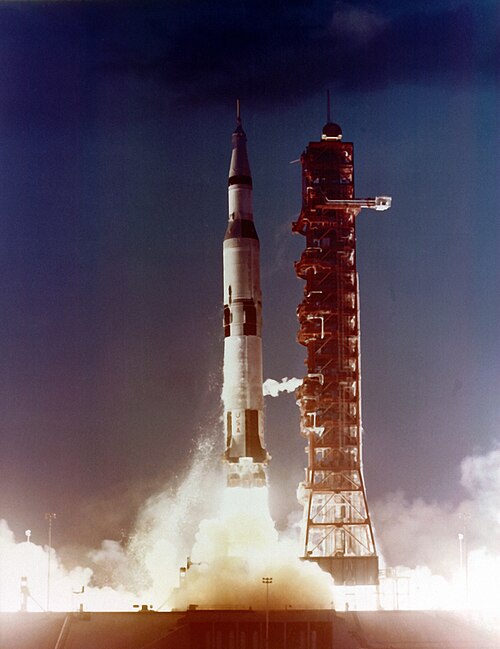

NASA · Public domain · source
Name	Apollo 4
Mission type	Uncrewed test flight
Operator	National Aeronautics and Space Administration
Mission duration	8 hours, 36 minutes, 59 seconds
Launch date	November 9, 1967
Launch site	Kennedy Space Center Launch Complex 39
Spacecraft	Command and Service Module (Block I) / Saturn V
Manufacturer	North American Aviation, Grumman, Boeing
Launch mass	29349 kg (CSM), Saturn V total mass ~2,800,000 kg
Orbit	Highly elliptical Earth orbit; reentry at lunar return velocities
Previous mission	AS-206
Next mission	Apollo 5

Apollo 4 Apollo 4 was the first flight of the Saturn V heavy launch vehicle and a pivotal uncrewed test of the Apollo program's hardware, demonstrating high-energy translunar mission elements and validating the Command Module heat shield at lunar return velocities. Launched from Kennedy Space Center Launch Complex 39 on November 9, 1967, the mission executed a near-lunar return reentry profile and provided critical data for subsequent crewed missions, influencing schedules in the National Aeronautics and Space Administration's push to meet goals set by President John F. Kennedy.

Background and Mission Planning

The mission emerged from planning at Manned Spacecraft Center and systems integration efforts led by Apollo Program management, driven by schedules set after the Mercury program and Gemini program. Informed by earlier tests such as AS-201 and AS-202, engineers from Marshall Space Flight Center coordinated with contractors including North American Aviation and The Boeing Company to prepare a comprehensive shakedown of the Saturn V and Command Module systems. Political pressures from Office of the President of the United States and oversight by Congress committees accelerated the need for an early high-energy demonstration to validate heat shield materials specified by Aerojet, Avco, and other suppliers. Program leadership figures at NASA Headquarters and field centers balanced risk assessments influenced by incidents in the Saturn I program and test results from the Saturn IB series.

Spacecraft and Launch Vehicle

The launch used a production-series Saturn V assembled by teams at Michoud Assembly Facility and integrated at Kennedy Space Center, with stage components from Boeing (S-IC), North American Aviation (S-II), and Rocketdyne (J-2 engines). The Command and Service Module was a Block I CSM built by North American Aviation and instrumented for telemetry and structural loads, while the Launch Escape System manufactured by Hamilton Standard was present though not active for crew since the flight was uncrewed. Avionics and guidance were provided by systems developed at MIT Instrumentation Laboratory and integrated with telemetry suites from Hughes Aircraft Company, IBM, and subcontractors. Ground support involved range assets from Eastern Test Range and recovery forces from the United States Navy including USS Bennington (CV-20)-class logistics support.

Flight Profile and Test Objectives

Primary objectives included full-vehicle ascent demonstration, S-II and S-IVB stage performance, CSM structural integrity, and Command Module heat shield validation at high-speed atmospheric reentry. The flight profile followed a three-stage ascent, S-IVB burn to a high elliptical orbit, and a translunar injection-analogous burn to achieve a reentry velocity comparable to a lunar return trajectory used later in crewed flights such as Apollo 8 and Apollo 11. Mission control functions were handled from Manned Spacecraft Center's Mission Control Center with flight operations coordinated among Marshall Space Flight Center, Kennedy Space Center, and the Johnson Space Center. Onboard instrumentation measured aerodynamic loading, acoustic environments, vibration levels, and thermal flux on the heat shield developed using concepts refined after studies at Langley Research Center.

Results and Measurements

The Saturn V performed nominally, with S-IC and S-II stages meeting thrust and staging parameters comparable to design forecasts from Wernher von Braun's team at Marshall Space Flight Center and contractors. The S-IVB second stage demonstrated restart characteristics relevant to later translunar injection burns, data that informed procedures used on Apollo 13 and Skylab. Telemetry captured by Manned Spaceflight Network and analyzed by teams at NASA Ames Research Center and Ames Research Center returned measurements of vibration, acoustic loads, and structural responses; these results led to adjustments in damping and insulation used in Command Module production. The Command Module heat shield, incorporating materials selection reviewed at Oak Ridge National Laboratory and tested in facilities such as Ames Research Center arc jets, successfully protected the structure during reentry at velocities similar to those planned for Trans-lunar injection returns, validating models at Langley Research Center and enabling confidence for crewed lunar missions.

Post-mission Analysis and Legacy

Post-flight assessments by panels including representatives from NASA Headquarters, Marshall Space Flight Center, and contractors concluded that the test met primary objectives, accelerating approval for subsequent missions like Apollo 6 and enabling a revised manifest culminating in Apollo 8's crewed lunar orbital flight. Lessons influenced design changes in avionics from MIT Instrumentation Laboratory, modifications to assembly practices at Michoud Assembly Facility, and procedural updates in Kennedy Space Center launch operations. The success contributed to public and congressional confidence in the Apollo program and affected timelines tied to presidential objectives articulated by President Lyndon B. Johnson and referenced during hearings of the United States Senate Committee on Aeronautical and Space Sciences. Technological heritage from the mission informed later programs including Skylab and Space Shuttle development, and artifacts from the flight have been curated by institutions such as the Smithsonian Institution and National Air and Space Museum.
