Command/Service Module

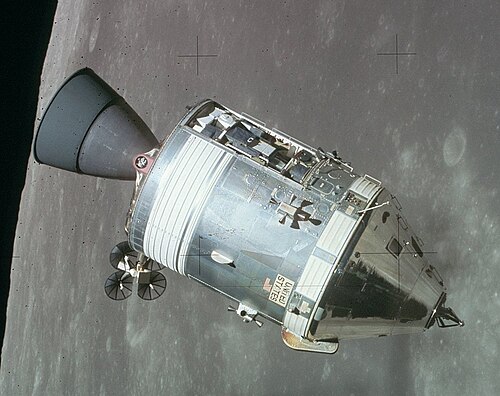

Command/Service Module
NASA · Public domain · source
Name	Command/Service Module
Country	United States
Operator	NASA
Manufacturer	North American Aviation / Rockwell International
First launch	1966
Last launch	1975
Status	Retired

Command/Service Module

The Command/Service Module was the two-part crewed spacecraft used for Apollo program lunar missions and related Skylab and Apollo–Soyuz Test Project flights. It combined a pressurized reentry cabin with a cylindrical service section carrying propulsion, electrical power, and consumables to support crews during translunar, lunar orbital, and Earth-return phases. Engineers from Langley Research Center, Marshall Space Flight Center, and Johnson Space Center collaborated with industrial partners including North American Aviation, Boeing, and Grumman to produce a flight-capable vehicle that integrated systems from Rockwell International and suppliers across the United States.

Design and Structure

The vehicle consisted of a conical pressurized capsule (the command section) and a service module with a liquid-propellant rocket and support equipment, reflecting design heritage from earlier projects such as Project Mercury, Project Gemini, and concepts studied at Aerojet General and Pratt & Whitney. The command capsule housed flight controls, avionics from MIT Instrumentation Laboratory, life support equipment from Hamilton Standard, and an ablative heat shield derived from tests at Ames Research Center and Langley Research Center. The service module contained the Service Propulsion System developed by Rocketdyne, cryogenic tanks and fuel cells supplied by Curtiss-Wright and General Electric, and radiators and thermal control hardware influenced by work at Marshall Space Flight Center. The structural design used aluminum alloys and honeycomb panels produced by industrial partners including Alcoa and Lockheed.

Systems and Subsystems

Propulsion centered on the Service Propulsion System main engine with backup components influenced by research at Jet Propulsion Laboratory and built by Rocketdyne. Electrical power was provided by three fuel cells that combined hydrogen and oxygen, integrating technology from General Electric and Hamilton Standard; auxiliary batteries supported reentry and emergency operations. Environmental control and life support systems were designed to recycle air and remove carbon dioxide using canisters whose chemistry built on work at University of California, Berkeley and Massachusetts Institute of Technology. Guidance, navigation, and control relied on an inertial measurement unit from Litton Industries and the Apollo Guidance Computer software developed by MIT Instrumentation Laboratory, with cockpit displays and inputs from North American Aviation and instrumentation standards influenced by NASA Johnson Space Center procedures. Communications used S-band systems coordinated with Deep Space Network ground stations and telemetry routed through Harris Corporation hardware. Thermal management combined insulation from DuPont and active radiator systems tested at Lewis Research Center.

Development and Manufacturing

Development followed contract awards in the early 1960s to North American Aviation, later merged into Rockwell International, with program management at Manned Spacecraft Center and engineering oversight from George Mueller’s Office of Manned Space Flight. Testing regimes included static-fire tests at White Sands Missile Range, structural vibration tests at Jet Propulsion Laboratory facilities, and abort tests at Wallops Flight Facility. Manufacturing drew on supply chains involving Alcoa, General Motors, Bendix, and smaller subcontractors; quality assurance used inspection protocols developed with input from National Aeronautics and Space Administration centers and military standards from Department of Defense contractors. Flight qualification integrated results from unmanned tests such as Apollo 4 and crewed shakedown missions like Apollo 7.

Operational History

The vehicle supported Earth-orbit, translunar, and lunar-orbit operations during the Apollo program including landmark missions Apollo 8, Apollo 11, Apollo 13, and subsequent lunar sorties ending with Apollo 17. It also served as the sole habitable module for Skylab crew rotations and as the United States element for rendezvous and docking with the Soyuz 19 spacecraft during the Apollo–Soyuz Test Project. Notable incidents included the in-flight explosion and orbital contingency of Apollo 13, crewed safe return procedures coordinated by flight controllers at Mission Control Center, Houston and contingency teams at Johnson Space Center and Marshall Space Flight Center. Post-flight analyses influenced safety reforms implemented by NASA management and informed policies at National Transportation Safety Board-adjacent review panels.

Missions and Variants

Variants included Block I and Block II configurations. Block I vehicles were used for early unmanned and the first crewed mission Apollo 1 (test program) and modified after the Apollo 1 fire. Block II incorporated structural, systems, and cockpit changes driven by investigations involving John H. Disher and committees convened by Robert Gilruth. Later adaptations supported Skylab with modifications for extended habitation and scientific payload accommodation, and the Apollo–Soyuz Test Project vehicle featured docking modifications compatible with the Soyuz interface negotiated between Leonid Brezhnev-era Soviet designers and NASA officials. Each mission configuration balanced mass, consumables, and avionics tailored to objectives set by Kennedy Space Center planning boards and flight dynamics teams at Ames Research Center.

Recovery, Maintenance, and Modifications

Reentry recoveries were executed by United States Navy ships and helicopters coordinated with Pacific Recovery Operations and Atlantic recovery task forces; recovered command modules were processed at facilities including Ellington Field and tested at Dryden Flight Research Center. Postflight maintenance involved nondestructive evaluation at contractor plants and refurbishment of heat shields and avionics by Rockwell International and subcontractors before reuse was precluded by mission-unique wear. Engineering changes derived from flight data were implemented through Configuration Control Boards convened at Johnson Space Center and program offices at Marshall Space Flight Center, while museum-preserved modules were later displayed at institutions such as the Smithsonian Institution, National Air and Space Museum, and Kennedy Space Center Visitor Complex.
