Saturn IB

Saturn IB

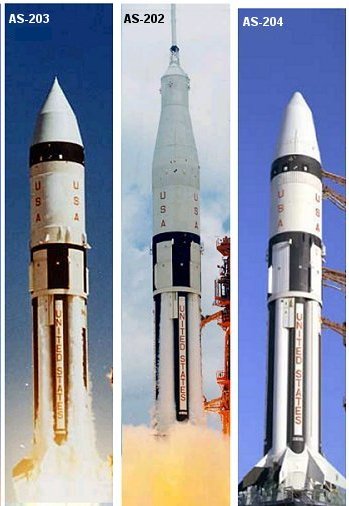

User:JustinTime55 · Public domain · source
Name	Saturn IB
Country	United States
Manufacturer	NASA / Rocketdyne / Saturn Corporation
Function	Human-rated orbital launch vehicle
Height	68 ft (20.7 m)
Diameter	33 ft (10.1 m) core
Mass	1,297,000 lb (588,000 kg)
Status	Retired
First	February 26, 1966
Last	July 15, 1975

Saturn IB The Saturn IB was an American human-rated launch vehicle developed during the 1960s to support the Apollo program and low-Earth orbit missions. It bridged the performance gap between the earlier Saturn I and the larger Saturn V, providing enhanced first-stage thrust and an uprated second stage to deliver crewed and uncrewed payloads to orbit. The vehicle played a crucial role in Apollo 7, Skylab crew transport planning, and the early Apollo–Soyuz Test Project preparations.

Development and Design

Development began under the direction of Wernher von Braun's team at the Marshall Space Flight Center and was overseen by NASA engineers collaborating with Douglas Aircraft Company and North American Aviation. The program evolved from the Juno I lineage and lessons from the Saturn I test flights, integrating propulsion advances from Rocketdyne such as the H-1 engine improvements and the S-IVB second stage modifications. Political drivers included commitments from the President of the United States and Congressional appropriations tied to the Space Race and commitments following the Mercury program and Gemini program milestones. Industrial partners included Boeing for structural elements and McDonnell Douglas for spacecraft integration work linked to the Apollo Command/Service Module.

Technical Specifications

The first stage, designated S-IB, used eight upgraded H-1 engines clustered around a central structure derived from Redstone and Jupiter missile tanking techniques; propellants were RP-1 and liquid oxygen. The second stage was an uprated S-IVB-200 with a single J-2 engine burning liquid hydrogen and liquid oxygen, adapted from the Saturn V's S-IVB-500 variant. Guidance and control depended on the Instrument Unit developed at the NASA Marshall Space Flight Center with avionics contracts awarded to IBM and flight computers influenced by earlier designs used on Apollo Guidance Computer programs. Thermal protection, structural load paths, and separation systems drew on knowledge from Mercury-Redstone 3 and Gemini-Titan II operations. The vehicle supported a payload fairing sized for the Apollo Command Module and could accommodate other payloads for Department of Defense and scientific customers.

Launch History

The Saturn IB first flew in 1966 from Launch Complex 34 and later from Launch Complex 37 at Cape Canaveral Air Force Station and Kennedy Space Center pads adapted for the Apollo stack. Early uncrewed tests validated stage separation, engine out tolerance, and guidance systems established during the Saturn I Block II enhancements. Key launches included a series of orbital verification flights, the crewed Apollo 7 mission launched from Kennedy Space Center Launch Complex 34 that validated the Apollo Command/Service Module in Earth orbit, and later support missions for Skylab and the Apollo–Soyuz Test Project preparations. Launch manifests were coordinated with North American Aviation spacecraft readiness and NASA mission planning offices.

Flight Operations and Missions

Operational roles encompassed crewed test flights, boilerplate and qualification launches, and logistical missions associated with Skylab operations. The vehicle’s reliability record supported NASA confidence in Earth-orbital checkout of the Apollo spacecraft before committing to Translunar injection operations on Saturn V flights. Missions employed crews selected through NASA Astronaut Group 3 and later groups, with mission control executed by Manned Spacecraft Center teams and flight directors such as those drawn from Flight Dynamics Division expertise. Payload integration often required coordination with contractors like Grumman and Rockwell International for docking and interface testing with Skylab and for practice rendezvous with automated targets used by Flight Support Equipment teams.

Variants and Upgrades

Planned and studied variants included uprated first-stage configurations with enhanced H-1 performance and proposals to use the S-IVB-200 to support enhanced payload capability, some concepts explored by Douglas Aircraft Company and NASA centers. Proposals surfaced during Skylab and Apollo Applications Program studies to adapt the vehicle for heavier cargo or modified mission profiles, and upgrade paths considered leveraging components from Saturn V production lines. International and military interest prompted conceptual analyses linking the design to civilian uses and Department of Defense payload options, though most upgrades remained on paper as focus shifted to shuttle-era developments at Rockwell International and Boeing.
