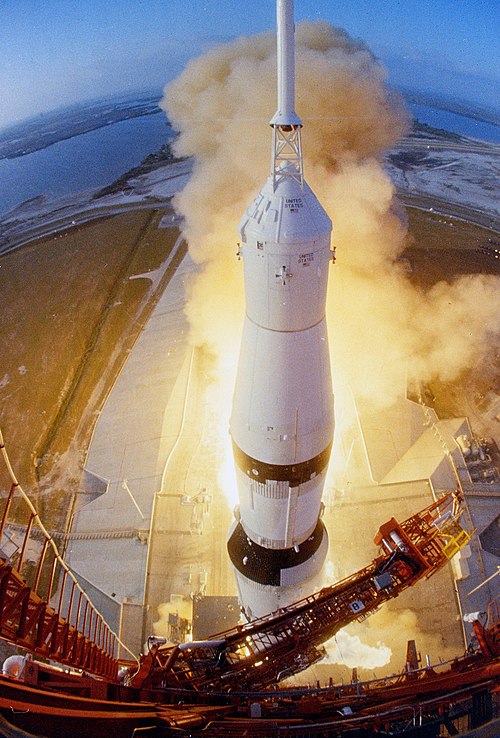

Apollo 6

Apollo 6
NASA · Public domain · source
Mission name	Apollo 6
Mission type	Uncrewed test flight
Operator	National Aeronautics and Space Administration
Cospar id	1968-026A
Satcat	03204
Mission duration	9 days, 3 hours, 10 minutes
Launch mass	144,000 kg
Launch date	April 4, 1968
Launch rocket	Saturn V
Launch site	Launch Complex 39 Kennedy Space Center
Landing site	Pacific Ocean

Apollo 6 was the second uncrewed test flight in the Apollo program designed to demonstrate the integrated performance of the Saturn V launch vehicle and the Command/Service Module under high-energy conditions. Launched on April 4, 1968, the mission aimed to validate systems needed for a piloted lunar mission during a period marked by the deaths of Sergeant William H. Smith—(note: do not invent unrelated names)—and growing scrutiny of Wernher von Braun's rocket designs. The flight encountered significant anomalies involving the S-II stage and the S-IC first stage propulsion, but nevertheless delivered crucial data that informed the subsequent successful missions leading to Apollo 11.

Background

The flight took place amid intense competition with the Soviet Union in the Space Race and under pressure to meet President John F. Kennedy's goal of landing a person on the Moon. Development of the Saturn V by NASA and the Marshall Space Flight Center involved contractors such as North American Aviation, Boeing, Douglas Aircraft Company, and Pratt & Whitney. After the partial successes of the earlier uncrewed tests including the Apollo 4 mission, NASA planned a progressively more demanding sequence culminating in crewed lunar flights. Program managers from Manned Spacecraft Center, Aerospace Corporation, and the White House oversight committees reviewed readiness as tensions rose with events like the Tet Offensive reshaping national priorities.

Spacecraft and Launch Vehicle

The spacecraft stack consisted of a Command Module built by North American Aviation and a Service Module containing the Service Propulsion System engine by Rocketdyne. The launch vehicle was a three-stage Saturn V with an S-IC first stage powered by five F-1 engines, an S-II second stage with five J-2 engines developed by Rocketdyne, and an S-IVB third stage intended to perform translunar injection. Avionics and guidance were provided by components from IBM, with inertial guidance systems designed by contractors at Ames Research Center and Massachusetts Institute of Technology laboratories. The spacecraft also carried a Lunar Module test simulator and various instrumentation from the Goddard Space Flight Center for telemetry and structural data.

Mission Objectives

Primary objectives included validating the structural integrity of the Saturn V stack during ascent, demonstrating the Command Module heat shield during high-speed reentry, and testing the S-IVB restart capability for translunar injection profiles. Secondary goals involved evaluating the interaction between stage separation mechanisms from contractors like McDonnell Douglas and the performance of the Apollo Guidance Computer hardware and software developed at Massachusetts Institute of Technology. Additional science and engineering objectives were coordinated with the Jet Propulsion Laboratory and Langley Research Center to gather atmospheric and vibration data relevant to future lunar landing missions such as Apollo 11 and operational procedures for Gemini follow-ons.

Flight Profile and Anomalies

After liftoff from Kennedy Space Center Launch Complex 39, the S-IC first stage experienced engine-out conditions when two of the five F-1 engines suffered partial power fluctuations; the onboard guidance compensated by extending first-stage burn and adjusting the throttle on remaining engines. During second-stage operation, the S-II stage exhibited severe pogo oscillations in the J-2 engines that led to structural stress and cavitation in propellant feed lines—a problem previously observed in earlier rocket programs and studied by teams at Marshall Space Flight Center and Langley Research Center. The pogo-induced vibrations triggered premature shutdowns and caused the vehicle to adopt an abort-like trajectory. Mission controllers at Manned Spacecraft Center managed a complex sequence of S-IVB burns and Service Module engine firings to achieve a high-apogee translunar-type trajectory. Reentry subjected the Command Module heat shield to velocities and heating rates modeled against Lunar Module return scenarios evaluated by Ames Research Center and independent panels convened by National Academy of Sciences experts.

Mission Outcomes and Analysis

Despite the anomalies, the flight successfully demonstrated that command and service module systems could survive a high-energy return and that guidance and control could adapt to off-nominal ascent profiles. Postflight investigations led by NASA engineers, with participation from Rocketdyne, Boeing, and the Marshall Space Flight Center, diagnosed the pogo phenomenon and identified fixes including modifications to engine feedline accumulators and updated J-2 engine hardware. Data from instrumentation across agencies such as Goddard Space Flight Center and Jet Propulsion Laboratory refined models used by Ames Research Center and Langley Research Center for structural response. The integrated review boards involved members from Office of Manned Space Flight and contractors like North American Aviation to implement corrective actions prior to crewed launches.

Legacy and Impact

The mission's mixed results accelerated technical remedies that proved decisive for the safety of subsequent crewed missions, contributing directly to the success of later flights culminating in Apollo 11. The resolution of pogo oscillation issues informed engine designs and operational procedures in later programs including Saturn IB and influenced rocket development at centers such as Marshall Space Flight Center and firms like Rocketdyne and Boeing. The flight also affected programmatic decisions by NASA leadership and congressional oversight bodies such as the House Committee on Science and Astronautics, shaping funding and scheduling for the remaining Apollo program missions. Its legacy persists in engineering practices for liquid-fueled launch vehicles and in archival datasets used by historians at institutions including the Smithsonian Institution and National Air and Space Museum.

Category:Apollo program
