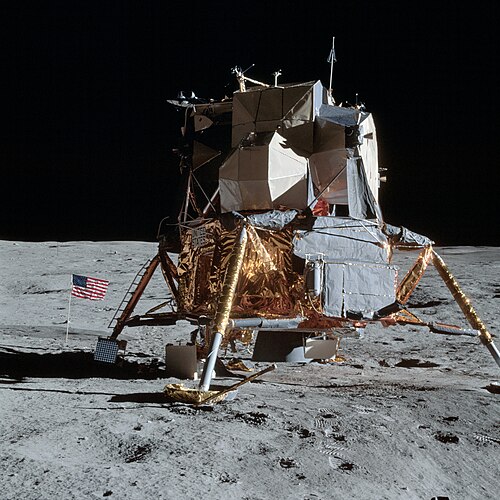

NASA · Public domain · source
Name	Lunar Module
Role	Lunar lander
Manufacturer	Grumman Aircraft Engineering Corporation
Country	United States
Program	Apollo program
First	Apollo 9
Last	Apollo 17
Launches	15
Status	Retired

Apollo Lunar Module The Lunar Module was a two-stage crewed lunar lander developed for the Apollo program to transport astronauts from lunar orbit to the surface and back to the Command/Service Module. Designed and built by Grumman Aircraft Engineering Corporation for the National Aeronautics and Space Administration, the vehicle was first flown on Apollo 9 and achieved the first crewed lunar landing with Apollo 11. The vehicle’s unique descent and ascent stages, docking interfaces, propulsion systems, and life-support accommodations enabled multiple surface missions that influenced later Soviet space program and Space Shuttle concepts.

Development and Design

The design emerged from competitive proposals during the 1960s between contractors such as Grumman Aircraft Engineering Corporation and alternatives proposed by teams including North American Aviation. NASA program offices including Marshall Space Flight Center, Manned Spacecraft Center, and Langley Research Center coordinated requirements derived from the Presidential Apollo program directive and input from the Apollo Applications Program. Engineers led by Grumman project managers collaborated with figures like Tom Kelly (aerospace engineer) and consulted with mission planners at Flight Research Center (NASA), integrating lessons from unmanned probes such as Surveyor program landers and the earlier crewed vehicle concepts like the Lunar Roving Vehicle studies. The LM’s modular architecture—distinct descent and ascent stages—reflected constraints imposed by the Saturn V launch vehicle, the Command/Service Module, and docking mechanisms developed with the Docking and Extraction System teams.

Technical Specifications

The Lunar Module featured a lightweight framework of aluminum alloy and honeycomb panels with a descent propulsion system designed by contractors including Rocketdyne and an ascent engine built by Bell Aerosystems subcontractors. Key specifications included a dry mass and fully fueled mass tailored to mission profiles defined by Apollo 11 through Apollo 17 flights. Avionics were supplied by firms such as IBM and Raytheon, and the guidance computer—an important innovation—was the Apollo Guidance Computer created by MIT Instrumentation Laboratory under direction from Charles Stark Draper Laboratory affiliates. Navigation relied on rendezvous radar and telemetry systems compatible with Mission Control Center at Manned Spacecraft Center and tracking support from Goldstone Observatory and the Deep Space Network.

Operational History

Operational flights began with uncrewed tests and the first crewed LM flight on Apollo 9, followed by the historic landing of Apollo 11 with crewmembers Neil Armstrong, Buzz Aldrin, and Michael Collins in orbit aboard the Command Module Columbia. The LM supported subsequent missions Apollo 12, Apollo 14, Apollo 15, Apollo 16, and Apollo 17 with progressively expanded surface capabilities, aided by the Lunar Roving Vehicle on later missions. Emergency procedures and in-flight anomalies—most notably the Apollo 13 oxygen tank failure event that involved the LM as a "lifeboat"—demonstrated the vehicle’s robustness and the coordination between Mission Control Center flight controllers and crews. Post-Apollo planning affecting projects like Skylab and proposed Apollo Applications Program derivatives considered LM technologies for broader exploration.

Crew Accommodations and Life Support

Interior layouts accommodated two astronauts in pressure cabins with environmental control provided by systems developed by contractors including Hamilton Standard and Tracor. Life-support equipment addressed oxygen supply, carbon dioxide removal with lithium hydroxide canisters, thermal control, and consumable management consistent with procedures from Gemini program training and checklists produced by Flight Crew Operations Directorate. Suits and portable life systems compatible with the LM were developed from Extravehicular Mobility Unit research and integrated with crew interfaces tested at Johnson Space Center simulators. Habitability considerations—stowage, gloveport access, and mobility—were refined across missions with input from crews such as Alan Shepard, David Scott, and Eugene Cernan.

Landing, Ascent, and Docking Systems

The LM used a throttleable descent engine for powered lunar landings and a separate ascent engine for liftoff from the surface; avionics and guidance algorithms enabled precision approaches to sites such as Mare Tranquillitatis and Hadley–Apennine. Landing gear shock absorbers, contact probes, and surface evaluation tools—used by crews on Apollo 11 and later missions for sampling and emplaced experiments like ALSEP—were part of descent planning coordinated with lunar reconnaissance data from programs like Lunar Orbiter. Docking with the Command Module employed the probe-and-drogue interface originally tested in missions following designs from the Project Gemini docking experience and verified during Apollo 10 rehearsal flights.

Modifications and Variants

Variants included mission-specific equipment changes across the Block I and Block II designations; LM Block I was an early configuration tested prior to crewed use, while Block II incorporated structural and avionics updates originating from lessons after tests involving contractors such as Northrop Corporation suppliers. Later modifications for extended stays and augmented payloads fed into conceptual studies for Lunar Base and Skylab support, and informed international designs seen in Soviet LK (spacecraft) assessments. Hardware left in lunar orbit or on the surface influenced follow-on retrieval and study efforts by agencies like Jet Propulsion Laboratory.

Legacy and Impact on Spaceflight

The Lunar Module’s engineering achievements influenced spacecraft design, rendezvous techniques, and human factors practices adopted in programs including Space Shuttle, International Space Station, and commercial lunar proposals by companies such as Lockheed Martin and Blue Origin. Educational and cultural impacts included portrayals in works like The Right Stuff and preservation of flight articles in institutions including the National Air and Space Museum and Smithsonian Institution. The LM’s innovative use of lightweight structures, descent/ascent staging, and the Apollo Guidance Computer legacy continue to inform contemporary missions by NASA, international partners such as European Space Agency, and private initiatives targeting Artemis program objectives.
