Lunar Roving Vehicle

Lunar Roving Vehicle

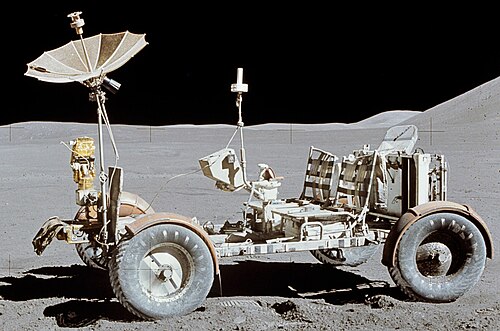

NASA/Dave Scott; cropped by User:Bubba73 · Public domain · source
Name	Lunar Roving Vehicle
Caption	Apollo 16 Commander John Young with the vehicle
Manufacturer	Boeing, Grumman Aircraft Engineering Corporation, General Motors, Delco Electronics
Production	1971
Service	1971
Length	10 ft 1 in (3.07 m)
Width	7 ft 6 in (2.29 m)
Weight	462 lb (210 kg) (deployed)
Propulsion	Electric motors powered by silver-zinc battery
Range	up to 57 km (35 mi) in lunar environment
Speed	8 mph (13 km/h)

Lunar Roving Vehicle was an electrically driven, four-wheeled rover used on the Moon during the later crewed Apollo program missions. Designed to extend the range of astronaut exploration during Apollo 15, Apollo 16, and Apollo 17, the vehicle enabled larger geological traverses, increased sample return, and deployed instruments for the Apollo Lunar Surface Experiments Package. Its development involved aerospace primes and automotive firms to address unique challenges of the lunar surface, extreme temperatures, and vacuum operations.

Development and Design

The rover originated as a response to mission planning in the late 1960s within NASA and the Manned Spacecraft Center to support extended sortie and stay times on Mare Imbrium and Taurus–Littrow landing sites. Design leadership was shared between contractors including Boeing and Grumman Aircraft Engineering Corporation with systems contributions from General Motors and Delco Electronics. Program oversight linked project offices at Marshall Space Flight Center and Kennedy Space Center with flight crew input from astronauts such as David Scott, James Irwin, John Young, and Eugene Cernan. Engineering objectives demanded lightweight stowable structure, reliable electric drive, and fail-safe steering—resolved through a folding aluminum alloy chassis, four independent drive motors, and a front/rear steering matrix informed by rover work at Jet Propulsion Laboratory testbeds.

Prototyping and testing occurred at both terrestrial analog sites and vacuum thermal chambers at Ames Research Center and Lewis Research Center (later Glenn Research Center). The vehicle’s design reconciled automotive principles from General Motors with aerospace materials technology from Boeing and structural trade-offs learned from predecessors like the X-15 and crewed spacecraft avionics developed by Honeywell and Raytheon subcontractors. Safety reviews engaged the Office of Manned Space Flight and flight operations planners from Mission Control Center at Manned Spacecraft Center.

Technical Specifications

The rover employed a modular chassis fabricated from aluminum alloy and titanium components developed with metallurgical inputs from DuPont and Alcoa. Each wheel housed a brushless DC motor with built-in reduction gearing supplied by Delco Electronics, powered by two silver-zinc battery packs similar in chemistry to those used by Skylab systems. The control system integrated guidance cues from the astronauts and inertial references used in navigation research at MIT and Caltech affiliated laboratories.

Navigation aids included a directional odometer, a sun compass, and procedures coordinated with the Lunar Module navigation solution from the Apollo Guidance Computer produced by MIT Instrumentation Laboratory (later Computer History Museum archives document development). Instrumentation mounts supported cameras developed by Hasselblad and television systems compatible with NASA transmission standards. Environmental qualification required survivability across temperature extremes characterized by data from the Surveyor program and lunar regolith abrasivity experiments conducted at Lockheed Martin research facilities.

Performance metrics: an operational mass of about 462 lb (deployed), a top speed near 8 mph (13 km/h), payload capacity to carry two suited astronauts plus up to several hundred pounds of tools and samples, and a nominal traverse range enabling distances up to roughly 57 km given crew profiles established by flight planners from Johnson Space Center.

Operational History

Flight-ready rovers were integrated for Apollo 15 (LRV-1), Apollo 16 (LRV-2), and Apollo 17 (LRV-3). Crew training involved simulation at Johnson Space Center mockups and field geology exercises led by scientists from Smithsonian Institution curatorial staff and geologists from US Geological Survey such as Harrison Schmitt who later flew on Apollo 17. Deployment procedures were rehearsed in lunar gravity analogs including the Neutral Buoyancy Laboratory precursors and parabolic flight sorties conducted by Air Force test squadrons.

On each mission, the rover was folded in the Lunar Module launch adapter and deployed by astronauts after egress; it enabled successive traverses that expanded surface work from short EVA sorties to multi-stop excursions. Mission timelines coordinated rover traverses with uplinked plans from Mission Control Center and on-site decisions by commanders such as David Scott and Eugene Cernan.

Mission Performance and Scientific Contributions

Operationally, the rover multiplied the effective sampling and instrument deployment area for each mission, enabling retrieval of stratigraphically diverse samples and emplacement of long-baseline experiments for the Apollo Lunar Surface Experiments Package including the Lunar Surface Gravimeter and Passive Seismic Experiment. Rover-enabled geology traverses yielded key samples—such as highland anorthosites and mare basalts—central to lunar origin hypotheses debated across institutions like Caltech, MIT, and Smithsonian Institution researchers. Navigation data and traverse mapping improved understanding of regolith mechanics, contributing to engineering studies at Jet Propulsion Laboratory and scientific modeling at Stanford University.

Telemetric records informed battery performance models used by later space habitat planners at NASA and influenced designs for planetary rovers developed by European Space Agency and Roscosmos agencies. The rover’s public demonstrations and televised traverses increased public engagement with Apollo science and astronaut field geology taught in university courses at institutions such as University of Arizona and Brown University.

Post-mission Disposition and Legacy

Each flight vehicle remains on the lunar surface near its respective landing site, preserved as historical artifacts in situ alongside Lunar Module descent stages and scientific emplacements. Back on Earth, engineering documentation, training mockups, and leftover components were archived at centers including Smithsonian Institution’s National Air and Space Museum and the NASA Johnson Space Center collections. The rover’s design legacy influenced subsequent mobile exploration programs including the Mars Pathfinder Sojourner rover, Mars Exploration Rover program, and conceptual crewed surface mobility studies for Artemis planning teams.

Recognition of the vehicle’s cross-industry collaboration appears in historical accounts from NASA History Office and retrospectives authored by key participants like William Anders and engineers at Boeing and General Motors. The in-place artifacts are subjects of contemporary discussions regarding preservation under principles advocated by organizations such as UNESCO and heritage committees at International Astronomical Union.
