Apollo 10

Apollo 10
Public domain · source
Name	Apollo 10
Mission type	Crewed lunar reconnaissance
Operator	National Aeronautics and Space Administration
Mission duration	8 days, 0 hours, 3 minutes, 23 seconds
Launch mass	95231 lb
Launch date	May 18, 1969
Launch vehicle	Saturn V
Launch site	Kennedy Space Center
Landing date	May 26, 1969
Landing site	Pacific Ocean

Apollo 10 Apollo 10 was a crewed NASA lunar mission that performed a full dress rehearsal for the first crewed landing by conducting a near-lunar landing descent and ascent without touching down. The flight validated procedures, navigation, and hardware for Apollo 11 by operating a Command/Service Module and a separate Lunar Module in lunar orbit near the Moon's surface. The mission linked the development work at Manned Spacecraft Center with operational experience at Cape Canaveral Air Force Station and informed later missions including Apollo 11 and Apollo 12.

Background and objectives

The mission followed the successes of Apollo 8 and Apollo 9, with objectives set by NASA leadership including James E. Webb and program managers such as George M. Low. Primary goals included validating the Lunar Module's performance in lunar orbit, testing rendezvous and docking procedures proven during Gemini flights, and qualifying the descent and ascent profiles that would be used by Apollo 11. Secondary objectives connected to instrumentation from contractors like Grumman and avionics supplied by North American Rockwell. The mission fit within the larger context of the Space Race and the political timetable promoted by President Richard Nixon and predecessors from John F. Kennedy's administration.

Spacecraft and crew

The mission used a Saturn V rocket, a Command/Service Module named "Charlie Brown" built by North American Aviation, and a Lunar Module named "Snoopy" built by Grumman Aerospace Corporation. The prime crew consisted of Commander Thomas P. Stafford, Command Module Pilot John W. Young, and Lunar Module Pilot Eugene A. Cernan. Stafford and Cernan would operate the LM during the descent rehearsal while Young remained in the CM in lunar orbit. The flight hardware incorporated guidance from the MIT Instrumentation Laboratory's guidance computer architecture, telemetry managed through Manned Spaceflight Center communications, and life-support elements from Hamilton Standard.

Mission timeline

Launched on May 18, 1969, from Kennedy Space Center aboard Saturn V SA-505, the mission executed translunar injection, lunar orbit insertion, and separation of the Lunar Module from the Command/Service Module. The crew performed a series of burns including the descent orbit insertion and ascent engine firings while operating near the Sea of Tranquility and other lunar landmarks first photographed by Lunar Orbiter missions. After a close approach to the lunar surface, the LM rendezvoused and docked with the CM; the spacecraft later performed transearth injection and reentered over the Pacific Ocean, where recovery was conducted by elements of the United States Navy including USS Princeton (CV-37).

Flight operations and Lunar Module descent

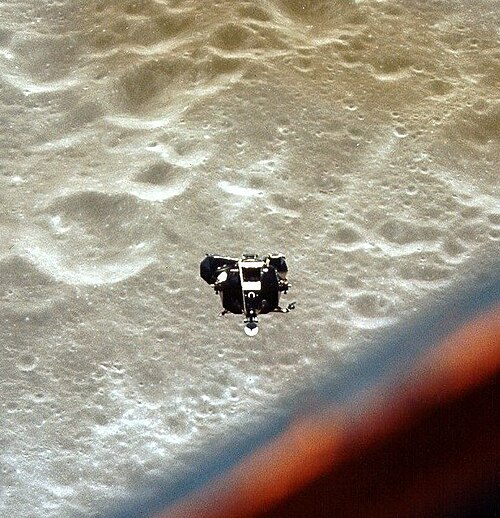

During the operation, the LM descended to within roughly 15.6 kilometers of the lunar surface, executing powered descent and ascent profiles that simulated landing and liftoff. Stafford and Cernan tested guidance and navigation procedures derived from the Apollo Guidance Computer algorithms and used visual landmarks such as Mare Tranquillitatis and Fra Mauro for navigation cues later used for site selection. The LM's communications, rendezvous radar, and reaction control systems were exercised; simultaneous operations required coordination between the CM pilot Young and ground controllers in the Mission Control Center at Manned Spaceflight Center. The crew encountered unexpected telemetry and a brief control-loop oscillation, which was managed using procedures developed after analysis by engineers at Grumman and MIT, demonstrating system robustness similar to issues resolved during Gemini VII and Gemini VIII.

Scientific and technical results

Apollo 10 yielded critical engineering validation of the LM descent engine, ascent engine, guidance, navigation, and docking systems, directly enabling the selection of procedures used by Apollo 11. Photography from the CM and LM provided high-resolution imaging of candidate landing sites, augmenting data from Lunar Orbiter and supporting geologic interpretation tied to lunar stratigraphy studied by scientists from institutions such as NASA Goddard Space Flight Center and Jet Propulsion Laboratory. Instrumentation tests improved understanding of spacecraft environmental control systems developed by contractors like Hamilton Standard and reliability analysis used by Rockwell International. The mission also refined reentry trajectories and recovery operations involving United States Navy and Marine Corps assets.

Legacy and cultural impact

Apollo 10 stands as the penultimate crewed rehearsal that directly preceded the historic Apollo 11 landing, influencing public perception shaped by media organizations including NBC and The New York Times. The crew—Stafford, Young, and Cernan—gained prominence in aerospace circles and later roles at organizations such as U.S. Air Force and NASA leadership; Young later commanded STS-1 for Space Shuttle operations. Artifacts from the mission are curated by museums including the Smithsonian Institution National Air and Space Museum and the Science Museum collections, while the mission's procedures informed subsequent Skylab and Space Shuttle program developments. Culturally, Apollo 10 contributed to Cold War-era narratives involving United States technological achievement and competition with the Soviet Union, and it remains a focal point in documentaries and histories produced by authors and filmmakers exploring the Space Race.

Category:Apollo program missions
