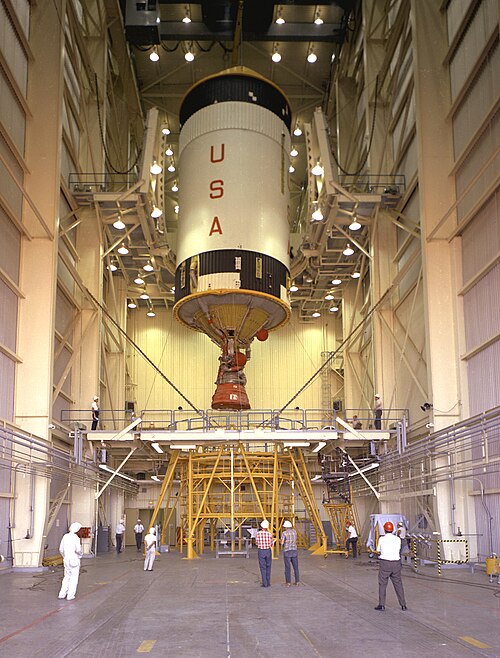

Saturn S-IVB

Saturn S-IVB
NASA · Public domain · source
Name	S-IVB
Role	Upper stage
Country	United States
Manufacturer	Boeing
First flight	1966
Status	Retired
Used on	Saturn I (as S-IVB on later), Saturn IB, Saturn V
Fuel	Liquid hydrogen and liquid oxygen
Engine	J-2
Thrust	200000 lbf (890 kN) (vac)

Saturn S-IVB The S-IVB was an American cryogenic upper rocket stage developed in the 1960s for use on Saturn I, Saturn IB, and Saturn V launch vehicles. It served as a single-engine second or third stage that enabled Earth orbit insertion, translunar injection, and large payload deployment for projects such as Apollo program, Skylab, and various uncrewed missions. The stage linked work by industrial contractors, NASA centers, and aerospace suppliers during the era of Space Race competition with the Soviet Union.

Development and design

Development began under contracts issued by NASA centers including Marshall Space Flight Center and involved industrial primes such as Douglas Aircraft Company and Boeing. The design evolved from lessons in earlier stages like the S-IV and incorporated the cryogenic propellant technologies developed for programs including Centaur. The S-IVB used a single J-2 engine originally produced under license by contractors to provide high specific impulse with liquid hydrogen and liquid oxygen, paralleling engine work on programs like RL10 and influenced by turbopump advances from Rocketdyne. Structural methods borrowed from airframe practice at Douglas Aircraft Company and manufacturing techniques refined at North American Aviation facilities. Systems integration drew on avionics and guidance contributions from MIT Instrumentation Laboratory and communications links coordinated with Manned Spacecraft Center (later Johnson Space Center).

Technical specifications

The S-IVB measured approximately 17.8 meters in length and used a common bulkhead tankage configuration similar to concepts used by Centaur and inspired by cryogenic work at Ames Research Center. Propellant was cryogenic liquid hydrogen and liquid oxygen stored in aluminum alloy tanks made using processes developed by Alcoa and inspected with nondestructive testing techniques promoted by American Institute of Aeronautics and Astronautics. The single J-2 engine produced about 200,000 pounds-force vacuum thrust and used ignition systems comparable to those in the Saturn I second-stage program. Attitude control utilized reaction control systems and guidance computers evolved from work at MIT Instrumentation Laboratory, interfacing with tracking by Goldstone Deep Space Communications Complex and telemetry standards defined by NASA Deep Space Network. Thermal control, ullage systems, and structural dynamics drew on test data from facilities at Marshall Space Flight Center and wind tunnel testing at Langley Research Center.

Operational history

Operational flights began in the mid-1960s with early missions launched from Cape Kennedy / Cape Canaveral Space Force Station and supported by ground infrastructure at Kennedy Space Center. The S-IVB performed critical roles in Earth orbit insertion for Skylab and provided translunar injection burns for crewed Apollo 11, Apollo 12, Apollo 13, and subsequent Apollo missions. Some S-IVB stages were intentionally placed into heliocentric or heliocentric-recycling trajectories following burns, contributing to later discoveries when identified by surveys such as those run by Jet Propulsion Laboratory and observers at Palomar Observatory. Operational anomalies were investigated by teams including engineers from Boeing, Douglas Aircraft Company, and NASA’s George C. Marshall Space Flight Center, producing modifications adopted for later flights. Recovery and tracking efforts engaged assets from United States Navy for capsule recovery and coordination with range safety overseen by Eastern Test Range.

Modifications and variants

Variants included versions optimized for use as a second-stage on Saturn IB and as a third-stage on Saturn V, with structural, propellant, and avionics differences reflecting mission requirements for Apollo program lunar flights versus low Earth orbit missions such as Skylab. Planned but unrealized conversions considered reuse for proposed programs like Apollo Applications Program and studies by National Aeronautics and Space Administration teams exploring repurposing for space station logistics. Modifications addressed issues such as in-space restart capability, insulation improvements derived from work at Lewis Research Center (later Glenn Research Center), and integration of umbilicals and separation systems refined with suppliers including McDonnell Douglas and Boeing subcontractors.

Manufacturing and testing

Manufacture involved facilities operated by Douglas Aircraft Company and later Boeing, with major subcontractors in the United States aerospace industrial base such as Alcoa, Convair legacy vendors, and specialized suppliers for cryogenic valves and turbomachinery. Static firings of the J-2 engine and full-stage tests occurred at test stands at Marshall Space Flight Center and at engine test complexes used by Rocketdyne. Acceptance testing included vibration testing at laboratories affiliated with National Bureau of Standards (now National Institute of Standards and Technology) methodologies and modal analysis techniques from Ames Research Center. Quality assurance employed standards influenced by the Military-Industrial Complex procurement practices of the era and inspection regimes used by NASA procurement offices.

Legacy and impact on spaceflight

The S-IVB influenced later upper-stage designs including derivatives in proposals by Douglas Aircraft Company and informed cryogenic handling practices adopted by stages such as Centaur and future Delta IV upper stages developed by United Launch Alliance partners. Lessons from S-IVB operational experience fed into programs at Jet Propulsion Laboratory, design curricula at Massachusetts Institute of Technology, and systems engineering approaches at NASA centers. Surviving S-IVB hardware is preserved and displayed at museums including Smithsonian National Air and Space Museum, U.S. Space & Rocket Center, and Kennedy Space Center Visitor Complex, informing public understanding of the Apollo program and mid‑20th century aerospace industrial capabilities. The stage’s role in enabling lunar missions remains a milestone in the history of space exploration and a reference point for modern heavy-lift and upper-stage development efforts by organizations such as SpaceX and Blue Origin.
