RL10

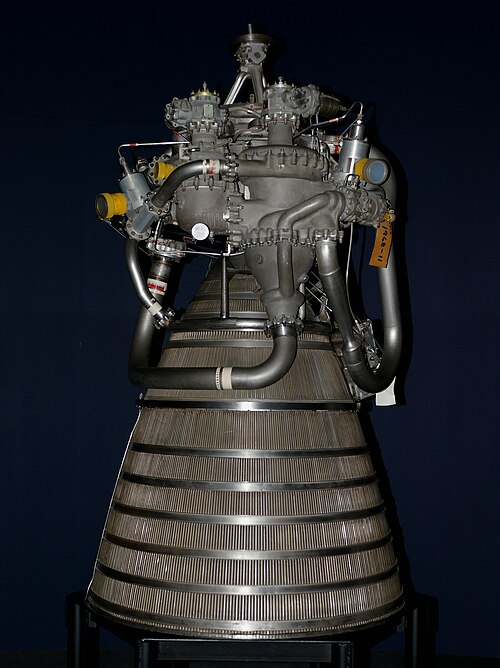

RL10
Les Chatfield · CC BY 2.0 · source
Name	RL10
Country of origin	United States
Manufacturer	Pratt & Whitney, Aerojet Rocketdyne
First flight	1963
Status	In service
Type	Cryogenic upper-stage engine
Fuel	Liquid hydrogen
Oxidizer	Liquid oxygen
Cycle	Expander cycle / Gas-generator variants
Thrust vac	66–110 kN
Isp vac	440–470 s

RL10

The RL10 is a family of American cryogenic upper-stage rocket engines developed for efficient orbital insertion and space missions. It has powered a range of launch vehicles and space programs, providing high specific impulse for upper-stage maneuvers, satellite deployment, and deep-space missions. The engine series has been developed and produced by contractors associated with Pratt & Whitney, General Dynamics, Aerojet Rocketdyne, and integrated into vehicles from United Launch Alliance and historical programs such as Centaur (rocket stage), Saturn I derivatives, and others.

Development and Design

Development began under contracts administered by United States Air Force and later by National Aeronautics and Space Administration programs seeking high-efficiency cryogenic propulsion for upper stages. Early work involved aerospace firms including Rocketdyne and Pratt & Whitney with design influences from contemporaneous efforts like the RL‑V concept and the cryogenic stages used on the Saturn I and Centaur (rocket stage). Engineering goals emphasized high specific impulse, restart capability, throttleability, and low mass for stages used on orbital insertion and interplanetary injection missions administered by Cape Canaveral Space Force Station, Kennedy Space Center, and contractors serving Department of Defense launches.

The basic design uses liquid hydrogen and liquid oxygen with variants employing an expander cycle where heat from the combustion chamber and nozzle is used to drive turbines, enabling high efficiency; other subvariants used gas-generator or staged approaches for increased thrust. Structural materials and turbomachinery were influenced by advances from firms such as Hamilton Standard and Boeing programs, while manufacturing techniques paralleled developments in the Apollo program and later industrial consolidation under United Technologies Corporation.

Technical Specifications

Typical technical characteristics include combustion chamber pressures, thrust in vacuum measured in the tens of kilonewtons, and vacuum specific impulse in the mid-400 seconds range; specific numbers vary with variant. The engine employs a regeneratively cooled or heat-exchange-cooled nozzle, turbopumps for liquid hydrogen and liquid oxygen, and pyrotechnic or ignition systems for multiple restarts. Manufacturing tolerances and flow-path designs were shaped by turbine technology development linked to companies like General Electric and materials research conducted at labs associated with Massachusetts Institute of Technology and Caltech collaborations supporting aerospace contractors.

Propellant feed systems integrate propellant management devices influenced by experience from the Gravity Probe B and cryogenic handling practices at facilities such as Stennis Space Center and flight-qualification testing at government and industry test stands. Control electronics and flight instrumentation reflect standards set by prime integrators on projects like Atlas V and Delta IV.

Operational History

The engine family entered flight service in the 1960s on upper stages used for military and civil space missions, supporting payload launches from sites including Cape Canaveral Space Force Station and Vandenberg Space Force Base. It has been used on stages that placed communications and reconnaissance satellites operated by Intelsat, Arianespace partners, and Department of Defense payloads into geostationary transfer orbit. Notable program associations include the Centaur (rocket stage) flights, integration into expendable launch vehicles operated by entities such as United Launch Alliance and predecessor companies like General Dynamics and Martin Marietta.

The RL10 has supported mission profiles requiring multiple restarts for complex orbital insertions and transplanetary injections, with flight histories encompassing reliability assessments by agencies including NASA and repeat use across decades. Its operational record influenced selection in competitive procurements involving boosters like Atlas V and future vehicle studies by organizations such as Blue Origin and SpaceX for upper-stage integration options.

Variants and Upgrades

Multiple variants offer differing thrust levels, nozzle expansions, and cycle implementations. Upgrades over time involved increased chamber pressures, extended nozzle lengths for higher Isp, and improved turbopump designs. Industrial transitions saw manufacturing moved among Pratt & Whitney Rocketdyne, Aerojet Rocketdyne, and subcontractors with heritage from Hamilton Standard and Rocketdyne programs, each introducing metallurgical and cooling improvements derived from research at institutions like California Institute of Technology and Massachusetts Institute of Technology.

Later improvements targeted throttle capability, restart reliability, and adaptation to new stage interfaces used on vehicles developed by United Launch Alliance, Blue Origin, and other launch providers. Evolution included variants with enlarged heat exchangers, altered injector patterns, and modernized control electronics consistent with avionics practices from Rockwell Collins and flight-computer suppliers used in contemporary launch systems.

Applications and Launch Vehicles

The engine family has been applied on upper stages for vehicles such as Centaur (rocket stage), the upper stages of the Atlas V, upper-stage concepts for the Delta IV, and studies for future stages by companies like Blue Origin. It has supported government satellite deployments for agencies including NASA, United States Air Force, and commercial operators like Intelsat and SES S.A.. Launch sites include Cape Canaveral Space Force Station, Vandenberg Space Force Base, and international partnerships through contractors providing payload integration services to organizations such as Arianespace.

Performance and Reliability

Performance metrics emphasize high vacuum specific impulse, multiple restart capability, and low dry mass for upper-stage applications. Reliability over decades of operation has been a key selling point in procurement decisions by NASA and military customers, with engine variants tested extensively at facilities such as Stennis Space Center and evaluated in flight on launchers by United Launch Alliance. Operational availability and demonstrated flight heritage have continued to factor into choices for missions requiring precise orbital insertion and long-duration coast phases, informing selection by agencies like National Reconnaissance Office and commercial satellite operators.
