Northbridge

Northbridge

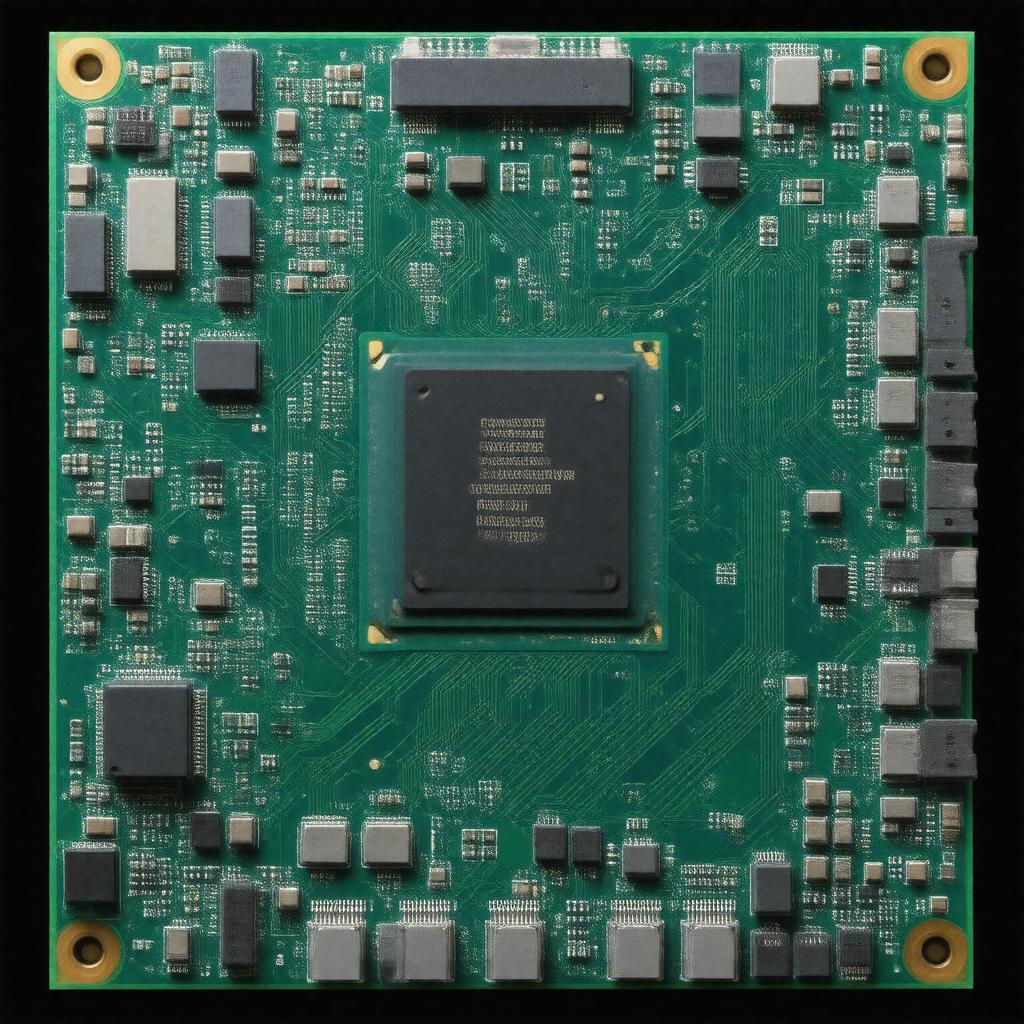

AI-generated (Stable Diffusion 3.5) · CC BY 4.0 · source
Name	Northbridge
Type	Chipset component
Introduced	1990s
Predecessor	Front-side bus controllers
Successor	System on a chip components
Manufacturers	Intel, AMD, VIA Technologies, NVIDIA, SiS

Northbridge

Northbridge is a core chipset component that historically mediated high-speed communication among central processing unit, random-access memory, and high-performance peripherals such as PCI Express, Accelerated Graphics Port, and graphics controllers. It typically worked in concert with a companion southbridge component to provide system-level coordination for motherboard platforms used in desktop, laptop, and server computers. In many industry architectures the Northbridge function was implemented as a discrete integrated circuit on the motherboard and later absorbed into single-die solutions by vendors such as Intel and Advanced Micro Devices.

Overview

The Northbridge served as a high-performance bridge between the CPU and subsystem components including system memory, graphics processing unit, and high-speed I/O. In x86-based platforms the Northbridge often handled the memory controller interface and cache coherency links to processors designed by Intel or AMD. Platforms built around architectures from ARM Holdings or designs by Qualcomm and NVIDIA employed analogous interconnect logic implemented in different topologies. Standards and buses associated with Northbridge-era designs included Front-side bus, HyperTransport, and QuickPath Interconnect, each defining signaling and protocol for processor-to-chipset communication.

Architecture and Function

Architecturally, the Northbridge implemented controllers and arbitration for interfaces such as the Memory Controller Hub, Graphics Interface, and coherent links to multiprocessor fabrics like HyperTransport or Intel QuickPath Interconnect. It provided address and data path routing between the CPU and DRAM, mediating transactions for DDR SDRAM, DDR2 SDRAM, DDR3 SDRAM, and later memory standards. Graphics interfaces connected via AGP or PCI Express lanes routed through the Northbridge. Other supported functions included system clock generation tied to Phase-Locked Loop circuitry, support for AGP 8x, and sometimes integrated northbridge features such as on-die memory controllers or integrated graphics cores derived from vendors like NVIDIA or SiS.

Historical Development

The Northbridge concept emerged as microprocessor performance outpaced peripheral bus speeds, leading to split-chipset designs in platforms from Intel Pentium-era systems through the early 2000s. Early chipset architectures separated fast-path and slow-path I/O in designs pioneered by companies such as Intel Corporation, VIA Technologies, and SiS. The transition points included introduction of AGP to accelerate graphics, adoption of DDR SDRAM families, and introduction of point-to-point processor interconnects like HyperTransport by AMD and QuickPath Interconnect by Intel. Major milestones were integration of the memory controller into the CPU die in AMD Athlon 64 and later Intel Nehalem microarchitectures, which precipitated a shift away from external Northbridge components.

Manufacturers and Models

Prominent manufacturers produced a range of Northbridge chips for different market segments. Intel marketed integrated solutions under names like Intel 82855, Intel 865, and later moved to Platform Controller Hubs. AMD-centric platforms used Northbridge models from VIA Technologies and SiS as well as bespoke designs in collaboration with NVIDIA for chipsets such as the nForce series. Other suppliers included Marvel, Broadcom, and smaller vendors supplying embedded platform logic for IBM-based and custom server boards. Specific well-known models include chipset families paired with processors like the Intel Pentium 4 and AMD Athlon series.

Performance and Benchmarking

Performance of a Northbridge was measured by its memory latency, bandwidth, and ability to sustain peak throughput for graphics and I/O workloads. Benchmark suites and tests from organizations and tools such as SPEC benchmarks, PassMark, and bespoke memory latency tests highlighted differences across chipset designs. Factors influencing performance included supported memory timings for DDR standards, number of PCI Express lanes, support for multi-channel memory controllers, and quality of integrated clock and voltage regulation. In multiprocessor servers, Northbridge-like hubs had to coordinate coherency across caches for processors in systems aligned with NUMA topologies.

Integration and Decline

The decline of discrete Northbridge chips accelerated when AMD integrated the memory controller onto the CPU die with K8 architecture and when Intel adopted integrated controller features in the Nehalem family. This consolidation trend favored System on a Chip implementations found in products by Qualcomm, Apple, and NVIDIA Tegra lines, reducing the need for separate Northbridge silicon. The contemporary role of the remaining chipset logic shifted to southbridge-style Platform Controller Hubs and embedded controllers from vendors like Intel, ASMedia Technology, and Realtek.

Legacy and Modern Equivalents

Although discrete Northbridge components are rare in modern PC architectures, their functional legacy persists in integrated memory controllers, system agent blocks on CPU dies, and in the interconnect fabrics such as PCI Express root complexes. Contemporary equivalents include integrated memory and IO controllers in SoC designs by Apple Inc. and AMD, and discrete platform controller hubs used in servers by Supermicro and Dell EMC. Concepts originating from Northbridge-era design continue to influence coherence protocols, NUMA-aware operating system support like in Linux kernel and Microsoft Windows Server, and motherboard design considerations for high-performance computing and gaming platforms.
