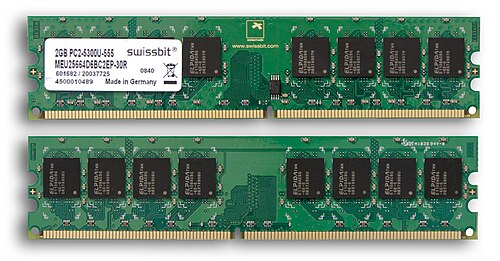

![]() An-d · CC BY-SA 3.0 · source | |
| Name | DDR2 SDRAM |
| Type | Synchronous dynamic random-access memory |
| First released | 2003 |
| Successor | DDR3 SDRAM |
| Voltage | 1.8 V |
| Transfer rate | 400–1600 MT/s |
DDR2 SDRAM DDR2 SDRAM is a type of double data rate synchronous dynamic random-access memory introduced in the early 2000s as a successor to DDR SDRAM and predecessor to DDR3 SDRAM. It was standardized to improve bandwidth and reduce power consumption for personal computers, servers, and embedded systems used by manufacturers like Intel, AMD, IBM, Micron Technology, and Samsung Electronics. DDR2 saw widespread deployment across platforms including desktop motherboards, laptop designs by Dell, HP Inc., and server systems from Sun Microsystems and Hewlett-Packard.
DDR2 emerged from collaborative efforts among industry consortia and standards bodies such as the JEDEC Solid State Technology Association, responding to demands from chipset designers at VIA Technologies, NVIDIA, and SiS as well as OEMs like Acer and Lenovo. The technology targeted improvements to memory controllers developed by teams at Intel Corporation and memory subsystem designers associated with the PCI-SIG roadmap and related platform specifications. Major integrated circuit manufacturers—Samsung Electronics, Hynix, Micron Technology, Elpida Memory, and Infineon Technologies—ramped production to meet server initiatives from Dell EMC and workstation requirements defined by Apple Inc. and Cray Inc..
DDR2 operates at an I/O voltage of 1.8 V and supports internal prefetch of four bits per clock (4n prefetch), enabling external transfer rates ranging from 400 MT/s to 1600 MT/s for modules marketed as PC2-3200 through PC2-12800. JEDEC-defined timings include CAS latency values commonly between 3 and 6 cycles and module densities spanning 128 Mb to multiple Gb per die, used by suppliers such as Samsung Electronics and Hynix. Packaging and pinouts adhere to standards that interface with motherboard sockets designed by chipset vendors Intel and AMD. Error-correcting implementations (ECC) for server-grade DIMMs align with specifications favored by Oracle Corporation and IBM POWER systems.
DDR2 retains the synchronous DRAM command set from predecessors but increases the memory core clock relative to the I/O bus, leveraging a 4-bit prefetch buffer to deliver higher effective data rates. Internal architectures reflect innovations from semiconductor R&D teams at Micron Technology and Elpida Memory that optimized bank interleaving, row buffer management, and command scheduling used in platforms from ASUS and Gigabyte Technology. Signal integrity techniques such as on-die termination and fly-by topology routing were applied in motherboards designed by Supermicro and MSI to reduce reflections and crosstalk. Memory controllers in Intel northbridges and later integrated controllers in AMD processors orchestrated refresh cycles, auto-precharge, and power-down sequences to balance latency and throughput.
Compared with DDR SDRAM used in systems from Gateway, Inc. and early IBM servers, DDR2 delivered higher bandwidth per pin at comparable or reduced voltage, while increasing CAS latency in clock cycles. When contrasted with DDR3 SDRAM developed by contributors including JEDEC members and manufacturers like Samsung, DDR2 consumed more power and offered lower peak transfer rates but remained cost-effective during its market window. Server benchmarks from SPEC and workload analyses by TPC and enterprise vendors showed DDR2 provided tangible gains for multi-threaded applications on platforms from HP Enterprise and Dell EMC, though latency-sensitive tasks often favored higher-frequency DDR3 later on.
DDR2 modules were produced in multiple form factors: UDIMM, RDIMM, SODIMM, and FB-DIMM variants for enterprise systems. Laptop SODIMM modules used by Lenovo and Acer conformed to smaller PCB footprints, while registered and buffered DIMMs targeted enterprise motherboards from Supermicro and server lines at IBM and Dell EMC. JEDEC-issued part numbering and SPD (Serial Presence Detect) EEPROM layouts allowed BIOS and firmware from vendors like AMI and Phoenix Technologies to enumerate timings. Module speed grades were labeled PC2-3200, PC2-4200, PC2-5300, PC2-6400, etc., reflecting marketed throughput by retailers such as Newegg and distributors like Arrow Electronics.
Development traces to late 1990s and early 2000s specifications work within JEDEC and collaborative efforts among memory vendors including Samsung Electronics, Hynix, Micron Technology, and Infineon Technologies. Early demonstrations appeared alongside chipset launches from Intel and memory controller enhancements proposed by AMD engineers. Major product rollouts coincided with platform introductions such as Intel's 915 and 945 series chipsets and server platforms from HP and Sun Microsystems, driving ecosystem support from BIOS vendors AMI, motherboard makers ASUS, and OEMs like Dell.
DDR2 achieved broad adoption across consumer desktops, notebooks, and entry-level servers, supported by supply chains involving Foxconn and distribution channels like Amazon (company) and CDW. It bridged technology transitions between DDR and DDR3, influencing design practices at motherboard vendors ASRock and memory manufacturers Corsair, Kingston Technology, and G.Skill. In legacy deployments, DDR2 modules remain in service in embedded appliances and industrial systems from Siemens and Schneider Electric, and they continue to inform DRAM evolution tracked by standards bodies including JEDEC and market analyses from IDC and Gartner.
