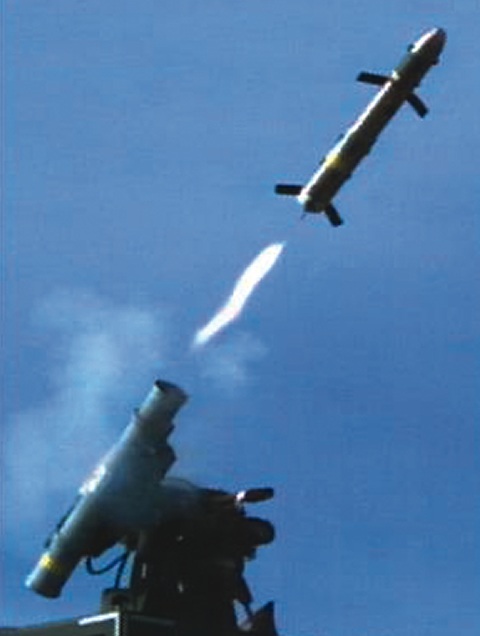

AGM-176 Griffin

AGM-176 Griffin
Unknown author · Public domain · source
Name	AGM-176 Griffin
Origin	United States
Type	Air-to-surface missile
Manufacturer	Raytheon
Service	2009–present
Weight	~45 kg (warhead variants vary)
Length	~1.8 m
Diameter	~127 mm
Filling	Blast-fragmentation / warhead options
Guidance	GPS/INS, laser, semi-active laser, imaging seekers (varies)
Launch platforms	Aircraft, helicopters, unmanned aerial vehicles, naval craft

AGM-176 Griffin is a precision-guided, small air-to-surface and surface-to-surface guided munition developed by Raytheon for low-collateral engagements. It was designed to be compatible with a wide range of launch platforms including fixed-wing aircraft, rotary-wing aircraft, unmanned aerial vehicles, and naval vessels, emphasizing modular guidance and warhead packages. The weapon entered U.S. service in the late 2000s and has been used in counterterrorism, special operations, and littoral engagements.

Development

The weapon originated from Raytheon programs influenced by requirements from the United States Air Force, United States Navy, and United States Special Operations Command seeking a precision, low-collateral alternative to larger munitions such as the AGM-114 Hellfire and the GBU-12 Paveway II. Initial development involved testing with platforms like the MQ-9 Reaper, MQ-1 Predator, AH-64 Apache, and the F-16 Fighting Falcon. Early demonstrations occurred alongside procurement engagements with Defense Advanced Research Projects Agency, Naval Air Systems Command, and Air Force Research Laboratory representatives present. Operational interest was driven by lessons from conflicts in Iraq War, War in Afghanistan (2001–2021), and counterinsurgency operations in the Global War on Terrorism.

Raytheon leveraged technologies previously matured in programs such as the Joint Direct Attack Munition and the Small Diameter Bomb to yield a compact, precision-guided munition. Testing cycles included captive-carry flights, laser-guided seeker validation, and integration trials with the General Atomics flight decks and Lockheed Martin mission systems. Procurement pathways involved the U.S. defense acquisition processes and coordination with agencies including the Defense Security Cooperation Agency for potential foreign military sales.

Design and Specifications

The Griffin is a modular weapon system featuring interchangeable guidance modes: GPS/INS, semi-active laser homing compatible with designators such as the AN/ASQ-228 ATFLIR, and imaging seekers akin to systems in the AGM-176 family design lineage. The airframe uses lightweight composites and a control surface arrangement permitting carriage on external stations of aircraft like the A-10 Thunderbolt II and integration with pods on platforms such as the Sikorsky UH-60 Black Hawk. The warhead is a blast-fragmentation package tuned for reduced collateral effects compared with heavier ordnance like the AGM-65 Maverick.

Performance parameters include a range dependent on launch altitude and speed, with surface-launched variants offering maritime engagement reach. The design prioritizes compatibility with avionics suites from suppliers such as Northrop Grumman and Honeywell International to facilitate integration with mission computers used on platforms including the Boeing F/A-18E/F Super Hornet, Eurofighter Typhoon, and Dassault Rafale.

Variants

A family of variants expanded the original design into air-launched and surface-launched forms, including versions adapted for shipboard use on Mark 41 Vertical Launching System-equivalent modules and for integration with small unmanned surface vessels. Laser-guided variants matched with targeting pods like the LITENING targeting pod broadened use across NATO aircraft inventories, while GPS/INS variants provided all-weather capability employed by operators such as the Royal Air Force and Israeli Air Force in evaluations. Specialized warhead and seeker combinations were trialed with partners including General Dynamics and BAE Systems for unique mission profiles.

Operational Use

Operational employment focused on precision strikes against high-value individuals, lightly armored vehicles, and maritime small craft. Deployments were coordinated with units such as United States Central Command, Special Operations Command Europe, and carrier strike groups led by flagship vessels like USS George H.W. Bush (CVN-77) during littoral operations. The weapon’s low-collateral profile made it suitable for urban engagements in theaters monitored by organizations such as NATO and multinational coalitions operating from bases including Al Udeid Air Base and Camp Bastion.

Integration with unmanned platforms enabled persistent ISR-to-shooter loops combining sensors from AN/APY-10 and mission systems by Raytheon Technologies affiliates. Logistics and sustainment employed supply chains tied to corporations like Lockheed Martin and Orbital ATK for component provisioning.

Operators

State and non-state actors acquired the system through direct procurement, security assistance, and foreign military sales administered by the Defense Security Cooperation Agency. Documented and reported operators included branches of the United States Armed Forces, select NATO members such as United Kingdom, France, and Italy during evaluations, and regional partners in the Middle East and Asia-Pacific under bilateral agreements. Industry partnerships and licensed production discussions involved firms in Canada, Australia, and Israel for localized support and training.

Combat History

The weapon saw combat in counterterrorism operations during the Iraq War and the War in Afghanistan (2001–2021), employed in precision engagements conducted by U.S. special operations and coalition air assets. Maritime variants were used in interdiction patrols in the Gulf of Aden and Strait of Hormuz to neutralize fast attack craft threats. Engagements were often coordinated with intelligence from collectors like Northrop Grumman RQ-4 Global Hawk and strike packages that included Boeing EA-18G Growler electronic support. After-action assessments were reviewed by organizations such as the Congressional Research Service and operational commanders in theater to refine tactics, techniques, and procedures.

Survivability and Countermeasures

Survivability considerations emphasized reduced detectability at launch due to small cross-section and low signature. Counter-countermeasure capabilities included robust GPS/INS inertial navigation to mitigate jamming by systems like those fielded in regional conflicts and semi-active laser guidance to defeat certain electronic warfare approaches used by actors employing equipment from suppliers such as Krasnyy Oktyabr and others. Defensive measures against interceptors and decoys incorporated tactics developed from studies by RAND Corporation and Center for Strategic and International Studies analysts, with fielded doctrine adjusted by commands including USAF Special Operations Command to leverage stand-off launch employment and platform survivability enhancements.
