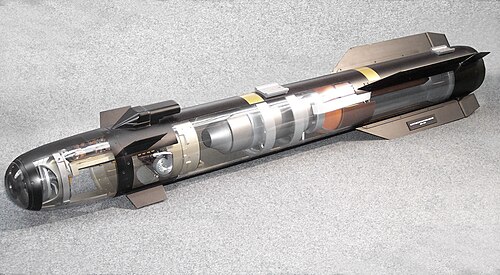

AGM-114 Hellfire

AGM-114 Hellfire
CC BY-SA 3.0 · source
Name	AGM-114 Hellfire
Type	Air-to-surface missile
Manufacturer	Lockheed Martin Mission Systems and Training
Service	1984–present
Crew	N/A
Length	64–73 in
Diameter	7 in
Wingspan	13.6 in
Speed	Mach 1.3–1.4
Vehicle range	0.5–11 km (varies by variant)
Filling	Shaped charge, blast-fragmentation, thermobaric
Guidance	Laser, radar, millimeter-wave, GPS/INS

AGM-114 Hellfire is an American family of air-to-surface precision-guided missiles developed for anti-armor and precision strike roles. Designed during the Cold War, it entered service in the 1980s and has been employed from rotary-wing aircraft, fixed-wing aircraft, unmanned aerial vehicles, and vehicle- and surface-launch platforms. The weapon has influenced modern precision-strike doctrine and has been integrated with platforms operated by the United States Army, United States Air Force, Royal Air Force, Israeli Air Force, and numerous other military services.

Development and Design

Initial development of the Hellfire began under the auspices of United States Department of Defense procurement programs to counter Soviet Union armored threats during the 1970s and 1980s, with prime contractors including Martin Marietta and later Lockheed Martin. Early programs linked to the project involved research from Redstone Arsenal, testing at White Sands Missile Range, and integration trials with the AH-64 Apache attack helicopter and the F-16 Fighting Falcon. Design priorities emphasized a compact 7-inch diameter airframe, a shaped charge warhead capable of penetrating modern main battle tank armor, and modular guidance packages to meet evolving mission sets defined by U.S. Army Aviation Branch doctrine and NATO interoperability standards. Prototypes underwent flight testing at Edwards Air Force Base and live-fire validation influenced by lessons from the Yom Kippur War and armored engagements in Europe.

Variants and Modifications

Hellfire evolved into multiple variants to address anti-armor, anti-structure, and counter-personnel requirements. Notable production families include the laser-guided "AGM-114A/B" early operational models, the tandem-warhead "AGM-114F/K" optimized against explosive reactive armor reflecting insights from First Gulf War and Yom Kippur War countermeasures, and the radar-guided millimeter-wave "AGM-114L/M/N" series developed alongside sensor advances at Raytheon Technologies research centers. The development of semi-active laser seekers drew upon programs funded by Defense Advanced Research Projects Agency initiatives, while GPS-aided inertial variants reflect integration trends seen in Joint Direct Attack Munition and other precision systems. Adaptations for UAV employment were tested on platforms such as the MQ-1 Predator, MQ-9 Reaper, and export derivatives underwent country-specific avionics and warhead modifications coordinated with national procurement agencies like UK Ministry of Defence and French Direction générale de l'armement.

Guidance, Sensors, and Warheads

Guidance suites for Hellfire include semi-active laser homing derived from seeker technologies fielded with systems like the Maverick family, millimeter-wave radar seekers developed following research at MIT Lincoln Laboratory, and later multi-mode fusions combining laser, radar, and INS/GPS components inspired by programs at Sandia National Laboratories. Seeker packaging accommodated atmospheric and battlefield obscurants encountered in Operation Desert Storm and Operation Enduring Freedom. Warhead options range from single-charge high-explosive anti-tank (HEAT) tandem charge designs for defeating explosive reactive armor to blast-fragmentation and thermobaric munitions tailored for urban and fortified target engagement, informed by assessments from Joint Improvised-Threat Defeat Organization analyses and lessons from operations in Iraq and Afghanistan.

Platforms and Launch Systems

Hellfire has been integrated onto a broad spectrum of launch platforms: manned helicopters such as the AH-64 Apache, AH-1 Cobra, and Eurocopter Tiger; fixed-wing aircraft exemplified by the AV-8B Harrier II and light attack types; unmanned systems including the MQ-1 Predator, MQ-9 Reaper, and tactical UAVs fielded by Israel Aerospace Industries; and naval or ground-launch configurations tested by U.S. Navy research units and some NATO partners. Integration efforts required interoperability work with avionics suites from manufacturers like Honeywell International and mission systems from Northrop Grumman, as well as weapon management software compliant with MIL-STD-1553 and other avionics protocols standardized by NATO.

Operational History

Hellfire first saw combat employment in the 1980s and expanded in prominence during the First Gulf War for anti-armor strikes and in subsequent operations such as Operation Enduring Freedom and Operation Iraqi Freedom against high-value and time-sensitive targets. The missile has been used in counterterrorism and counterinsurgency by platforms operated by the Central Intelligence Agency-supported programs during the Global War on Terrorism era, with notable engagement patterns described in after-action reports from U.S. Central Command. Combat performance and controversies—such as concerns about collateral damage and strike attribution—prompted doctrinal reviews by organizations like NATO Allied Command Operations and legislative oversight hearings in the United States Congress.

Export, Operators, and Proliferation

Hellfire has been exported extensively under Foreign Military Sales and direct commercial sales to allies including United Kingdom, France, Italy, Israel, Egypt, Jordan, Saudi Arabia, United Arab Emirates, Australia, and Pakistan. Operators span NATO members, Middle Eastern states, and Asia-Pacific partners, with procurement coordinated through agencies such as the Defense Security Cooperation Agency and national procurement bodies like Bureau of Industry and Security-regulated export channels. Proliferation concerns and end-use monitoring have involved diplomatic engagements at the United Nations and bilateral security assistance reviews, while technology transfer and co-production arrangements have occasionally been negotiated with indigenous industrial partners such as BAE Systems and Thales Group.
