Small Diameter Bomb

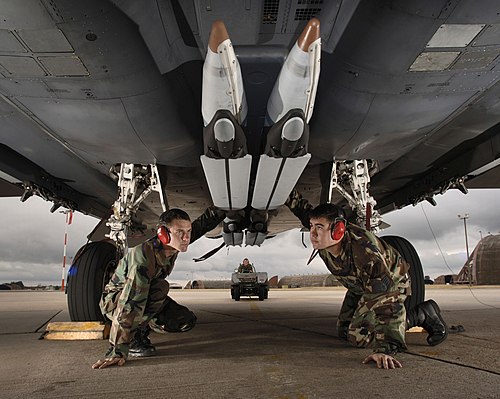

Small Diameter Bomb
Master Sgt. Lance Cheung · Public domain · source
Name	Small Diameter Bomb
Origin	United States
Type	Glide bomb
Manufacturer	Boeing (originally McDonnell Douglas), Raytheon
In service	2007–present
Wars	War in Afghanistan (2001–2021), Iraq War, Operation Inherent Resolve

Small Diameter Bomb is a family of precision-guided glide munitions developed for use by United States Air Force and allied air arms to provide standoff strike capability with reduced collateral damage. Designed during post-Cold War force-structure changes and precision-munitions emphasis, the weapon integrates avionics, warheads, and seekers to increase sortie effectiveness for aircraft such as the F-15E Strike Eagle, F-16 Fighting Falcon, and F/A-18E/F Super Hornet. Its development intersected with procurement programs influenced by the Defense Advanced Research Projects Agency, Department of Defense, and aerospace primes like McDonnell Douglas and Boeing.

Development and Design

Conceived in response to requirements from Air Combat Command, United States Central Command, and planners in United States Pacific Command for a low-collateral, high-loadout weapon, the program initiated technology demonstrations involving firms such as McDonnell Douglas, Raytheon, and Lockheed Martin. Design goals emphasized miniaturized guidance similar to systems used on the Joint Direct Attack Munition and lessons learned from campaigns involving the Balkans, Gulf War, and Operation Enduring Freedom. Aerodynamic design adopted a glide-body derived from smaller munitions and research conducted at facilities including the Air Force Research Laboratory and wind tunnels at NASA Ames Research Center. Warhead selection, influenced by analysis from Sandia National Laboratories and Lawrence Livermore National Laboratory, balanced lethality against collateral effects, while integration with aircraft stores management required coordination with Air Force Life Cycle Management Center and Naval Air Systems Command.

Variants and Specifications

The original variant, commonly designated SDB-I, featured a roughly 250-pound class ordnance with a penetrating/blast-fragmentation warhead and an effective range measured in tens of nautical miles when released at altitude from platforms like the B-1 Lancer or A-10 Thunderbolt II. The follow-on variant, SDB-II (also known as the Enhanced Small Diameter Bomb), added a multi-mode seeker and a tri-mode warhead to engage moving maritime and ground targets, developed in partnership with contractors including Raytheon Technologies and tested with agencies such as Naval Sea Systems Command. Specifications differ among production blocks: dimensions, weight, seeker options (semi-active laser, imaging infrared, millimeter-wave radar), and fuze types were refined in partnership with standards bodies like NATO and testing organizations such as U.S. Air Force Test Center.

Guidance and Targeting Systems

Guidance suites combined inertial navigation systems using micro-electromechanical sensors produced by companies such as Honeywell International with satellite navigation via Global Positioning System receivers, and terminal seekers including imaging infrared arrays developed by firms like BAE Systems and radar seekers from Raytheon. Laser designation interoperability allowed cooperative engagement with platforms equipped with targeting pods such as the AN/AAQ-33 Sniper, forward air controllers embedded with units from Iraq War deployments, and ship-based designators fielded by United States Navy surface combatants. Integration into mission systems required compatibility testing with avionics suites in aircraft certified under programs managed by Operational Test and Evaluation authorities and electronic-warfare considerations informed by analyses from Defense Threat Reduction Agency.

Operational History

Operational employment began in theaters including Iraq War and Operation Enduring Freedom, where SDB deliveries were used to strike high-value and time-sensitive targets while limiting urban damage in cities affected by the Iraqi insurgency and Battle of Marjah. The weapon saw further deployment during counter‑ISIL operations in Iraq and Syria under Operation Inherent Resolve, with sortie reports from wings such as those at Al Udeid Air Base and Al Asad Airbase noting increased mission flexibility. Tests and live drops occurred at ranges like Eglin Air Force Base and Drew Field, and after-action assessments conducted by USCENTCOM and the Inspector General of the Department of Defense influenced tactics, techniques, and procedures.

Deployment and Platforms

SDB integration programs enabled carriage on a wide range of tactical and strategic aircraft: fourth-generation fighters such as the F-15E Strike Eagle and F-16 Fighting Falcon, carrier-based types including the F/A-18E/F Super Hornet, and heavy bombers like the B-1 Lancer. Adaptation for internal carriage and external pylons required collaboration with platform program offices for the F-35 Lightning II and legacy fleets, and compatibility with bomb racks standardized under MIL‑STD processes. Naval and allied air forces including the Royal Air Force and air arms of Australia and Netherlands explored acquisition and integration as part of cooperative defense arrangements and foreign military sales managed by Defense Security Cooperation Agency.

Effectiveness, Limitations, and Controversies

Analyses by organizations such as RAND Corporation, Congressional Research Service, and the Government Accountability Office assessed SDB effectiveness in increasing sortie lethality and lowering collateral damage, while limitations included sensitivity to GPS degradation, adverse weather impacts on imaging seekers, and cost-per-round debates affecting procurement decisions overseen by Congress and Office of the Secretary of Defense. Controversies arose over target assessment in complex urban operations seen in Ramadi and concerns raised in hearings involving Senate Armed Services Committee members regarding escalation, export controls, and rules of engagement. Countermeasures studied by Defense Advanced Research Projects Agency and adversary forces included electronic jamming and dispersal tactics documented in analyses of asymmetric conflicts.
