AN/ASQ-228 ATFLIR

AN/ASQ-228 ATFLIR

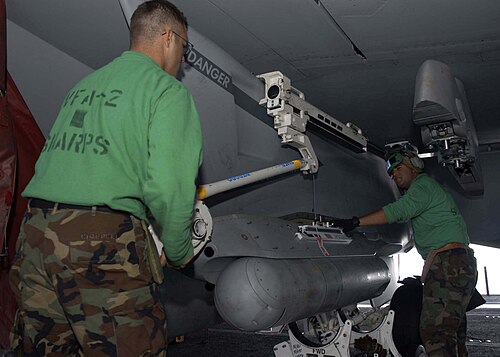

U.S. Navy photo by Photographer's Mate Airman Apprentice Timothy C. Roache Jr. · Public domain · source
Name	AN/ASQ-228 ATFLIR
Type	Targeting pod
Origin	United States
Manufacturer	Northrop Grumman
Introduced	2000s

AN/ASQ-228 ATFLIR The AN/ASQ-228 ATFLIR is an airborne targeting pod developed for precision targeting, surveillance, and reconnaissance on carrier-based and land-based platforms. It provides electro-optical, infrared, laser designation, and situational awareness capabilities to strike and intelligence systems used by the United States Navy and allied air arms. The pod was designed during the 1990s and fielded in the 2000s to enhance integration with precision-guided munitions and networked command architectures.

Design and Components

The pod's baseline architecture combines stabilized gimbal optics, a thermal imaging sensor, a charge-coupled device, a laser designator/rangefinder, and inertial navigation suites integrated with datalinks and mission computers. Key suppliers and development partners included Northrop Grumman, subcontractors linked to Lockheed Martin, and avionics firms that previously supported programs for McDonnell Douglas, General Dynamics, and Hughes Aircraft Company. The gimbal and stabilization mechanisms trace engineering heritage to technologies used on pods for F-16 Fighting Falcon, F/A-18E/F Super Hornet, and reconnaissance systems developed alongside work for Boeing and Raytheon programs. Sensors in the pod use cooled infrared detectors similar to breakthroughs applied on systems for Lockheed U-2 upgrades, while the laser assembly aligns with standards established by Northrop Grumman contracts supporting AN/ASQ-153 and other targeting suites. The pod's interfaces were designed around avionics standards adopted by Naval Air Systems Command and certification processes involving Federal Aviation Administration coordination for sea-based operations.

Performance and Capabilities

Optical performance includes high-resolution long-wave infrared imaging and midwave sensors paired with a visible-band camera enabling identification and track-before-detect functions. Laser spot tracking, autonomous target cueing, and automatic video exploitation support weapon delivery with precision munitions such as those in inventories of United States Navy, Royal Australian Air Force, and Royal Air Force tactical stocks. The inertial measurement and GPS-aided navigation provide geolocation accuracy compatible with targeting demands from platforms similar to Carrier Air Wing operations and strike planning used in Operation Iraqi Freedom and Operation Enduring Freedom. Data-link capabilities allow video downlink and target handover comparable to communications used by Joint Tactical Radio System initiatives and cooperative engagement frameworks supported by NATO partners.

Operational History

The pod entered service with squadrons aboard United States Navy aircraft carriers in the early 2000s, supporting carrier strike group operations alongside strike packages that included aircraft from Carrier Air Wing Three and Carrier Air Wing Eleven. It saw extensive use during post-9/11 conflicts and maritime interdiction operations connected to Operation Iraqi Freedom, Operation Enduring Freedom, and multinational taskings coordinated by Combined Maritime Forces. Deployments aboard carriers and expeditionary air wings demonstrated its role in close air support, armed reconnaissance, and overland strike missions during campaigns involving Marine Corps aviation units and joint operations with United States Air Force elements. Maintenance cycles and service life extensions were overseen by Naval Air Systems Command logistics programs and depot activities coordinated with Fleet Readiness Centers.

Platforms and Integration

Primary integration was with Boeing F/A-18E/F Super Hornet and retrofits for legacy McDonnell Douglas F/A-18C/D Hornet fleets, enabling strike squadrons attached to Carrier Air Wing deployments. The pod was adapted for compatibility tests on other NATO-compatible platforms and cooperative installations on multirole aircraft used by Royal Australian Air Force and Spanish Navy aviation elements. Aircraft integration involved mission computer modifications, wiring harnesses, and environmental coupling verified by Naval Air Warfare Center engineering teams and contractor integration cells drawn from Northrop Grumman and partner firms. Sea trials aboard nuclear and conventionally powered carriers included operations with air wings embarked on USS Nimitz (CVN-68), USS George Washington (CVN-73), and other Nimitz-class aircraft carrier platforms.

Variants and Upgrades

Fielded blocks incorporated incremental improvements: enhanced seeker sensitivity, upgraded processing boards, improved laser performance, and expanded datalink throughput. Upgrade packages were managed through programs of record coordinated by Naval Air Systems Command and contractor-led modernization similar to upgrade approaches used in AN/ASQ-153 and other targeting pod families. Incremental software releases added automated cueing algorithms inspired by research from Office of Naval Research programs and image exploitation techniques employed by units in U.S. Central Command. Sustainment efforts included hardware refreshes leveraging parts commonality with sensors fielded on platforms developed by Lockheed Martin and Northrop Grumman.

Export and International Use

Export approvals and foreign military sales enabled deliveries to allies including Royal Australian Air Force and partner air arms under security cooperation agreements negotiated with U.S. Department of Defense authorities. Integration support and technical assistance programs involved bilateral arrangements similar to other defense sales with recipients such as Spain and other NATO members operating compatible strike aircraft. International operators used the pod for multinational exercises, fleet interoperability trials, and coalition operations coordinated through NATO and combined task force structures.
