S-300 missile system

S-300 missile system
Vitaly V. Kuzmin · CC BY-SA 4.0 · source
Name	S-300 missile system

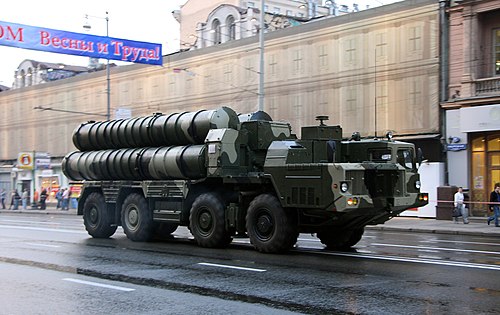

Caption	An S-300V Transporter erector launcher.
Origin	Soviet Union
Type	Surface-to-air missile system

S-300 missile system. The S-300 is a series of long-range, multi-channel surface-to-air missile systems developed by the Soviet Union and later produced by Russia. Designed primarily to defend against aircraft and cruise missiles, later variants gained significant capability against ballistic missile threats. It forms a cornerstone of air defense for numerous countries and has been extensively exported since the late 1970s.

Development and variants

Initial development began in the late 1960s at Almaz Central Design Bureau, with the system entering service with the Soviet Air Defence Forces in 1978. The project was led by chief designers including Boris Bunkin. The original system, designated SA-10 Grumble by NATO, was a significant leap in capability over previous systems like the S-75 Dvina. Major evolutionary branches include the land-based S-300P series for the Air Defence Forces and the distinct S-300V series, developed by Antey for the Soviet Ground Forces to counter tactical ballistic missiles like the Lance. Key subsequent models are the S-300PMU1 and S-300PMU2 Favorit, with improved engagement ranges and anti-ballistic missile capabilities. The naval version, known as the S-300F Fort, was deployed on ships like the Slava-class cruiser.

Design and characteristics

The system is built around a command post, typically based on heavy trucks like the MAZ-543, and multiple transporter erector launchers, each carrying four sealed canisterized missiles. It employs a tracking radar and an engagement radar, with the iconic Tomb Stone and Flap Lid radars providing target acquisition and guidance. Later variants introduced the Grave Stone radar. The system uses different missiles across its variants; for example, the S-300P uses the 5V55 and later the 48N6 family of missiles, while the S-300V uses the 9M83 and 9M82 missiles. It is capable of engaging multiple targets simultaneously, guided via command guidance with terminal semi-active radar homing. Maximum engagement ranges evolved from about 75 km with early models to over 200 km with the S-300PMU2 against aerodynamic targets, with significant capability against short-range ballistic missiles.

Operational history

While never used in major conflict by the Soviet Union, the system has seen deployment and use by various operators. Syria has deployed systems around Damascus and other key sites, with several launchers reportedly damaged or destroyed during the Syrian civil war by Israeli Air Force strikes, such as during the 2018 missile strikes against Syria. Iran has operated the system, notably shooting down a Ukraine International Airlines Flight 752 in error near Tehran in 2020 following tensions with the United States. During the Russo-Ukrainian War, both Ukraine and Russia have fielded various S-300 models. Ukrainian forces have used older S-300PS systems for both air defense and, in adapted roles, for ground attack. Russian forces have employed S-300V4 and S-300PM systems, with their launchers and radars becoming frequent targets for Ukrainian drone strikes and HIMARS attacks.

Operators

The system has been widely exported. Current major operators include Russia, Belarus, Ukraine, and Kazakhstan from the former Soviet Union. Other significant operators are China (which also produced a domestic version, the HQ-9), Vietnam, Algeria, and Iran. Greece operates S-300PMU1 systems originally destined for Cyprus, deployed on Crete. Bulgaria and Slovakia formerly operated the system but have since retired it. Azerbaijan and Armenia both possess S-300 systems, and Venezuela acquired batteries in the 2010s. Turkey's acquisition of the S-400 system from Russia caused a major diplomatic crisis with NATO and the United States. Category:Surface-to-air missiles of the Soviet Union Category:Surface-to-air missiles of Russia Category:Military equipment introduced in the 1970s
