S-75 Dvina

S-75 Dvina
Rosen06 · CC BY-SA 4.0 · source
Name	S-75 Dvina

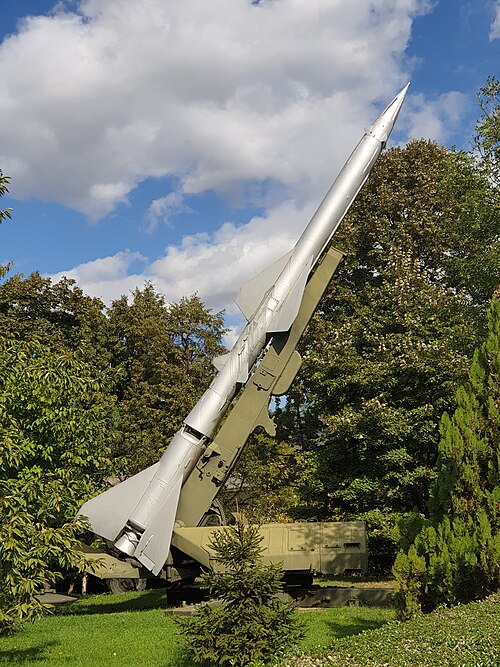

Caption	A V-750 missile on a SM-90 launcher
Type	Surface-to-air missile system
Origin	Soviet Union
Designer	KB-1 (NPO Almaz)
Design date	1953–1957
Service	1957–present
Used by	See #Operators
Wars	Vietnam War, Yom Kippur War, Iran–Iraq War
Manufacturer	Plant No. 41 (Moscow)
Variants	See #Variants and upgrades
Weight	2,300 kg (missile)
Length	10.6 m
Diameter	0.7 m
Wingspan	2.56 m
Speed	Mach 3
Vehicle range	45 km
Ceiling	25,000 m
Guidance	Radio command guidance
Steering	Control surfaces
Launch platform	SM-90 launcher

S-75 Dvina. The S-75 Dvina is a high-altitude, surface-to-air missile system developed by the Soviet Union during the Cold War. Designed by the KB-1 design bureau, it became one of the most widely deployed air defense systems globally, seeing extensive combat use. Its deployment fundamentally altered aerial warfare tactics and was a key strategic asset for the Warsaw Pact and allied nations.

Development and design

The development of the system was initiated in 1953 under a decree from the Council of Ministers of the Soviet Union, responding to the threat posed by high-altitude United States Air Force bombers like the B-52 Stratofortress. The lead designer was Pyotr Grushin at KB-1, with critical contributions from Aleksandr Raspletin on the associated Fan Song radar guidance system. The design utilized a two-stage configuration, with a solid-fuel booster and a liquid-fuel sustainer, employing radio command guidance from the RSNA-75 (Fan Song) engagement radar. Key components included the SM-90 launch rail, PR-11 transport-loader, and the V-750 missile, which used a large proximity fuze and a high-explosive fragmentation warhead. The system was designed for semi-mobile deployment, requiring prepared sites, and its Spoon Rest early-warning radar provided initial target acquisition.

Operational history

The system achieved its first combat success in 1959 when it downed a Republic of China Air Force RB-57D Canberra over Beijing, marking the first aerial kill by a surface-to-air missile. Its most famous employment was during the Vietnam War, where North Vietnamese forces, advised by Soviet and Vietnamese operators, used it to engage United States aircraft, including F-105 Thunderchief and F-4 Phantom II fighters. It was instrumental in the defense of Hanoi and Haiphong, claiming numerous aircraft and leading to the development of new U.S. Navy and USAF tactics like Wild Weasel suppression missions. It also saw significant action during the Yom Kippur War, where Egyptian and Syrian batteries inflicted heavy initial losses on the Israeli Air Force, and during the Iran–Iraq War. Despite its successes, it was vulnerable to electronic countermeasures and anti-radiation missiles like the AGM-45 Shrike.

Variants and upgrades

The original system, designated SA-2 Guideline by NATO, spawned numerous variants. Early Soviet models included the S-75 (V-750), S-75M (V-750V), and S-75M2 (V-755) with improved range and warheads. Key export and licensed production versions were the Chinese HQ-1 and substantially improved HQ-2, produced by the Fifth Academy of the Ministry of National Defense. Other variants included the Czechoslovak M-75 Volhov, and the North Korean Pon'gae-5. Modernization programs, such as those undertaken by Romania with the CA-75M and by Russia's Almaz-Antey, have integrated new digital electronics, optical tracking systems, and compatibility with newer missiles like the 5Ya23 to extend service life.

Operators

The system has been operated by over 40 countries worldwide. Major historical operators included the Soviet Air Defence Forces, the National People's Army of East Germany, the Polish Air Force, and the Egyptian Air Defense Command. It remains in limited service or reserve with several nations, including Cuba, North Korea, Vietnam, and Syria. Licensed production was established in the People's Republic of China and the Socialist Republic of Romania.

Specifications

The typical V-750 missile is 10.6 m long, with a body diameter of 0.7 m and a wingspan of 2.56 m. It has a launch weight of approximately 2,300 kg, propelled by a solid-fuel booster and a liquid-fuel sustainer rocket to speeds exceeding Mach 3. Its effective engagement range is up to 45 km against aircraft, with a maximum altitude ceiling of 25,000 m. The system uses a high-explosive fragmentation warhead weighing 195 kg, detonated by a radio proximity fuze. Guidance is provided via radio command guidance from the Fan Song radar, and the system typically deploys with six missiles on SM-90 launchers per battery.
