SpaceX Crew Dragon

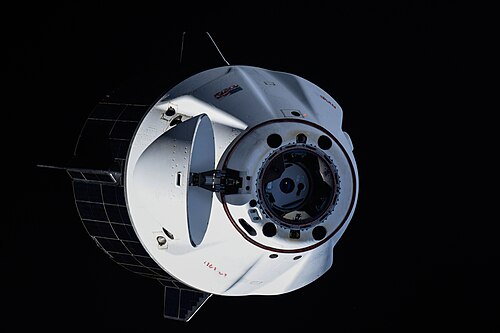

SpaceX Crew Dragon
NASA Johnson Space Center · Public domain · source
Name	Crew Dragon
Manufacturer	SpaceX
Country	United States
Operator	SpaceX / NASA
First flight	2019
Status	Active
Capacity	1–7 crew
Launch mass	~12,055 kg
Length	~8.1 m
Diameter	4 m
Power	Solar arrays integrated with trunk

SpaceX Crew Dragon is an American crewed capsule developed and manufactured by SpaceX for transporting personnel and cargo to low Earth orbit destinations such as the International Space Station, as well as for private orbital missions like Inspiration4 and governmental missions including those under Commercial Crew Program agreements with NASA. The vehicle derives heritage from the uncrewed Dragon 1 cargo capsule and forms part of a fleet alongside launch vehicles such as the Falcon 9 and planned systems like Starship. Crew Dragon combines aerodynamic reentry, parachute descent, and propulsive maneuvering for rendezvous and recovery operations.

Development and design

Crew Dragon's design began under a NASA-funded initiative with awards made to companies including Boeing and Blue Origin as part of the Commercial Crew Development competition alongside contractors like Sierra Nevada Corporation. The capsule features a pressurized crew module manufactured in Hawthorne, California by SpaceX engineers who collaborated with NASA centers such as Johnson Space Center and contractors at Aerojet Rocketdyne and Boeing Phantom Works for systems integration. Primary design elements include an integrated launch abort system using SuperDraco engines developed by SpaceX engineers, an ablative heat shield influenced by materials research at institutions like Aerojet partners and NASA Ames Research Center, and autonomous docking avionics compatible with the International Docking System Standard used by Orbital Sciences-era vehicles and later modules such as Harmony (ISS module). Life support, environmental control, and displays incorporate standards from International Space Station hardware and lessons from historical programs including Apollo and Space Shuttle.

Launch and mission profile

Crew Dragon missions launch atop a Falcon 9 booster from pads such as Kennedy Space Center Launch Complex 39A and Cape Canaveral Space Force Station, following ascent trajectories coordinated with agencies including Federal Aviation Administration and United States Space Force. After second-stage insertion, the capsule separates from the trunk and conducts phased rendezvous maneuvers using Draco engines to approach the International Space Station or free-fly for missions like Axiom Mission 1 and DearMoon planning. Docking can be autonomous using the capsule's sensors and guided by flight rules established with Mission Control Center teams at Johnson Space Center and Roscosmos-style procedures for joint operations. End-of-mission reentry uses a guided hypersonic profile, thermal protection systems similar to those tested by Sheathed Ablator programs, parachute deployment derived from Para-Engineers heritage, and maritime recovery using ships named by SpaceX in coordination with United States Coast Guard advisories and contractor fleets.

Crewed flights and operational history

The program's milestones include an uncrewed demonstration flight with a test payload and the first crewed Demo-2 mission carrying astronauts from NASA such as Robert Behnken and Douglas Hurley to the International Space Station. Subsequent operational crew rotations under Commercial Crew Program carried NASA astronauts like Sunita Williams and Shane Kimbrough, visited by international partners from European Space Agency astronauts and JAXA crew members. Private missions such as Inspiration4 and corporate-sponsored flights like AX-1 expanded Crew Dragon's operational envelope, involving mission controllers at SpaceX Hawthorne and flight surgeons from Johnson Space Center. The capsule has supported long-duration stays and cargo transfers, interacted with modules like Columbus (ISS module) and Kibo, and bolstered redundancy after retirements of vehicles from programs including Space Shuttle.

Safety systems and abort tests

Safety validation included static-fire ground tests, pad abort tests, and in-flight abort demonstrations coordinating with NASA Technical Standards and independent review boards such as panels convened by National Transportation Safety Board-style investigators and committees at Congress oversight hearings. The SuperDraco-powered abort system underwent acceptance testing at facilities including McGregor, Texas test sites and propulsion test stands associated with contractors like Aerojet Rocketdyne. Parachute qualification relied on drop tests and wind tunnel campaigns with participation from aerospace test centers such as Arnold Engineering Development Complex and resulted in iterative design updates. Fail-safe procedures and crew escape protocols were exercised with mission scenarios inspired by historic events such as the Apollo 1 investigation and procedures from Space Shuttle Challenger lessons learned.

Ground infrastructure and recovery

Ground support uses refurbished facilities at Kennedy Space Center, integration hangars in Hawthorne, and recovery ships retrofitted for capsule retrieval operating under coordination with range safety entities like Eastern Range and US Space Command tracking assets. Processing flow incorporates cleanroom assembly practices comparable to those at Jet Propulsion Laboratory and rollout operations sharing logistics with launch complexes used by vehicles like Atlas V. At-sea recovery teams include divers trained under standards from United States Navy salvage units, and post-recovery operations transfer the capsule to hangars for refurbishment, analysis by NASA engineers, and potential reuse consistent with SpaceX's rapid-turnaround ambitions modeled after commercial aviation maintenance practices.

Variants and future upgrades

Variants include cargo-configured adaptations drawing on heritage from Dragon 1 flights supplying the International Space Station under Commercial Resupply Services contracts, and proposed larger or modified capsules intended for private missions tied to companies such as Axiom Space and philanthropic campaigns like Space for Humanity. Future upgrades discussed in collaboration with agencies including NASA and companies like Boeing involve enhanced environmental control systems, alternative propulsion architectures referencing work at Blue Origin and Rocket Lab, improved heat-shield materials developed with research partners at NASA Ames Research Center and University of Colorado Boulder, and potential integration with orbital platforms like Lunar Gateway study concepts. Continued operational data from missions, regulatory reviews by Federal Aviation Administration, and international partnership dialogues with groups like European Space Agency will shape the capsule's evolution.
