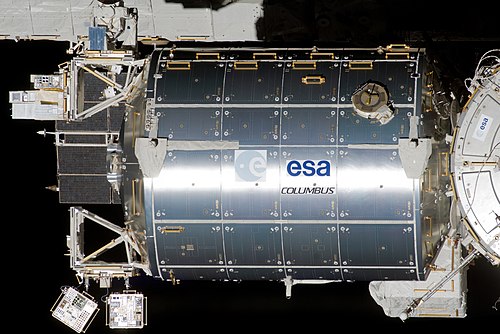

Columbus (ISS module)

Columbus (ISS module)
NASA · Public domain · source
Name	Columbus
Mission type	Laboratory module
Operator	European Space Agency
Cospar id	2008-005A
Satcat	32634
Launch date	7 February 2008
Launch vehicle	Space Shuttle Atlantis (STS-122)
Launch site	Kennedy Space Center
Manufacturer	Airbus Defence and Space
Mass	12530 kg
Length	6.871 m
Diameter	4.5 m
Volume	75 m3
Crew capacity	6 (ISS standard)
Status	Active on International Space Station

Columbus (ISS module) is a European Space Agency laboratory pressurised module attached to the International Space Station. It serves as a research facility for microgravity science and multidisciplinary experiments in fields such as biology, materials science, fluid physics, and earth observation. Launched by Space Shuttle Atlantis on STS-122 in 2008, Columbus represents a major contribution by ESA to the ISS partnership alongside agencies including NASA, Roscosmos, JAXA, and the Canadian Space Agency.

Overview

Columbus is a 6.87 m long pressurised laboratory module providing about 75 m3 of habitable volume and six external experiment sites, built by Airbus Defence and Space with components from Thales Alenia Space, MT Aerospace, Rheinmetall, and Stork. It docked to the Harmony module's starboard Earth-facing port and integrated with ISS systems including life support from NASA, power from the S0 truss and Solar Array systems, communications via the Ku-band and S-band networks, and attitude control support from Zvezda and Zarya modules. Columbus is part of ESA's human spaceflight contributions alongside the Automated Transfer Vehicle and crew training at European Astronaut Centre.

Design and Development

Design and development began under ESA programmes managed by the European Space Agency and industrial prime contractors such as EADS Astrium (now Airbus Defence and Space). The conceptual phase involved collaboration with agencies including NASA and suppliers like OHB SE, Rheinmetall Defence, and Thales Alenia Space. Key structural elements were manufactured in facilities across Germany, Italy, France, and the Netherlands, with thermal control provided by radiators designed by EADS Astrium teams and avionics integration by Astrium UK. Project milestones connected to programmes such as Horizon 2000 and policy decisions in European Council meetings influenced funding and schedule, while payload accommodation standards followed ISS Multilateral Agreement interfaces. Testing regimes included acoustic, vibration, and thermal vacuum tests at facilities like the ESTEC and European test centres.

Launch and Installation

Columbus launched aboard Space Shuttle Atlantis on STS-122 from Kennedy Space Center on 7 February 2008. The mission involved crews including ESA astronaut Leopold Eyharts and NASA astronaut team members operating with shuttle commanders and mission specialists. After rendezvous with the ISS, Columbus was installed on the Harmony module using the shuttle's Canadarm robotic arm operated by crews trained at the Canadian Space Agency's John H. Chapman Space Centre. Pressurisation, leak checks, and outfitting were performed in cooperation with personnel from NASA Johnson Space Center, Cologne-based ESA facilities, and the European Astronaut Centre.

Configuration and Facilities

Internally, Columbus contains four International Standard Payload Racks (ISPRs), avionics racks, and stowage; externally, it offers six European payload ports and three active external payload facilities. Facility systems include power conditioning units compatible with the ISS 120 V DC bus, environmental control and life support interfaces with the Environmental Control and Life Support System on the station, and data handling via the ISS common network linked to Mission Control Centers including ESOC and NASA Mission Control Center. Research hardware installed over time has included gloveboxes manufactured by TNO, centrifuges developed by DLR, and cold storage built by SENER. The module supports payloads from institutions such as the European Space Research and Technology Centre, Max Planck Institute, CNES, DLR, University of Leicester, and Italian National Institute for Astrophysics.

Scientific Research and Experiments

Columbus has hosted experiments across disciplines with instruments from labs like King's College London, University of Cambridge, ETH Zurich, and Karolinska Institute. Biology experiments have studied cell cultures, Arabidopsis plant growth, and microbial behaviour, while physics investigations have included fluid dynamics and combustion tests using facilities derived from proposals funded under ESA Research and Technology programmes. Earth observation experiments have used the external Express Pallet and payloads developed by Airbus Defence and Space and Thales Alenia Space to image continents, oceans, and atmospheric phenomena supporting research centres like Copernicus Programme participants. Collaborative experiments involved partners such as JAXA's Kibo module teams, Canadian Space Agency payloads, and NASA investigators.

Operations and Maintenance

Day-to-day operations are coordinated between ESA Mission Control Centre at ESOC in Darmstadt, NASA Mission Control Center in Houston, and international partners including Roscosmos flight controllers. Maintenance tasks have required spacewalks planned with Extravehicular Activity procedures, use of the Canadarm2 by crewmembers trained at Canadian Astronaut Training Centre, and automated fault detection tied into the ISS's On-Board Computer systems. Upgrades and refurbishments have been scheduled with logistics provided by cargo vehicles such as the Automated Transfer Vehicle, HTV by JAXA, and commercial resupply ships including SpaceX Dragon and Northrop Grumman Cygnus. Crews from ESA, NASA, and partner agencies perform stowage management, rack swaps, and experiment turnovers during long-duration expeditions.

Legacy and Impact

Columbus stands as a flagship ESA contribution to multinational space exploration, advancing European capabilities in long-duration human spaceflight, microgravity research, and industrial spacecraft manufacturing led by companies like Airbus Defence and Space and Thales Alenia Space. It has supported scientific publications from institutions including Imperial College London, University of Oxford, and Max Planck Society, influenced policies in the European Commission regarding research funding, and fostered cooperation among partners such as NASA, Roscosmos, JAXA, and Canadian Space Agency. Columbus's operational lessons inform future projects like the Lunar Gateway, commercial low Earth orbit initiatives by Axiom Space, and European plans for exploration architectures managed through ESA directorates.
