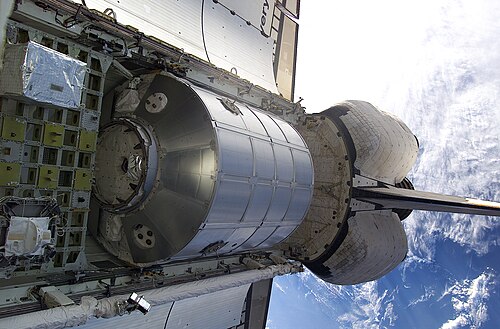

Multi-Purpose Logistics Module

Multi-Purpose Logistics Module
NASA · Public domain · source
Name	Multi-Purpose Logistics Module
Country	United States
Operator	NASA
Manufacturer	Italian Space Agency
First	STS-102
Last	STS-135
Mass	~4,000 kg
Length	6.4 m
Diameter	4.6 m
Status	Retired

Multi-Purpose Logistics Module The Multi-Purpose Logistics Module provided pressurized cargo transfer between the Space Shuttle and the International Space Station during NASA's Space Shuttle program, serving as a pressurized logistics carrier for assembly and resupply missions to Low Earth orbit, Destiny Laboratory, and Harmony Node 2. Designed and built through a collaboration involving the Italian Space Agency, Alenia Spazio, and NASA, the modules flew on missions from STS-102 in 2001 to STS-135 in 2011 and interfaced with international elements such as Zvezda and Kibo during Expedition increments.

Design and Specifications

Each Multi-Purpose Logistics Module was a cylindrical, pressurized module approximately 6.4 meters long and 4.6 meters in diameter mated to the Space Shuttle orbiter payload bay using a powered grapple fixture and handled by the Canadarm2 and Shuttle Remote Manipulator System. The structure incorporated an aluminum frame, interchangeable radial and axial tie-downs compatible with International Standard Payload Rack configurations used in Destiny and Columbus, enabling stowage of up to ~9,000 kg of cargo per flight and integration with Extravehicular activity procedures for external payload operations. Thermal control relied on passive insulation and interface interfaces with the Space Shuttle thermal control system while avionics and environmental control interfaces conformed to NASA Standards used across Space Station Freedom derivatives and Alpha Magnetic Spectrometer support hardware. Each module featured a Common Berthing Mechanism compatible with Pressurized Mating Adapter hardware, and interior fittings accepted International Standard Payload Rack frames, flight stowage platforms, and stowage lockers developed from designs used on Skylab and Mir logistics carriers.

Origins and Development

The MPLM concept originated during cooperative planning between NASA and the Italian Space Agency following post-Cold War plans for a permanently crewed station such as International Space Station and earlier studies like Space Station Freedom. Contracting involved Alenia Spazio (later Thales Alenia Space), aerospace firms with heritage from Ariane and Vega hardware, and the workstreams intersected with program offices at John F. Kennedy Space Center, Marshall Space Flight Center, and Johnson Space Center. Technical requirements derived from Assembly of the International Space Station manifest studies and logistics models used for Mir resupply and incorporated lessons from robotic handling developments at Merritt Island test facilities and from flight experiments on STS-88 and STS-96. Political sponsorship included delegations within the European Space Agency and bilateral agreements memorialized in implementation arrangements between NASA and the Italian Space Agency.

Operational History

Three MPLMs—named after notable figures and institutions—flew multiple missions as part of the Space Shuttle program manifest, supporting ISS assembly flights including STS-102, STS-105, STS-120, and culminating with STS-135. Crewed operations required coordination among flight controllers in the Johnson Space Center Mission Control, EVA teams from European Space Agency and Canadian Space Agency operations, and logistics planners from ISS Program. MPLMs were berthed, unberthed, and returned to Earth aboard orbiters such as Atlantis and Endeavour, and were processed through facilities at Kennedy Space Center and transferred to organizations including National Air and Space Museum, Smithsonian Institution, and international partners for display or storage. Operations intersected with contingencies such as Space Shuttle Columbia disaster return-to-flight readiness reviews and influenced later manifest decisions during Shuttle–Mir Program legacy activities.

Cargo and Payloads

Cargo flown in MPLMs included a wide array of scientific equipment, life-support provisions, spare parts, and experiment racks including items destined for Destiny Laboratory, Kibo, and Columbus Laboratory. Notable payloads comprised International Standard Payload Rack assemblies, experiments sponsored by NASA centers and international partners such as JAXA, ESA, and CSA, and large replacement elements like Solar Array components, Gyroscope spares from Control Moment Gyroscope systems, and resupply for long-duration crews participating in Expedition 6, Expedition 15, and Expedition 32. The modules accommodated cold stowage platforms for biological payloads developed with the National Laboratory community and transport of hardware for experiments connected to projects like Alpha Magnetic Spectrometer and Human Research Program investigations.

Ground Processing and Launch Integration

Preflight processing for MPLMs occurred at Kennedy Space Center, including modal testing at facilities shared with External Tank and Solid Rocket Booster processing lines, systems integration at OPF hangars alongside orbiters such as Discovery, and final payload attach and mating to the orbiter payload bay. Ground teams from United Space Alliance and industrial partners performed leak checks, environmental control system hookups, and installed flight stowage racks per manifests created by Mission Integration offices. Launch integration required coordination with the Launch Services Program for scheduling, with ground operations teams interfacing with Range Control at Cape Canaveral Space Force Station and contingency planning with International Space Station Program flight surgeons and Crew Operations.

Decommissioning and Legacy

Following the retirement of the Space Shuttle program in 2011 and the final MPLM flight on STS-135, modules were decommissioned, with some preserved for museum display at institutions like the Smithsonian National Air and Space Museum and others retained by the Italian Space Agency and industrial partners for heritage. The MPLM legacy informed designs for later cargo vehicles including Cygnus, SpaceX Dragon 1, and concepts for pressurized logistics carriers for Lunar Gateway and commercial station proposals, influencing standards for berthing mechanisms and payload rack interoperability used in programs like Commercial Resupply Services and Commercial Crew Program. The engineering, international partnership model, and operational lessons from MPLM flights continue to shape cooperative frameworks between NASA, ESA, JAXA, and national space agencies engaging in sustained human spaceflight.
