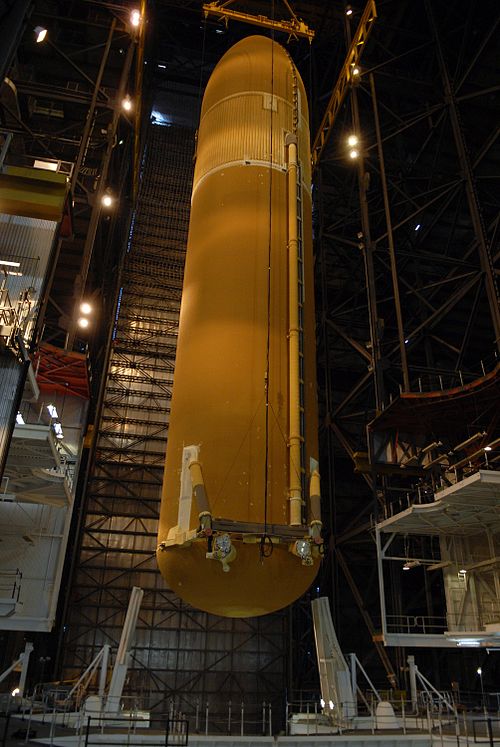

Kim Shiflett · Public domain · source
Name	External Tank
Country	United States
Manufacturer	Martin Marietta; Lockheed Martin
First launch	April 12, 1981
Last launch	July 8, 2011
Status	Retired
Height	46.9 m
Diameter	8.4 m
Mass	76000 kg (empty)
Propellant	Liquid hydrogen and liquid oxygen

External Tank The External Tank was the large, expendable cryogenic propellant tank used by the Space Shuttle stack, providing liquid hydrogen and liquid oxygen to the orbiter's main engines during ascent. It served as the structural backbone that joined the Orbiter Vehicle and the Solid Rocket Booster pair and was the only major Shuttle component not reused after flight. The tank's design, production, and operational life intersected with numerous programs, contractors, facilities, and incidents that shaped NASA's human spaceflight era.

Design and Specifications

The tank's architecture combined a forward intertank, liquid oxygen (LOX) tank, and liquid hydrogen (LH2) tank into a single assembly that interfaced with the orbiter's aft fuselage and the two Solid Rocket Boosters. Aerodynamic shaping, mass minimization, and cryogenic insulation were balanced against loads from the Space Shuttle Main Engine gimbaling and SRB thrust. Dimensions matched the stack envelope at Kennedy Space Center's Vehicle Assembly Building and were constrained by the Shuttle's launch pad infrastructure at Launch Complex 39. Flight instrumentation, umbilicals, and separation systems integrated with avionics and ground support from centers such as Marshall Space Flight Center and Johnson Space Center.

Manufacturing and Materials

Primary manufacturing was performed by Martin Marietta and later Lockheed Martin facilities employing aluminum-lithium alloy structures and orthogrid stiffening to reduce mass while maintaining stiffness. The tank used spray-on foam insulation applied in multiple layers to control boil-off and prevent ice accumulation on the tank exterior; thermal protection interfaces impacted operations at Kennedy Space Center and during transfers from the Michoud Assembly Facility. Welding, nondestructive inspection, and quality control were governed by standards used across aerospace suppliers including Hamilton Sundstrand and United Technologies affiliates. The propellant systems incorporated valves, umbilicals, and quick-disconnect hardware supplied by contractors with heritage in cryogenics and launch vehicle plumbing.

Operational History

First flown on the maiden operational Shuttle mission alongside STS-1 era systems, the tank supported more than three decades of flights that included ferrying payloads to Low Earth Orbit, assembly missions for the International Space Station, and servicing campaigns such as Hubble Space Telescope missions. Each launch involved coordination between range safety elements at Cape Canaveral Air Force Station and mission control at Johnson Space Center. The tank's in-flight separation and subsequent reentry debris trajectory were analyzed by teams at Ames Research Center and other research institutes studying breakup dynamics. Retirement of the hardware coincided with the final Shuttle mission following the completion of ISS assembly.

Modifications and Upgrades

Over its production life the design underwent mass-reduction and icing-control modifications driven by engineering reviews after key events. Changes included aluminum-lithium substitution, orthogrid pattern refinements, and improvements to the spray-on foam insulation application process informed by investigations involving United Space Alliance and contractor consortiums. Later flights adopted structural and safety upgrades in response to recommendations from panels and offices such as the Columbia Accident Investigation Board and interagency review teams, with alterations to attachment fittings, sensors, and inspection protocols conducted at tooling centers including Michoud Assembly Facility.

Role in Shuttle Missions

During ascent the tank fed the orbiter's three main engines, enabling trajectory shaping for missions to rendezvous with Hubble Space Telescope, assemble modules of the International Space Station, and deploy satellites for organizations like Department of Defense launch customers. Its structural role also transmitted SRB loads to the orbiter and allowed aerodynamic fairing for the stack during max Q and Mach regimes monitored by flight controllers in Mission Control Center. Separation occurred shortly after main-engine cutoff, with timing coordinated with range safety and contingency procedures developed with agencies such as the Federal Aviation Administration and contractors responsible for payload integration.

Safety and Incidents

Safety concerns involving the tank focused on foam shedding, structural integrity under cryogenic conditions, and the aerothermal environment during reentry of tank debris. Foam loss was implicated in catastrophic accidents investigated by the Columbia Accident Investigation Board and prompted operational changes, additional inspections, and redesigns overseen by NASA leadership and contractor engineering teams. Other incidents included anomalous sensor readings, umbilical faults during countdown at Launch Complex 39, and post-separation breakup events analyzed by aerospace laboratories and research centers. Lessons learned influenced later vehicle designs and policy decisions across human spaceflight programs.
