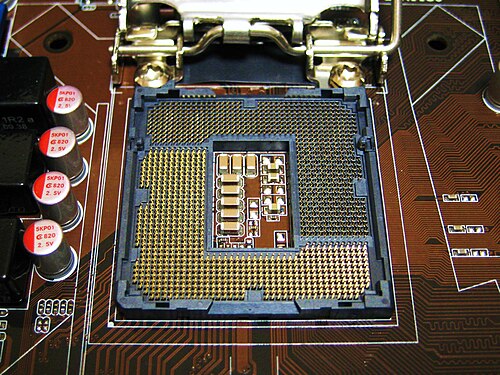

| LGA 1156 | |
|---|---|
 Photo: Qurren (talk), with IXY Digital 10 compact digital camera. · CC BY-SA 3.0 · source | |
| Name | LGA 1156 |
| Type | CPU socket |
| Released | 2009 |
| Form factor | Land Grid Array (LGA) |
| Contacts | 1156 |
| Supported processors | Intel Nehalem, Intel Westmere |
| Predecessor | LGA 775 |
| Successor | LGA 1155 |
LGA 1156 is an Intel desktop CPU socket introduced in 2009 for mainstream desktop platforms, designed to host first-generation Nehalem and low-power Westmere processors. It served as the platform for Intel's transition from front-side bus architectures to integrated memory controllers and on-die PCI Express connectivity, aligning with product strategies from Intel Corporation, and competing with offerings from Advanced Micro Devices. The socket appeared alongside contemporaneous platforms from vendors such as ASUS, Gigabyte Technology, MSI, and EVGA Corporation.
Overview
LGA 1156 was developed during an era marked by releases like the Intel Core i7 (Nehalem) series and contemporaneous product lines including Intel Core i5 and Intel Core i3. It emphasized integration of memory and PCI Express controllers onto the processor die, a trajectory similar to designs from AMD for the AMD Phenom II family. Industry events such as product launches at Intel Developer Forum highlighted LGA 1156's role in platforms built for mainstream consumers and enthusiasts who followed trends set by companies like Dell, HP Inc., Lenovo, and boutique builders exemplified by Falcon Northwest. Reviews in publications like AnandTech, Tom's Hardware, and TechRadar compared LGA 1156 systems to previous LGA 775 and subsequent LGA 1155 ecosystems.
Compatibility and Socket Design
The socket featured 1,156 spring-loaded contacts in a Land grid array arrangement and a retention mechanism compatible with standard CPU cooler mounting patterns used by manufacturers including Noctua, Cooler Master, Corsair, and Thermaltake. Mechanical design considerations paralleled earlier sockets used on platforms from Intel and processors built by Via Technologies in earlier eras. While electrically incompatible with LGA 775 and LGA 1155, the physical spacing and heatsink mounting holes allowed many third-party coolers from be quiet!, NZXT, and Phanteks to be reused across generations. Major motherboard makers like ASRock, Biostar, and Supermicro produced boards using the socket, implementing BIOS firmware from suppliers such as AMI and Phoenix Technologies to support features like overclocking and power management.
Supported Chipsets and Features
Chipsets paired with LGA 1156 included Intel families like the P55, H55, H57, and Q57 which provided varying mixes of PCI Express lanes, SATA ports, and USB interfaces. These chipsets implemented platform features coordinated with controller hubs and third-party controllers from Marvell Technology Group, Realtek, and ASMedia Technology. Enterprise and workstation-class features were exposed in boards aimed at organizations such as Hewlett-Packard and Dell through manageability features related to standards promulgated by Intel Active Management Technology. Graphics and I/O tradeoffs were often compared with discrete solutions from NVIDIA and integrated graphics solutions from Intel HD Graphics on certain SKUs.
Performance and Thermal Characteristics
Processors for the socket, such as those in the Intel Core i7-8xx and Core i5-7xx series, offered performance improvements in multithreaded workloads relative to earlier Pentium-era platforms by leveraging integrated memory controllers and increased parallelism seen in Hyper-Threading implementations. Thermal Design Power (TDP) ratings and cooling requirements were evaluated alongside cooling products from Arctic (company), and were topics in benchmarking suites used by outlets like PCMark, 3DMark, and SPEC CPU. Overclocking headroom varied with motherboard power delivery designs by manufacturers such as ASUS Republic of Gamers and Gigabyte Aorus, and performance scaling was often measured against competing designs from AMD FX series processors in real-world applications like content creation with Adobe Photoshop and gaming with titles popularized on platforms like Steam.
Motherboard and System Integration
Motherboards utilizing the socket were available in form factors from ATX to Mini-ITX and included integrated components such as audio codecs from Realtek ALC series and network controllers from Intel Ethernet Connection chips. System integrators and OEMs like Origin PC and CyberPowerPC configured LGA 1156 systems for end users, often pairing the socket with storage options including SATA II hard drives and SSDs from vendors such as Samsung and Western Digital. BIOS updates, firmware microcode, and platform validation efforts were coordinated with partners including Microsoft for Windows 7 and later operating system compatibility testing.
Market Reception and Legacy
The socket was received as a pragmatic mainstream platform bridging older LGA 775 ecosystems and newer LGA 1155 designs based on the Sandy Bridge microarchitecture. Coverage by technology journalists at outlets like The Verge, Wired, and Engadget reflected its importance in Intel's roadmap and its role in enabling integrated I/O. Over time, LGA 1156 systems became part of used and enthusiast markets supported by communities on forums such as Overclock.net and Reddit, while legacy boards remain referenced in archival materials from Intel Ark. Its evolution influenced later socket designs from Intel and competitive responses from AMD Ryzen, contributing to desktop computing transitions observed at industry trade shows such as CES and Computex Taipei.
