Geostationary Lightning Mapper

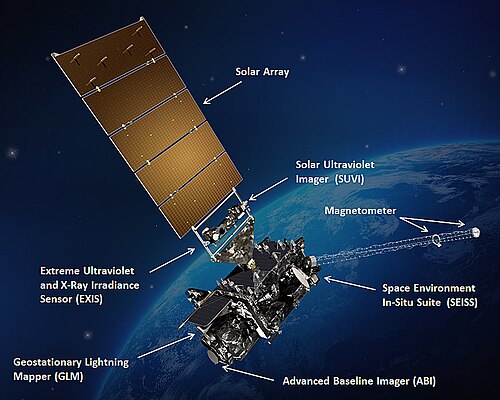

Geostationary Lightning Mapper
NASA/NOAA · Public domain · source
Name	Geostationary Lightning Mapper
Country	United States
Operator	National Oceanic and Atmospheric Administration (NOAA) / National Aeronautics and Space Administration (NASA)
Manufacturer	Lockheed Martin / Radiation monitoring devices
Launched	2016 (first operational on GOES-R)
Orbit	Geostationary orbit
Wavelength	Near-infrared (around 777.4 nm)
Resolution	Regional meso- to storm-scale

Geostationary Lightning Mapper is a spaceborne optical instrument that continuously monitors lightning activity across large portions of the Western Hemisphere from geostationary orbit. It provides real-time observations that support National Weather Service forecasting, Federal Aviation Administration operations, and research by institutions such as University Corporation for Atmospheric Research and National Center for Atmospheric Research. The instrument represents a collaboration among NASA, NOAA, and industrial partners including Lockheed Martin and vendors of spaceborne detectors.

Overview

The instrument is mounted on geostationary weather satellites such as the GOES-R series (e.g., GOES-16 and GOES-17) and comparable platforms like Himawari-8 and Meteosat Third Generation missions undertaken by Japan Meteorological Agency and European Organisation for the Exploitation of Meteorological Satellites. It detects transient optical emissions associated with lightning in the oxygen triplet spectral region, enabling continuous surveillance similar to how the Advanced Baseline Imager monitors cloud and moisture. Major stakeholders include operational centers like the National Hurricane Center, research programs such as the Global Lightning Dataset initiatives, and aerospace agencies including NOAA Satellite and Information Service.

Instrument Design and Technology

The instrument employs a narrowband imager centered near 777.4 nm with fast detectors and on-board processing derived from heritage designs used by Visible Infrared Imaging Radiometer Suite and other optical payloads. Its optical train includes radiometrically calibrated filters, a two-dimensional focal plane array, and real-time event detection algorithms implemented in flight software developed in partnership with NASA Goddard Space Flight Center and industrial contractors like Ball Aerospace. Thermal control and pointing stabilization use bus systems from manufacturers such as Lockheed Martin Space Systems to maintain geostationary alignment. The design trades spatial resolution, temporal cadence, and radiometric sensitivity to optimize detection of both intra-cloud and cloud-to-ground discharges while minimizing false detections from spaceborne glints and auroral emissions observed by missions including Suomi NPP.

Data Products and Processing

Primary data products include lightning event locations, flash extent density maps, and event stroke catalogs delivered in near-real-time to users via NOAA Satellite Operations Facility and data distribution systems used by National Weather Service offices. Processing pipelines apply calibration coefficients, geolocation corrections tied to orbital ephemerides from United States Space Force, and clustering algorithms to assemble strokes into flashes; these pipelines are maintained by teams at NOAA National Environmental Satellite, Data, and Information Service and research partners at institutions like Colorado State University and University of Miami. Downstream products integrate GLM data with radar datasets from networks such as NEXRAD and precipitation estimates from missions like Global Precipitation Measurement to produce combined situational awareness products used by Federal Aviation Administration traffic flow and by the National Hurricane Center for tropical cyclone intensity assessment.

Applications and Scientific Impact

Operational applications include aviation safety for carriers like United Airlines and agencies managing air traffic, severe thunderstorm nowcasting used by Storm Prediction Center, and lightning-related hazard warning for utilities and energy providers. Scientific applications span studies of electrification processes in mesoscale convective systems researched at facilities like Oklahoma Mesonet, aerosol–cloud interactions explored by teams at Scripps Institution of Oceanography, and climate-scale analyses comparing long-term lightning trends to datasets from Optical Transient Detector and Lightning Imaging Sensor. GLM-derived metrics have informed investigations into convective intensity in Hurricane Maria and diurnal lightning cycles over the Amazon observed in collaboration with Instituto Nacional de Pesquisas Espaciais.

Operational History and Missions

The first operational flight of the instrument was aboard GOES-16 (GOES-R series) launched in 2016, followed by similar payloads on GOES-17 (GOES-S) and planned inclusion on successor platforms in the GOES-T and GOES-U cadence. International equivalents on Himawari-8 (operated by Japan Meteorological Agency) and planned instruments on Meteosat Third Generation demonstrate the adoption of lightning mapping in geostationary meteorological programs. Program management has involved coordination among NOAA program offices, NASA mission directors, and congressional appropriations processes overseen by committees such as the United States Senate Committee on Commerce, Science, and Transportation.

Limitations and Challenges

Limitations include reduced sensitivity at the edge of geostationary coverage where viewing geometry increases optical path length, contamination from sunglint and city lights that can elevate false detection rates, and limitations in discriminating intra-cloud versus cloud-to-ground polarity without complementary ground-based networks like the National Lightning Detection Network and the World Wide Lightning Location Network. Challenges also involve sustaining calibration over multi-year missions, mitigating data latency for time-critical aviation uses, and integrating heterogeneous datasets across agencies such as NOAA, NASA, and international partners like European Organisation for the Exploitation of Meteorological Satellites.
