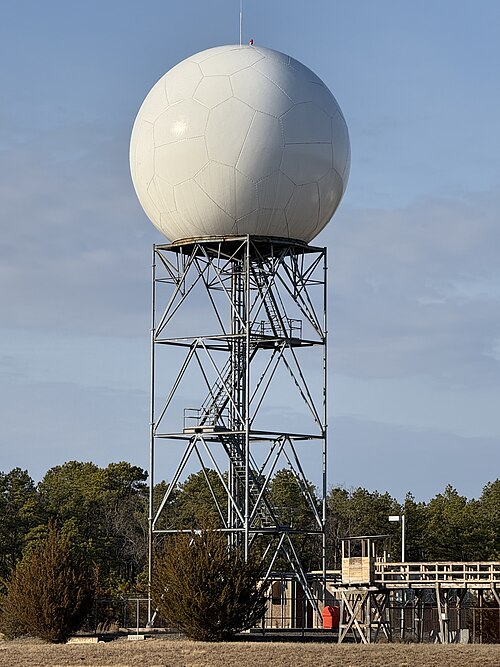

NEXRAD

NEXRAD
Famartin · CC BY-SA 4.0 · source
Name	NEXRAD
Country	United States
Introduced	1988
Type	Weather surveillance radar
Frequency	S-band (2–4 GHz)
Range	~460 km (varies by mode)
Manufacturer	Multiple contractors

NEXRAD NEXRAD is the common designation for the United States network of Doppler weather surveillance radars used for precipitation detection, storm tracking, and atmospheric motion analysis. Operated primarily by the National Weather Service, Federal Aviation Administration, and Department of Defense, the network provides volumetric reflectivity and velocity data that support forecasting, aviation, emergency management, and hydrology. NEXRAD data underpin operational products used by agencies such as the National Oceanic and Atmospheric Administration, National Hurricane Center, and regional forecast offices.

Overview

NEXRAD comprises a distributed array of WSR-88D radar installations located across the United States, Puerto Rico, and selected territories, each sited to provide overlapping coverage for continental surveillance. The system uses S-band wavelengths to balance sensitivity to precipitation with attenuation characteristics, enabling detection of tornado-scale circulations, mesoscale convective systems, and synoptic-scale precipitation. Data streams include base reflectivity, radial velocity, and spectrum width, which feed into algorithms for hail detection, wind shear alerts, and quantitative precipitation estimation used by the Federal Aviation Administration and U.S. Army Corps of Engineers.

History and Development

Development of the WSR-88D radar family began in the 1970s and 1980s following lessons from deployments such as the Lubbock tornado studies and severe-storm research conducted by universities and agencies including National Severe Storms Laboratory and University of Oklahoma. Major milestones included prototype testing at sites influenced by proposals from the American Meteorological Society and procurement managed by the National Weather Service and Defense Logistics Agency. The initial deployment in the late 1980s replaced older networks such as the WSR-57 and incorporated Doppler processing advances derived from research at institutions like MIT Lincoln Laboratory and the Cooperative Institute for Mesoscale Meteorological Studies.

Upgrades over subsequent decades introduced dual-polarization capabilities and improvements aligned with recommendations from panels convened by the National Academies and operational reviews by the Federal Aviation Administration. Collaboration with contractors and research centers such as MIT and Colorado State University supported algorithmic and hardware enhancements leading into the 21st century.

Technology and Components

Each NEXRAD installation consists of an antenna, transmitter, receiver, signal processor, and pedestal within a radome, using technologies matured in radio and radar engineering research at institutions like Bell Labs and Raytheon. The WSR-88D uses pulse-Doppler techniques to extract radial velocity via phase shift measurements and incorporates moving target indication filters developed from work at Lincoln Laboratory. Dual-polarization hardware and software added cross-polar correlation metrics, differential reflectivity, and differential phase, enabling discrimination of hydrometeor types and hail mapping—advances informed by laboratories such as NCAR and NOAA research divisions.

Signal processing chains route raw intermediate frequency samples to site-level processors and central hubs maintained by the National Weather Service and regional data centers like the RFCs (River Forecast Centers). Power systems, site infrastructure, and communications leverage logistics frameworks coordinated with agencies including the United States Air Force and utility providers near installations sited in coordination with municipal and state authorities.

Data Products and Processing

NEXRAD produces base data (reflectivity, velocity, spectrum width) and derived products (Composite Reflectivity, Storm Relative Velocity, Vertically Integrated Liquid, Echo Tops) that feed algorithm suites developed by research groups at NOAA, University of Oklahoma, National Severe Storms Laboratory, and other academic partners. Real-time processing pipelines use quality control and clutter suppression routines influenced by work at MIT and Colorado State University, while higher-level products support services provided by the National Hurricane Center, Storm Prediction Center, and regional forecast offices.

Data dissemination employs standards and protocols adopted by organizations like the Open Geospatial Consortium and national metadata frameworks coordinated with NOAA CLASS and regional data exchange nodes. Users in aviation, hydrology, and emergency management ingest NEXRAD products into systems operated by Federal Aviation Administration, U.S. Geological Survey, and state emergency agencies.

Operational Use and Applications

Operationally, NEXRAD supports severe-weather warnings issued by the National Weather Service, tactical decision aids for the Federal Aviation Administration, and situational awareness for FEMA during disasters. Meteorological research groups at University of Oklahoma, Texas Tech University, and Penn State University use archival NEXRAD datasets for case studies of convective initiation, tornado genesis, and precipitation climatologies. Hydrologists at the U.S. Geological Survey and Army Corps of Engineers use NEXRAD precipitation estimates for flood forecasting and reservoir management, while utilities and transportation agencies integrate products for grid resilience and road-weather operations.

Commercial weather service providers and broadcast meteorologists at networks such as The Weather Channel and major broadcasters access NEXRAD streams for public forecasts and severe-weather coverage, often combining radar with satellite data from platforms like GOES.

Limitations and Challenges

NEXRAD faces limitations including beam blockage and range-related degradation, which affect low-level detection in complex terrain and at long ranges—issues studied by researchers at University of Alaska Fairbanks and Colorado State University. Ground clutter, anomalous propagation, and biological scatter (e.g., bird and insect returns) produce false echoes addressed by filtering methods developed by National Severe Storms Laboratory and academic partners. Dual-polarization mitigates some classification errors but does not eliminate ambiguity in mixed-phase precipitation, which remains an active research area for institutions like NCAR and University of Washington.

Operational challenges include maintenance of aging radars, modernization funding decisions reviewed by bodies like the Government Accountability Office, and integration with emerging observing systems such as phased-array radar experiments at MIT Lincoln Laboratory and remote-sensing satellites. Ongoing coordination among federal agencies, academic research centers, and industry partners continues to guide enhancements to coverage, reliability, and product fidelity.
