Dextre

Dextre
Penyulap · CC BY-SA 3.0 · source
Name	Dextre

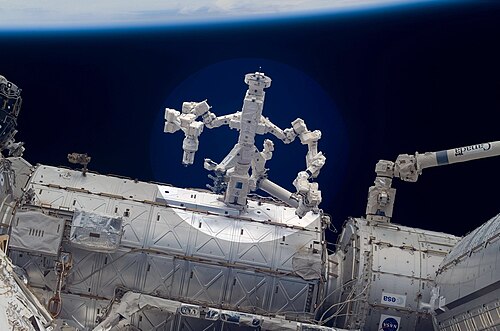

Caption	CanadaArm2's Dextre on the International Space Station
Country	Canada
Operator	Canadian Space Agency
Manufacturer	MacDonald, Dettwiler and Associates
Type	Robotic Manipulator
Mission	International Space Station operations
Deployed	2008

Dextre Dextre is a two-armed robotic manipulator platform designed to perform delicate maintenance and manipulation tasks on the International Space Station as part of the Mobile Servicing System. Built by MacDonald, Dettwiler and Associates for the Canadian Space Agency, it works in concert with Canadarm2, Japanese Experiment Module, European Space Agency payloads and NASA systems. Dextre enhances robotic servicing capabilities on Unity (ISS module), Harmony (ISS module), Columbus (ISS module), and visiting vehicles like SpaceX Dragon, Cygnus (spacecraft), and HTV.

Overview

Dextre is intended to reduce Extravehicular activity by executing tasks traditionally assigned to spacewalks involving hardware such as Latching End Effectors, Orbital Replacement Units, and articulated fixtures on the Zvezda (ISS module), Zarya, Destiny (ISS module), and external truss segments like S0 truss, P1 truss. Integrated into the Mobile Base System and interoperable with Shuttle Remote Manipulator System procedures, it supports missions planned under international cooperative frameworks including Interkosmos-era logistics and bilateral agreements between Canada and United States agencies. Dextre’s operations involve coordination with mission control centers such as Johnson Space Center, European Space Operations Centre, and Canadian Space Agency flight controllers.

Design and Specifications

Dextre features a torso assembly mounted on a rotating base compatible with Canadarm2 and the Mobile Base System. Its twin arms contain seven joints each, wrist pitch-roll units, and end-effectors derived from designs used on Space Shuttle robotic manipulators. The manipulator integrates multiple sensors, cameras, force-torque units, and a tool holster to handle interface items like Orbital Replacement Unit grapple fixtures and Electrical Power System disconnect panels used on ISS Solar Array hardware. Structural materials include aerospace-grade aluminum and composites similar to those used in Canadarm2 and Shuttle Remote Manipulator System booms. Power and data interfaces conform to standards employed across International Space Station payloads and bus architectures coordinated among NASA, Roscosmos, JAXA, and ESA.

Operations and Missions

Dextre has been employed on missions coordinated with STS-123, STS-127, and numerous Expedition increments aboard the International Space Station. Flight rules direct Dextre to perform tasks such as replacing External Control Moment Gyroscope components, transferring scientific instruments to Exposed Facility locations, and assisting berthing operations for vehicles like SpaceX Dragon, Orbital Sciences Cygnus, and HTV. Mission planners from Mission Control Center – Houston, TsUP, and the Canadian Space Agency use ground robotics simulators and testbeds patterned after facilities at MDA (company) and university labs at University of Toronto and University of British Columbia. Dextre supports payloads from providers including NASA Goddard Space Flight Center, European Space Agency experiments, and Japanese payloads integrated in the Kibo (module) operations manifest.

Maintenance and Upgrades

Maintenance planning for Dextre involves preventative schedules coordinated by the Canadian Space Agency, NASA, and contractors such as MDA. Upgrades have addressed avionics, software command sequences, and replacement of localized modules using exchange procedures similar to those for Canadarm2 Latching End Effectors during missions flown by Space Shuttle crews and robotic controllers. Software patches are validated in facilities like the John H. Chapman Space Centre and at contractor labs with hardware-in-the-loop rigs used for fault injection and verification. Logistics support leverages supply chains connected to aerospace firms such as Bombardier Aerospace suppliers, while training of operators occurs at facilities tied to Canadian Space Agency and Johnson Space Center simulators.

Notable Achievements and Incidents

Dextre’s accomplishments include reducing the number of Extravehicular activity hours required for maintenance campaigns on the International Space Station, successfully executing complex grappling and transfer operations during Expedition 20, Expedition 30, and later increments. It has handled delicate tasks on external experiments including Materials International Space Station Experiment hardware and supported solar array maintenance on the S4 truss and P6 truss elements. Incidents have involved software anomalies and planned contingency procedures coordinated with Mission Control Center – Houston and the Canadian Space Agency; these were resolved using redundant systems and procedural updates similar to remediation practiced during STS program anomalies. Dextre remains a core element in ongoing station sustainment alongside Canadarm2 and international robotic assets from ESA and JAXA.
