SpaceX Dragon

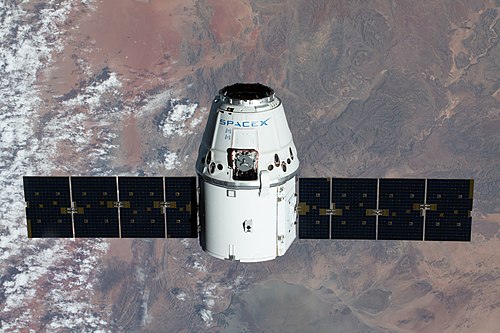

SpaceX Dragon
Original: NASA Johnson Space Center Derivative work: Nythar · Public domain · source
Name	Dragon
Manufacturer	SpaceX
Country	United States
First flight	2010-12-08
Status	Active
Applications	Cargo resupply, crew transport, science return
Launch vehicle	Falcon 9
Mass	6,000–12,000 kg (varies by variant)

SpaceX Dragon is a family of reusable spacecraft developed by SpaceX to transport cargo and crew to low Earth orbit, with emphasis on missions to the International Space Station and low Earth orbital science return. Conceived by Elon Musk and developed by SpaceX, Dragon bridged a capability gap in American human-rated spaceflight after the retirement of the Space Shuttle and helped realize commercial crew and cargo services under NASA's Commercial Crew Program and Commercial Resupply Services. It integrates technologies across reusable launch systems, orbital rendezvous, and heatshield reentry design.

Development and Design

Dragon's development began within SpaceX alongside the Falcon family of launch vehicles, drawing on experience from earlier launch efforts by SpaceX and suppliers like NASA contractors such as Boeing, Lockheed Martin, and industry partners including Aerojet Rocketdyne. Initial demonstrators addressed pressurized capsule architecture, thermal protection, avionics, and parachute recovery inspired by heritage capsules like Apollo, Soyuz, and designs from Soviet space program heritage. The development program involved orbital test flights, integration with the International Space Station, and certification processes through agreements with NASA under contracts modeled after public–private partnerships used in programs such as Commercial Orbital Transportation Services.

Dragon's structure uses a pressurized crew/cargo module and an unpressurized trunk, with carbon composite and aluminum-lithium structures influenced by aerospace practices at institutions like Northrop Grumman and standards used by European Space Agency contractors. Avionics and life-support subsystems evolved from early autonomous trending testbeds to fully redundant flight computers and environmental control systems comparable to systems used on Shenzhou and Orion (spacecraft) programs.

Variants (Cargo Dragon and Crew Dragon)

Two primary operational variants emerged: a cargo-only variant used under NASA's Commercial Resupply Services contracts, and a crewed variant certified for the Commercial Crew Program. The cargo Dragon focuses on downmass return capability for science payloads and hardware, paralleling capabilities historically provided by the Space Shuttle for returning experiment hardware to institutions like MIT, Caltech, and University of Colorado Boulder. Crew Dragon adds life-support, launch escape systems, and crew interfaces to transport astronauts from organizations such as NASA, JAXA, European Space Agency, and private astronaut missions coordinated with companies like Axiom Space.

Crew Dragon is equipped with an integrated abort system using SuperDraco thrusters developed in technologies analogous to propulsion work by Rocketdyne and propellant management similar to systems flown by CASC and other orbital vehicle programs. The cargo Dragon retains an unpressurized trunk for external payloads, supporting experiments similar to platforms like Nanoracks and deployed instruments used in projects associated with SpaceX Rideshare missions.

Launch and Recovery

Dragon launches atop the Falcon 9 rocket from pads at Kennedy Space Center and Vandenberg Space Force Base, with support from range operations at Cape Canaveral Space Force Station and telemetry tracking by networks including TDRS heritage assets linked to NOAA and USSF. Falcon 9 first-stage boosters often return to downrange platforms like Of Course I Still Love You or land at RTLS sites such as Landing Zone 1 mirroring rapid turnaround practices from modern reusable systems. Dragon separates after second-stage insertion and performs autonomous rendezvous using sensors comparable to those in Canadarm2 and guidance techniques tested in missions like Shuttle–Mir.

Reentry uses a PICA-X heatshield and deploys parachutes for splashdown in the Atlantic or Pacific recovery zones coordinated with recovery ships and teams similar to salvage operations by USNS Salvor style logistics. Crew Dragon recovery includes helicopter and naval assets to secure the capsule and crew, followed by postflight medical debriefs with organizations like Johnson Space Center.

Operational History

Dragon's operational history began with an uncrewed orbital demo flight, followed by cargo resupply missions to the International Space Station. It achieved milestones with crewed flights transporting NASA astronauts on missions such as rotational flights and test flights that restored independent U.S. crew launch capability lost after STS-135. Commercially, Dragon has supported private astronaut flights organized by companies like Axiom Space and international missions with partners including JAXA and ESA.

High-profile missions influenced policy debates at Congress and cooperative agreements with agencies like NOAA for satellite deployment. Dragon has enabled rapid return of biological and materials science payloads to research institutions such as Stanford University and University of California, Berkeley.

Technical Specifications

Key specifications vary by variant: pressurized volume similar to capsules like Orion (spacecraft) but scaled for LEO missions; avionics redundancy aligned with certification standards from FAA and NASA; propulsion provided by Draco and SuperDraco engines using hypergolic propellants developed in collaboration with suppliers experienced in systems like Aerojet Rocketdyne engines. Thermal protection uses PICA-X ablative material refined from NASA heritage research. Docking is autonomous using sensors analogous to LIDAR systems deployed on robotic servicing missions like DARPA experiments and docking mechanisms compatible with the International Docking System Standard.

Safety and Anomalies

Dragon's program includes flight abort tests, parachute qualification, and investigations into anomalies such as an in-flight explosion during testing that prompted reviews involving NASA and independent panels similar to prior investigations for programs like Columbia disaster inquiry procedures. Safety practices draw on standards from ASTM International aerospace committees and certification frameworks administered by FAA and NASA offices. Lessons from anomalies influenced design revisions, inspection protocols, and operational constraints used by mission planners at SpaceX and partner agencies.

Future Plans and Upgrades

Future plans include iterative upgrades for extended missions, enhanced life-support for long-duration private and agency missions, and potential adaptations for cislunar logistics analogous to proposals in Artemis-era commercial partnerships. SpaceX has discussed integration with larger architectures alongside companies like Blue Origin and civil programs led by NASA and international partners such as Roscosmos and CSA. Incremental improvements are expected in propulsion, avionics, thermal protection, and recovery operations to support expanded commercial use, science return, and potential commercial space station servicing with entities like Axiom Space.
