Congo Craton

Congo Craton
Woudloper · CC BY-SA 3.0 · source
Name	Congo Craton
Other names	Kaapvaal-Congo Craton (contextual)
Location	Central Africa; Democratic Republic of the Congo; Republic of the Congo; Angola; Zambia; Tanzania; Gabon; Cameroon
Area km2	~3,000,000
Age	Archean to Paleoproterozoic
Main rocks	Archean tonalite–trondhjemite–granodiorite; greenstone belts; Proterozoic supracrustal sequences; granulite-facies basement
Notable features	West Congo Belt; Katanga Basin; Bangweulu Block; São Francisco correlation

Congo Craton is a major Precambrian continental nucleus in central Africa that underpins large parts of the Democratic Republic of the Congo, Republic of the Congo, Angola, Zambia and adjacent states. It preserves Archean and Paleoproterozoic crustal fragments, greenstone belts and high-grade metamorphic terranes that record early Earth differentiation, crustal growth and later reworking during Proterozoic orogenies. The craton interfaces with Phanerozoic basins and Pan-African belts that have shaped African paleogeography and mineral endowment.

Geology and Composition

The craton comprises ancient Archean tonalite–trondhjemite–granodiorite (TTG) complexes, greenstone belt sequences, high-grade granulite-facies gneisses and Proterozoic supracrustal cover. Key rock assemblages include Archean TTG domes similar to those in the Kaapvaal Craton and Pilbara Craton, and metamorphosed volcanic-sedimentary successions comparable to the Barberton Greenstone Belt and Isua Greenstone Belt. Mafic–ultramafic intrusions and layered mafic provinces record early mantle plume events analogous to the Bushveld Complex and Siberian Traps in other cratons. Later Proterozoic sequences include molasse-like deposits and rift-related basins akin to the Taoudeni Basin and Kalahari Basin.

Tectonic History and Evolution

The craton experienced Archean crustal growth (ca. 3.5–2.7 Ga) through accretion of volcanic arcs and emplacement of TTG suites, comparable in timing to crustal episodes in the Yilgarn Craton and Slave Craton. A Paleoproterozoic episode (ca. 2.2–1.8 Ga) involved crustal reworking and assembly related to collisions that correlate with orogenic events recorded in the Sao Francisco Craton and West African Craton. Pan-African orogenies (ca. 650–500 Ma) superimposed deformation, metamorphism and magmatism linked to suturing with the East African Orogen and closure of the Mozambique Ocean. Post-orogenic extension and Mesozoic rifting associated with the opening of the South Atlantic Ocean and breakup of Gondwana produced basins such as the Kwanza Basin and influenced sedimentary cover and volcanism.

Cratonal Boundaries and Adjacent Terranes

Boundaries delimit the craton from Neoproterozoic mobile belts: to the east the Lufilian Arc and East African Rift-related terranes; to the north the Tuareg Shield and Pharusian Orogen correlations; to the south the Kalahari Craton transition and the Damara Belt affinity. The western margin is characterized by passive-margin sequences and the West Congolian Belt, with sutures and shear zones linking to the Sao Francisco-Congo craton continuity hypothesized in reconstructions that also involve the Rio de la Plata Craton. Major structural discontinuities include transcurrent shear zones that juxtapose Archean blocks and younger mobile belts similar to shear systems in the Grenville Province and Transamazonian Orogen.

Mineral Resources and Economic Geology

The craton hosts world-class mineralization: stratiform and stratabound copper–cobalt deposits in the Katanga Basin and Katanga Copperbelt, analogous to styles in the Zambian Copperbelt and Kupferschiefer; sediment-hosted lead–zinc occurrences; orogenic and greenstone-hosted gold deposits comparable to those in the Witwatersrand Basin and Lihir Gold Mine contexts; kimberlitic and lamproitic fields indicating diamond potential as in the Jwaneng Diamond Mine and Orapa Mine. Iron formations, manganese deposits and critical minerals (cobalt, copper, tin, tantalum) occur in Proterozoic basins and Paleoproterozoic supracrustal belts similar to commodity endowments of the Pilbara and Superior Province regions. Economic geology is influenced by structural controls such as shear zones, basin architecture and hydrothermal fluid pathways analogous to those in the Carajás Mineral Province.

Geochronology and Isotopic Studies

High-precision U–Pb zircon geochronology, Sm–Nd whole-rock and Lu–Hf zircon isotopic studies document crustal formation ages and episodes of reworking. Archean crystallization ages (ca. 3.5–2.7 Ga) and Paleoproterozoic metamorphic overprints (ca. 2.2–1.8 Ga) have been constrained with techniques parallel to those applied in the Jack Hills and Narryer Gneiss studies. Nd model ages and Hf isotopes indicate juvenile mantle input and crustal recycling comparable to interpretations for the Superior Craton and North China Craton. Re-Os isotope work on sulfide minerals provides timing for mineralization events in the Katanga system analogous to studies in the McArthur River Mine.

Paleogeography and Supercontinent Reconstructions

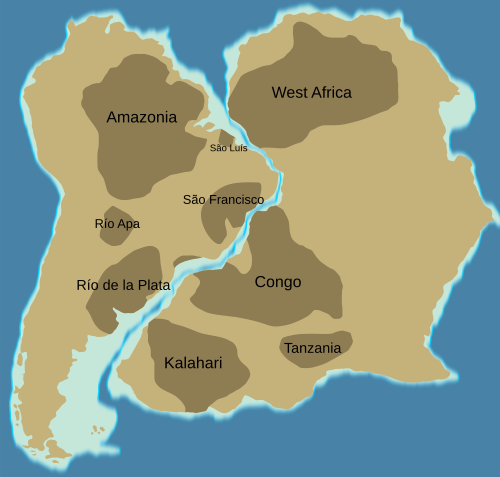

Reconstructions place the craton within successive supercontinents: as part of Kenorland/Nuna assembly, links to the Sao Francisco and Rio de la Plata cratons; involvement in Rodinia configurations with correlations to the Amazonian Craton and Laurentia; and participation in Gondwana assembly where Pan-African orogenesis sutured it to the East Antarctic Shield and Madagascar blocks. Paleomagnetic data, terrane correlations and matching of sedimentary sequences support models that connect the craton to South American counterparts and to the West African Craton during Neoproterozoic–Phanerozoic reconstructions.
