Bushveld Complex

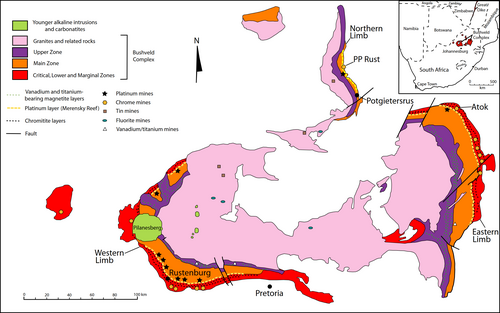

Bushveld Complex
Taylor, C.D., Schulz, K.J., Doebrich, J.L., Orris, G.J., Denning, P.D., and Kirs · Public domain · source
Name	Bushveld Complex
Type	Layered mafic intrusion
Location	Northern South Africa
Coordinates	24°S 28°E
Period	Paleoproterozoic
Area	~66,000 km²
Notable	World's largest known deposit of platinum group metals

Bushveld Complex The Bushveld Complex is a Paleoproterozoic layered mafic intrusion in northern South Africa notable for hosting the world's largest reserves of platinum group metals, chromium and vanadium. It underpins major mining districts near Rustenburg, Mokopane, and the Steelpoort valley and has driven regional development involving corporations such as Anglo American plc, Impala Platinum, and Norilsk Nickel. The Complex has been central to geological research involving figures and institutions like A.R. Irvine, A.R. Best and the Council for Geoscience.

Geology and Formation

The Complex formed during the Paleoproterozoic era associated with continental magmatism tied to cratonic processes beneath the Kaapvaal Craton and adjacent to the Zimbabwe Craton, contemporaneous with tectonic events that influenced the Transvaal Basin and Rooiberg Group. Magmatism appears linked to mantle plume models proposed by researchers alongside comparisons to the Siberian Traps and the Columbia River Basalt Group. Petrogenesis involves crystal settling, magma mixing and in situ crystallization documented in studies at institutions like the University of Cape Town and Wits University. Structural relationships with the Limpopo Belt and overlying sequences such as the Drakensberg lavas inform regional tectono-magmatic reconstructions developed by scientists including J.D. Clemens and M.R. Denevan.

Stratigraphy and Lithologies

The layered sequence includes the Marginal, Lower, Critical and Upper Zones along with the Rooiberg and Lebowa equivalents; stratigraphic frameworks were elaborated by geologists from the British Geological Survey and the Geological Society of South Africa. Lithologies comprise ultramafic cumulates—peridotite, dunite, harzburgite—plus pyroxenites, gabbros and norites; chromitite layers and sulfide-bearing seams occur mainly in the Critical Zone analogous to features studied in the Stillwater Complex and Great Dyke. Important marker horizons include the Merensky Reef and the Upper Group 2 (UG2) chromitite, whose petrology and mineral chemistry were examined using facilities at the Natural History Museum, London and the American Museum of Natural History by teams including A. Merensky and later researchers at Columbia University.

Mineralization and Economic Importance

The Complex hosts world-class concentrations of platinum group elements (PGE)—platinum, palladium, rhodium—as well as significant chromium and vanadium ores exploited for ferrochrome and steelmaking via companies such as Glencore and Eskom-linked industries. Mineralization occurs as stratiform sulfide and chromitite layers and as disseminated sulfides associated with interfaces comparable to deposits in Sudbury Basin and Norilsk-Talnakh. The Merensky Reef and UG2 are globally significant benchmarks for resources referenced by commodity markets like the London Metal Exchange and mining financiers including Goldman Sachs and Deutsche Bank. Downstream metallurgy and beneficiation link to smelters in Johannesburg and Bitou plants managed by firms including African Rainbow Minerals.

Mining History and Operations

Commercial discovery and exploitation began in the early 20th century with pioneers such as Hans Merensky and expansion driven by corporations like Union Corporation and later conglomerates including Anglo American plc and Lonmin. Major shafts and operations developed around Rustenburg and Middelburg with labour dynamics shaped by unions such as the National Union of Mineworkers (South Africa) and regulatory oversight from the Department of Mineral Resources and Energy (South Africa). Modern operations include underground and opencast methods managed by producers like Impala Platinum and Royal Bafokeng Platinum, while historical events like the 2012 Marikana massacre influenced policy, corporate governance and community relations. Logistics draw on infrastructure such as the Sishen–Saldanha railway and ports including Port of Durban.

Environmental and Socioeconomic Impacts

Mining has reshaped landscapes, water systems and communities, with impacts assessed by environmental consultancies such as Exxaro Resources environmental divisions and regulators including the South African National Biodiversity Institute. Issues include acid mine drainage affecting catchments feeding the Olifants River and Lebalelo wetlands, dust and tailings management, and socio-economic challenges in settlements like Marikana and Bapong. Social responses involve trade unions, non-governmental organizations like Bench Marks Foundation and policy initiatives from the South African Human Rights Commission and Department of Environmental Affairs aimed at rehabilitation, corporate social investment and equitable benefit-sharing.

Research and Exploration Methods

Investigations combine field mapping by teams from institutions such as University of Pretoria and Stellenbosch University with geochemical analyses conducted at laboratories including CSIR and international facilities like the Max Planck Institute for Chemistry. Techniques include geochronology (U-Pb zircon dating at University of the Witwatersrand labs), isotope geochemistry, geophysical surveys (gravity and aeromagnetic studies by Geosoft contractors), diamond drilling programs funded by mining houses, and mineral processing research in collaboration with the International Platinum Group Metals Association. Exploration targets use computational modeling developed by groups at Imperial College London and remote sensing by agencies such as the European Space Agency.
