Cratons

Cratons

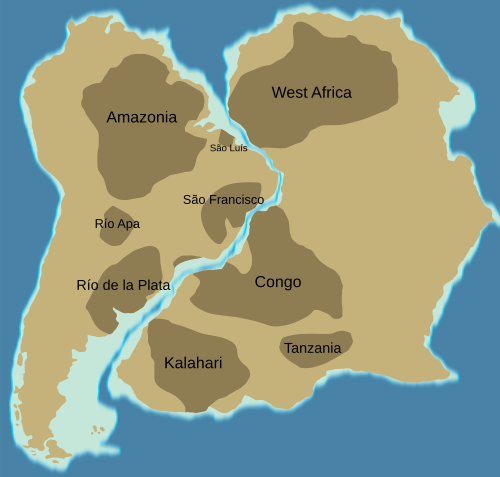

Woudloper · CC BY-SA 3.0 · source
Name	Cratons
Type	Shield and Platform
Age	Archean to Proterozoic
Primary lithology	Granite, Greenstone, Gneiss, Mafic-ultramafic
Region	Global
Notable examples	Kaapvaal Shield, Canadian Shield, Baltic Shield

Cratons Cratons are ancient, stable portions of continental lithosphere that preserve Archean and Proterozoic crustal provinces and underlie much of the continents. They form the tectonic cores for shields and platforms and are central to studies of Plate tectonics, Continental drift, Geochronology, Isotopic geochemistry and Petrology. Cratons are essential to understanding the evolution of Earth's lithosphere, the distribution of Mineral resources, and the paleogeographic reconstructions used in Paleomagnetism and Stratigraphy.

Introduction

Cratons represent long-lived, internally coherent blocks of continental crust and mantle lithosphere that have survived multiple orogenic cycles, including events such as the Trans-Hudson orogeny, Grenville orogeny, Kenoran orogeny and Caledonian orogeny. They are commonly exposed in shields—examples include the Canadian Shield, Baltic Shield, African Shield and Australian Shield—and are covered by platforms where Phanerozoic sedimentary successions rest on ancient basement. Studies of cratonic nuclei draw on data from institutions such as the United States Geological Survey, the Geological Survey of Canada, the British Geological Survey and universities including University of Toronto, University of Cape Town and University of Western Australia.

Formation and Evolution

Craton formation involves processes recorded during the Archean and Proterozoic eons, including juvenile crustal growth at greenstone belts like the Barberton Greenstone Belt, continental accretion in orogenic belts like the Trans-Hudson orogeny and stabilization via magmatic underplating seen in provinces such as the Pilbara craton and the Kaapvaal craton. Geochronological techniques—such as U-Pb dating, Sm-Nd isotopes, Lu-Hf isotopes and Re-Os dating—constrain timing of crustal differentiation, while evidence from Xenolith studies, seismic tomography from agencies like IRIS (Incorporated Research Institutions for Seismology), and mantle xenolith suites inform models of lithospheric mantle formation. Craton evolution includes episodes of crustal reworking during events like the Assembly of Rodinia and the Breakup of Pangaea, and later modification by continental rifting in regions such as the East African Rift and intraplate magmatism exemplified by the Siberian Traps and Deccan Traps.

Structure and Composition

The internal architecture of cratonic lithosphere comprises ancient crustal blocks of high-grade metamorphic rocks—orthogneiss, tonalite-trondhjemite-granodiorite (TTG) suites—and overlying platform cover sequences. Mantle roots beneath cratons consist of thick, chemically depleted, buoyant lithospheric mantle characterized by peridotite, harzburgite and clinopyroxenite, sampled by kimberlite and lamprophyre magmas in provinces such as the Kimberley region and the Yakutsk kimberlite province. Seismic models from projects like USArray and EUROBRIDGE reveal high-velocity keels extending to depths constrained by studies at facilities including Lamont–Doherty Earth Observatory and Scripps Institution of Oceanography. Petrological evidence links cratonic stability to metasomatic processes recorded in peridotite xenoliths, and to isotopic signatures observed in rocks studied at Smithsonian Institution collections and university laboratories.

Tectonic and Thermal Stability

Cratonic stability results from a combination of mechanical strength, thermal insulation and compositional buoyancy that resists delamination and convective erosion. Thermal models developed by researchers at Caltech, Massachusetts Institute of Technology, ETH Zurich and Stanford University examine heat flow, radiogenic heat production and thermal conductivity of cratonic lithosphere. Stability has been tested by events such as mantle plume impingement during the Siberian Traps eruption, continental collision in the Himalayan orogeny, and extension in the Basin and Range Province. Geodynamic simulations using software from groups at GEOMAR Helmholtz Centre for Ocean Research Kiel and GFZ German Research Centre for Geosciences evaluate how thick keels interact with mantle convection, while petrophysical studies at institutions like Imperial College London inform parameters for rheology and viscosity.

Economic Significance and Mineral Resources

Cratonic interiors host major mineral provinces including diamonds in kimberlite fields such as the Premier mine (Kimberley), Argyle diamond mine, Orapa diamond mine and deposits in the Yakutia region; platinum-group elements in the Bushveld Complex; gold in the Witwatersrand Basin; and base metal sulfide concentrations in greenstone belts like the Abitibi greenstone belt and Pilbara; hard-rock lithium and rare-earth element occurrences tied to pegmatites investigated by companies including De Beers Group, Anglo American plc and Rio Tinto Group. Exploration techniques developed by firms and research groups—ground magnetics used by BHP, airborne geophysics at Schlumberger-affiliated services, isotope geochemistry in university labs and diamond inclusion studies at museums like the Natural History Museum, London—are central to resource assessment. Economic geology research at organizations such as the International Union of Geological Sciences and university departments informs policy for mining in regions governed by entities like the Government of Canada and the Republic of South Africa.

Global Distribution and Major Cratons

Major cratonic regions include the Canadian Shield (Laurentia), the Baltic Shield (Fennoscandia), the Siberian craton (Siberia), the West African craton, the Kaapvaal craton, the Pilbara craton, the Yilgarn craton, the Guiana Shield, the Amazonian craton, the São Francisco craton, the North China craton, the South China Block, the Indian Shield (Dharwar, Singhbhum), and the Antarctic Craton exposures studied in campaigns by British Antarctic Survey and Australian Antarctic Division. Plate reconstructions linking cratonic fragments to supercontinents involve collaborations among researchers from institutions like Paleomap Project, University of Wisconsin–Madison paleoceanography groups, and international consortia studying paleogeography and tectonics.
