Canadarm

Canadarm
NASA · Public domain · source
Name	Canadarm

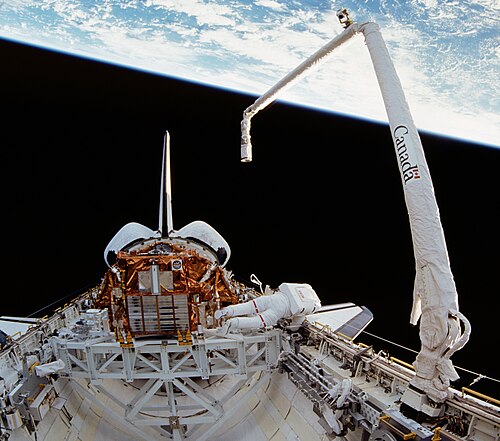

Caption	The robotic arm on board the Space Shuttle Columbia during STS-1
Manufacturer	Sierra Nevada Corporation; originally Spar Aerospace; development led by Canadian Space Agency
Country	Canada
Introduced	1981
Retired	2011
Type	Remote manipulator system
Used by	National Aeronautics and Space Administration (NASA), Canadian Space Agency
Missions	Space Shuttle program

Canadarm was a series of robotic remote manipulator systems developed in Canada and used primarily on the Space Shuttle program. The system was designed and manufactured through a collaboration led by the Canadian Space Agency with industry partners including Spar Aerospace and later MDA (company), providing payload handling, satellite deployment, and in-flight inspection capabilities. Canadarm operated from the inaugural shuttle flight in 1981 through the final shuttle mission in 2011, supporting dozens of missions and enabling international projects such as construction for the International Space Station.

Development and design

Development began in the 1970s when NASA solicited international partners for payload-handling systems for the Space Shuttle orbiter. The proposal from Canada led to a contract awarded to Spar Aerospace and partners under coordination by the newly formed Canadian Space Agency, tying aerospace contractors, academic laboratories, and federal procurement. Engineers drew on techniques from Manned Orbiting Laboratory concepts and lessons from industrial robotics developed by firms associated with McGill University and University of Toronto research groups. The design emphasized lightweight structures using aerospace-grade alloys, servo-electric actuators with redundant electronics, and a modular end effector to interface with shuttle payload latches and International Docking System Standard-like fixtures used in legacy payloads. Avionics were integrated with the shuttle's flight computers and ground-based mission control at Johnson Space Center for coordinated operations during missions.

Operational history

Canadarm first flew on STS-1 aboard the Space Shuttle Columbia in 1981, operated by flight crews trained jointly by the Canadian Space Agency and NASA. Throughout the Space Shuttle program, Canadarm performed satellite deployments, retrievals, and in-orbit construction tasks for modules destined for the International Space Station. Notable operational milestones included supporting servicing missions for the Hubble Space Telescope and assisting in the assembly of Destiny (ISS module) and other US segment elements delivered by shuttle missions. Control procedures evolved with increased integration between shuttle mission control at Johnson Space Center and robotics specialists at Saint-Hubert, Quebec and other Canadian facilities. Following retirement of the Space Shuttle program in 2011, Canadarm units were preserved in museums and participating institutions including the Canada Aviation and Space Museum and Smithsonian National Air and Space Museum.

Technical specifications

The arm was approximately 15 metres long and comprised multiple revolute joints providing six degrees of freedom, enabling translation and rotation for payload handling tasks. Structural members used aerospace-grade aluminum alloys and titanium components to meet stiffness and mass constraints derived from Space Shuttle payload bay limitations. Actuation used electric motors with harmonic drive gearing and brushless servomotor controllers with fault-tolerant redundancy patterned after industrial designs from companies associated with Bombardier and Magellan Aerospace. The end effector used a snares-and-capture-latch mechanism to interface with standardized shuttle payload attach fittings; sensors included joint encoders, torque sensors, and television cameras for visual feedback relayed to crew consoles and to Mission Control Center teams. Software architecture implemented closed-loop control with position and force regulation, informed by techniques from flight-control research at Massachusetts Institute of Technology and Caltech laboratories involved in space robotics.

Missions and notable uses

Canadarm participated in dozens of shuttle missions including the first flight STS-1, satellite deployment missions like those for Syncom-class payloads, and complex servicing missions such as those for the Hubble Space Telescope. It was instrumental in assembly flights delivering Unity (ISS module), Zarya, and later Destiny (ISS module), enabling astronauts to berth and manipulate pressurized modules and trusses. The arm aided in inspection after the STS-107 and STS-114 missions and was used in contingency retrievals and EVA support during emergency repair scenarios. International collaborations saw Canadarm used alongside the Canadarm2 system and robotic mobile base operating on the International Space Station, demonstrating interoperability with hardware from Roscosmos-partnered modules and European Space Agency payloads.

Variants and successors

Evolution produced variants including qualification and flight spare units, plus engineering development models used for crew training and testing at Johnson Space Center and Canadian facilities. Successor systems include the larger, more capable Canadarm2 built for the International Space Station and the dexterous Dextre robotic manipulator developed by MDA (company) for fine manipulation and maintenance tasks. Concepts and technologies from Canadarm influenced robotic systems on programs led by European Space Agency, Japan Aerospace Exploration Agency, and commercial endeavors by firms such as SpaceX and Northrop Grumman for satellite servicing and on-orbit manipulation.

Cultural impact and legacy

Canadarm became a symbol of Canada's contribution to human spaceflight and appears in exhibits at institutions like the Canada Aviation and Space Museum and the National Air and Space Museum. It inspired curricula in robotics and STEM programs at universities such as University of Toronto, McGill University, and University of British Columbia, and is commemorated in philatelic issues, public sculpture, and media produced by the Canadian Broadcasting Corporation. The technology legacy persists in modern space robotics contracts and in the industrial base represented by companies including MDA (company), which continue to bid on international programs and influence policy discussions in aerospace procurement and bilateral space cooperation between Canada and United States.
