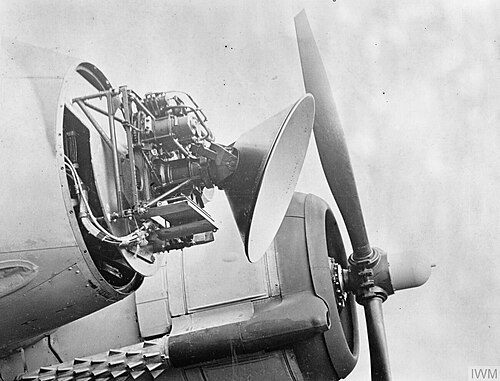

Royal Air Force official photographer · Public domain · source
Name	Airborne Interception radar
Type	Airborne radar
Introduced	1930s–1940s
Designer	Multiple designers
Manufacturer	Multiple manufacturers
Country	United Kingdom; United States; Germany

Airborne Interception radar is a category of airborne radar systems designed to detect and track aerial targets from aircraft platforms for interception missions. Developed during the late 1930s and refined through World War II, Cold War, and modern eras, these systems integrated advances in radio, electronics, and aeronautics to enable night fighting, all‑weather interception, and beyond‑visual‑range engagements. Airborne interception radars influenced aircraft design, weapons integration, and doctrine across services such as the Royal Air Force, United States Army Air Forces, and Luftwaffe.

Introduction

Airborne interception radar emerged as a response to operational needs identified during conflicts involving the Royal Air Force, Imperial Japanese Navy, and United States Navy. Early systems tied to projects at institutions like Bawdsey Manor, MIT Radiation Laboratory, and firms such as Marconi Company and RCA sought to provide night fighters and interceptors with search and fire-control capability. The concept interconnected with platforms including the Bristol Beaufighter, De Havilland Mosquito, Northrop P-61 Black Widow, and later jets like the English Electric Lightning and McDonnell Douglas F-4 Phantom II.

History and development

The lineage of airborne interception radar traces through interwar experiments by engineers at Bawdsey Manor and collaborations with companies like Ericsson and Philips. British wartime projects such as the Chain Home coastal radars and the airborne efforts at Bawdsey and Hawker Aircraft accelerated systems like the AI Mk. IV used by crews around the Battle of Britain period. Parallel American developments at the MIT Radiation Laboratory produced microwave airborne sets integrated on Grumman F6F Hellcat and Vought F4U Corsair night operations. German projects by firms like Telefunken and designers at Reichsluftfahrtministerium yielded radar-equipped versions of the Messerschmitt Bf 110 and Heinkel He 219. Postwar innovations by institutions including RCA, Bell Labs, and Bluedisk advanced pulse-Doppler and monopulse techniques that informed Cold War interceptors from Lockheed and Northrop. Development milestones often involved collaborations with research centers such as MIT, Harvard University, and companies like Westinghouse.

Technical principles and components

Airborne interception radar operates on pulsed radio transmission, echo reception, and signal processing using components like magnetrons, klystrons, receivers, displays, and antennas. Early magnetron sources were refined at Tizard Mission exchanges between the United Kingdom and United States, benefiting laboratories such as Radiation Laboratory and manufacturers including Marconi and Philips. Signal processing incorporated methods developed at Bell Labs and University of Cambridge to reduce clutter and improve range resolution. Antenna designs ranged from wingtip arrays on Bristol Beaufighter to nose radomes on F-86 Sabre and dish scanners on F-4 Phantom II. Displays evolved from cathode‑ray tubes designed by teams at RCA to plan‑position indicators developed with input from Stanford University researchers. Key components included transmitters (magnetron, klystron), duplexers, intermediate frequency amplifiers, azimuth/elevation scanners, and power supplies engineered by firms like General Electric and Siemens.

Operational use and tactics

Tactics for airborne interception integrated radar with navigation and weapons systems across aircraft such as the De Havilland Mosquito, Lockheed F-104 Starfighter, and Sukhoi Su-15. Night fighters used ground-controlled interception guidance from networks like Dowding System and airborne radar operators to vector onto targets during engagements like The Blitz and Korean War night operations. Interceptor doctrine in NATO relied on integrated systems from organizations including NATO command centers, with interceptors coordinated alongside early warning platforms such as the Boeing E-3 Sentry and ground radars like AN/FPS-20. Fire-control integration linked radar data to armament systems including AIM-7 Sparrow, AIM-9 Sidewinder, and internal guns on types like Supermarine Spitfire night fighters. Crews trained with procedures developed at schools run by institutions such as Royal Air Force College Cranwell and USAF Air Command and Staff College.

Notable systems and variants

Famous airborne interception radars and families include British AI series (e.g., AI Mk. IV, AI Mk. VIII), American SCR sets (e.g., SCR-720), German Lichtenstein series, Soviet systems aboard types such as the MiG-21 variants, and Cold War pulse-Doppler suites fitted to F-15 Eagle and MiG-29. Specific notable installations appeared on platforms like the Bristol Beaufighter (AI Mk. IV), De Havilland Mosquito (AI Mk. X), Northrop P-61 Black Widow (SCR-720), and jet interceptors such as the English Electric Lightning (Ferranti systems). Variants included search radars, tracking radars, and fire-control radars produced by companies like Ferranti, RCA, Westinghouse, and Telefunken for use by forces including the Royal Navy, United States Navy, Royal Australian Air Force, and Soviet Air Defence Forces.

Limitations and countermeasures

Limitations of airborne interception radar encompassed range reduction due to radar horizon constraints, ground and sea clutter, and poor low-altitude performance. Countermeasures developed by adversaries included chaff tactics employed during World War II and later electronic warfare suites built by firms like Raytheon and BAE Systems that performed jamming, deception, and home-on‑jam techniques. Radar warning receivers and passive sensors such as Infrared Search and Track (IRST) units on platforms like the Sukhoi Su-27 and F-14 Tomcat reduced dependence on active emissions. Treaties and operations including periods of tension during the Cold War highlighted electronic countermeasure development in laboratories at MIT Lincoln Laboratory and NATO research groups.

Legacy and modern developments

Airborne interception radar paved the way for modern multimode radars integrating synthetic aperture, pulse-Doppler, and AESA technologies developed by corporations including Northrop Grumman, BAE Systems, Lockheed Martin, and Raytheon Technologies. Contemporary fighters such as the F-22 Raptor, F-35 Lightning II, Sukhoi Su-57, and Chengdu J-20 carry advanced active electronically scanned array radars that trace heritage to airborne interception concepts formulated in projects at MIT Radiation Laboratory, Bell Labs, and national research establishments. Legacy training, doctrine, and industrial bases in nations including the United Kingdom, United States, Russia, China, and France continue to evolve airborne detection, sensor fusion, and counter‑countermeasure capabilities for future air superiority and interception missions.
