AN/FPS-20

AN/FPS-20

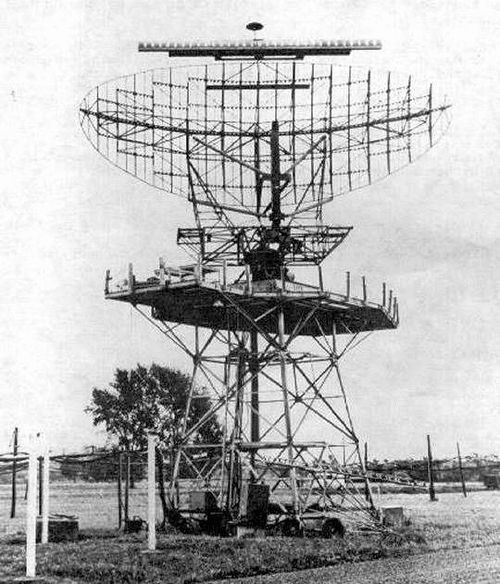

United States Air Force · Public domain · source
Name	AN/FPS-20
Country	United States
Intro date	1950s
Manufacturer	General Electric
Type	Long-range search radar
Frequency	L-band
Range	up to ~200 nmi

AN/FPS-20 The AN/FPS-20 was a United States long-range search radar introduced in the 1950s, developed for continental air defense and integration with early warning networks. It served at numerous North American Aerospace Defense Command positions, supported coordination with Air Defense Command installations, and was adapted for use at sites associated with the Semi-Automatic Ground Environment program and allied facilities in NATO nations.

History and Development

Development began in the early Cold War era as part of post‑World War II rearmament and modernization efforts led by contractors including General Electric and influenced by lessons from the Korean War and radar research conducted during World War II. Requirements were driven by directives from the United States Air Force and planning staffs at Air Defense Command and later integrated into continental warning architectures coordinated with NORAD. The design evolved alongside contemporaneous systems such as the AN/FPS-6 height‑finder and the AN/FPS-24 high‑power search radar, with procurement decisions affected by defense appropriations debated in the United States Congress and program reviews conducted by the Department of Defense.

Design and Technical Specifications

The AN/FPS-20 operated in the L‑band and employed a rotating planar antenna mounted on a radome, following principles refined by wartime radar engineers from projects connected to MIT Radiation Laboratory research and industrial labs at Bell Labs. Its transmitter and receiver assemblies used vacuum‑tube technology common to systems from General Electric and designs influenced by work at MIT Lincoln Laboratory. The system offered an instrumented range of roughly 160–200 nautical miles, a pulse repetition frequency and pulse width selected for long‑range detection, and azimuth coverage achieved by 360° rotation. It interfaced with height‑finder radars like the AN/FPS-6 and command centers modeled on the SAGE plotting and data‑processing architecture developed at IBM‑supported installations.

Operational Use and Deployments

AN/FPS-20 installations were widespread at Air Force Base radar stations, NORAD lines such as the Pinetree Line, the Mid-Canada Line, and many continental defense sites across the United States and Canada. Deployed to both permanent and semi‑permanent stations, it contributed to airspace surveillance during crises including events associated with heightened alert status in the Cuban Missile Crisis and various Cold War stand‑offs. Operators trained at centers aligned with the United States Air Force radar training community and coordinated with interceptor commands and ground‑based air defense units tied to regional headquarters in the Continental Air Defense Command era.

Variants and Upgrades

A range of upgraded models and retrofits extended the system’s service life, incorporating improvements in receiver sensitivity, clutter rejection, and reliability inspired by evolutions in radar theory from laboratories such as Lincoln Laboratory and industrial upgrades by firms like Raytheon and Westinghouse. Variants adapted for gap‑filling, coastal surveillance, or interoperability with data‑link systems saw components replaced or modified to work alongside newer search systems such as the AN/FPS-35 and to feed data into SAGE or later command networks. Internationally, allied operators in Canada, United Kingdom, and Japan received modified units under defense assistance programs and procurement agreements negotiated with the Department of Defense and partner ministries.

Evaluation and Performance

Field evaluations by service test units and operational squadrons assessed detection range, target discrimination, false alarm rates, and maintainability under conditions reported from diverse climates from Arctic stations in Alaska to temperate installations in Florida. Performance analyses compared the AN/FPS-20 against contemporaries like the AN/FPS-24 in terms of reliability metrics, mean time between failures, and logistic footprint. Reports from air defense exercises involving commands such as Air Defense Command and operational research derived from studies at Lincoln Laboratory influenced tactics, techniques, and procedural changes to optimize integration with interceptor forces and command centers.

Legacy and Preservation

Although superseded by solid‑state and phased‑array systems developed by companies including Raytheon and research programs at MIT Lincoln Laboratory, the AN/FPS-20 contributed to doctrine, training, and infrastructure that shaped later networks such as contemporary integrated air and missile defense architectures associated with NORAD modernization. Several decommissioned antenna assemblies and consoles have been preserved at museums and heritage sites connected to aviation and Cold War history, with exhibits curated by organizations including the National Museum of the United States Air Force and regional aviation museums that document radar heritage and technological evolution.
