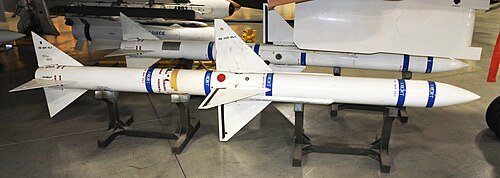

Wilson44691 · CC0 · source
Name	AIM-7 Sparrow
Type	Semi-active radar homing air-to-air missile
Origin	United States
Manufacturer	Hughes Aircraft Company, Raytheon
Service	1954–present (limited)
Used by	United States Air Force, United States Navy, Royal Air Force, Israeli Air Force, Luftwaffe, Japan Air Self-Defense Force
Weight	231 kg (Variant-dependent)
Length	3.66 m
Diameter	203 mm
Wingspan	0.94 m
Speed	Mach 4 (approx.)
Range	23–40 km (varies by variant)
Guidance	Semi-active radar homing
Filling	Blast-fragmentation warhead
Detonation	Proximity and contact fuzes

AIM-7 Sparrow The AIM-7 Sparrow is an American medium-range, semi-active radar homing air-to-air missile developed in the early Cold War and fielded across multiple conflicts and air arms. It formed a cornerstone of beyond-visual-range engagement doctrine for United States Air Force, United States Navy, and numerous allied air forces including Royal Air Force, Israeli Air Force, and Japan Air Self-Defense Force. Designed initially by Hughes Aircraft Company and later produced by Raytheon Technologies subsidiaries, the Sparrow evolved through several families of improvements in propulsion, guidance, and fuzing.

Development

Development began in the late 1940s within United States Navy research circles and continued through collaborative programs involving Hughes Aircraft Company, Western Electric, and later Raytheon. Early research drew on technology from V-2 rocket studies, German aerospace émigrés, and post‑war projects at Naval Ordnance Test Station and Aerophysics Research Center. Formal adoption followed trials with prototype systems integrated on platforms such as the F7U Cutlass and later operational acceptance by United States Air Force and United States Navy squadrons. Iterative development responded to operational lessons from engagements over Vietnam War airspaces and from test campaigns at facilities including China Lake and White Sands Missile Range.

Design and specifications

The Sparrow family used a mid‑body cruciform wing and tail arrangement coupled with solid‑fuel rocket propulsion produced by contractors tied to Solid Rocket Motor programs. Guidance relied on semi-active radar homing requiring target illumination from platforms like the F-4 Phantom II, F/A-18 Hornet, or airborne radar assets such as E-3 Sentry. Warheads employed blast‑fragmentation designs with proximity fuzes refined under programs involving Naval Research Laboratory and ordnance designers associated with Sandia National Laboratories. Avionics suites integrated with fire‑control systems produced by Hughes Aircraft Company, Westinghouse Electric Corporation, and later Raytheon Company. Physical specifications varied across models; later variants increased seeker sensitivity, propulsion efficiency, and reliability to meet evolving requirements from NATO partners including Bundeswehr and Royal Australian Air Force.

Operational history

Sparrow variants saw combat in the Vietnam War, where platforms such as McDonnell Douglas F-4 Phantom II recorded mixed outcomes influenced by rules of engagement and countermeasure environments. Operators included Israeli Air Force during conflicts like the Yom Kippur War and engagements over Lebanon, and NATO forces during Cold War patrols over the North Atlantic Treaty Organization area and the Berlin Crisis era. Sparrow employment evolved with doctrine promulgated by institutions like United States Naval War College and Air University, and later interoperability exercises such as Red Flag and RIMPAC. Incidents and evaluations influenced procurement decisions by ministries such as Ministry of Defence (United Kingdom) and defense establishments in Canada and Italy.

Variants

Major families included early Sparrow I models adopted in the 1950s, follow‑on Sparrow II and Sparrow III series, and improved production blocks developed by Raytheon and successor contractors. Export and license variants were integrated into fleets of Royal Australian Air Force, Luftwaffe, Royal Netherlands Air Force, and Turkish Air Force aircraft. Each variant introduced seeker upgrades, improved rocket motors, and compatibility with specific launchers and avionics suites developed in cooperation with firms like McDonnell Aircraft, Boeing Defense, and Northrop Grumman.

Launch platforms and deployment

Sparrows were deployed from a wide array of fighters and interceptors including the McDonnell Douglas F-4 Phantom II, Grumman F-14 Tomcat (with compatible semi-active illumination), McDonnell Douglas F/A-18 Hornet, Panavia Tornado ADV, and export types such as the Dassault Mirage III and Saab 35 Draken. Naval deployments involved integrations with carrier air wings aboard USS Enterprise (CVN-65), USS Nimitz (CVN-68), and allied carriers from Royal Navy and Royal Australian Navy. Ground‑based test and training launches occurred at ranges including Pacific Missile Range Facility and Eglin Air Force Base.

Performance and countermeasures

Performance metrics—range, speed, kill probability—varied by variant and engagement conditions; later Sparrow blocks achieved improved seeker sensitivity and engagement envelopes compatible with beyond‑visual‑range doctrine advocated by NATO planners. Operational effectiveness was challenged by electronic countermeasures from systems fielded by adversaries including radar jamming suites tied to platforms flown by forces during the Vietnam War and later conflicts. Countermeasures and tactics evolved through integration with airborne warning systems like E-3 Sentry and passive detection from platforms such as EA-6B Prowler, while electronic warfare developments at institutions like Duke University’s research programs and industrial labs at MIT Lincoln Laboratory influenced successive upgrades.
