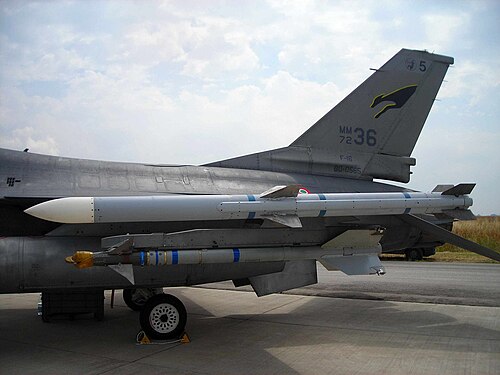

Air-to-air missiles

Air-to-air missiles
SCDBob · CC BY-SA 2.5 · source
Name	Air-to-air missiles
Origin	Various
Type	Guided weapon
Service	1935–present
Used by	United States Air Force, Royal Air Force, Soviet Air Forces, People's Liberation Army Air Force, Israeli Air Force, Indian Air Force
Wars	World War II, Korean War, Vietnam War, Yom Kippur War, Falklands War, Gulf War, Russo-Ukrainian War
Designer	Various
Manufacturer	Raytheon Technologies, MBDA, Sukhoi, Lockheed Martin, Thales Group
Filling	High-explosive fragmentation, proximity-fuzed
Engine	Rocket motor, ramjet, ducted rocket
Guidance	Infrared homing, active radar homing, semi-active radar homing, passive radar homing

Air-to-air missiles are guided weapons launched from aircraft to engage other airborne targets. They evolved from unguided air-to-air rockets and early guided designs into sophisticated multi-sensor weapons used by modern aeronautical forces. Development, employment, and countermeasure interactions have shaped aerial combat doctrine across conflicts and procurement programs.

History and development

Early efforts in the 1930s–1940s produced unguided rockets and experimental guided weapons such as those trialed by German Empire, United Kingdom, and United States programs during World War II. Postwar developments in the Cold War era accelerated missile technology through projects like the AIM-4 Falcon, Vympel K-13, and Sidewinder lineage, influenced by research at institutions including Los Alamos National Laboratory and companies such as Hughes Aircraft Company and De Havilland. The Korean War and Vietnam War exposed limitations of early heat-seeking and radar-guided designs, prompting advances exemplified by the AIM-9 Sidewinder, AIM-7 Sparrow, and Soviet R-13 families. By the late 20th century, programs such as the AIM-120 AMRAAM and European Meteor embodied networked datalink, active seekers, and long-range propulsion, informing modern procurement by services like the Royal Australian Air Force and French Air and Space Force.

Design and components

A missile airframe integrates a guidance section, seeker head, warhead, propulsion unit, control surfaces, and onboard avionics developed by firms including Northrop Grumman, MBDA, and Alenia Aermacchi. Warheads are typically high-explosive fragmentation with proximity fuzes developed in cooperation with laboratories such as Sandia National Laboratories and agencies like Defense Advanced Research Projects Agency. Seeker technologies employ infrared sensors from suppliers such as BAE Systems and active radar seekers derived from systems implemented by Raytheon Technologies. Launch interfaces, pylons, and fire-control integration involve platforms including McDonnell Douglas F-15 Eagle, Sukhoi Su-27, Eurofighter Typhoon, and avionics suites produced by Honeywell International.

Guidance and propulsion systems

Guidance modes include passive infrared homing pioneered in China Lake, semi-active radar homing reliant on platforms like AN/APG-63 radar, active radar homing enabling fire-and-forget capabilities exemplified by the AIM-120, and dual-mode seekers combining infrared and radar elements produced by consortia including MBDA and Thales Group. Propulsion ranges span solid-propellant rocket motors common to AIM-9 Sidewinder-class short-range missiles, to ramjet and ducted rocket engines enabling sustained thrust for beyond-visual-range systems such as the Meteor. Guidance algorithms and seekers leverage research from institutions such as Massachusetts Institute of Technology, Imperial College London, and Moscow Institute of Physics and Technology to implement proportional navigation, beam riding, and terminal homing.

Types and classifications

Missiles are classified by role and range: short-range within-visual-range (WVR) missiles like the AIM-9 Sidewinder, medium-range semic-active models such as the AIM-7 Sparrow, and beyond-visual-range (BVR) active designs including the AIM-120 AMRAAM and R-77. Specialized types include man-portable air-to-air adaptations used historically in conflicts involving Hezbollah and other irregular actors, navalized variants integrated with carriers like HMS Queen Elizabeth, and specialized interceptors for high-altitude threats developed by programs at Khrunichev State Research and Production Space Center. Classification also considers seeker type, kinematic envelope, and guidance architecture employed by systems fielded by organizations such as NATO and the Shanghai Cooperation Organisation.

Operational use and tactics

Tactics integrate missile employment with sensors on platforms such as F-22 Raptor, Dassault Rafale, and MiG-29 flights, using datalinks exemplified by Link 16 and rules of engagement set by commands like United States European Command. Engagement doctrines include head-on intercepts, tail-chase shots, defensive counterair sorties, and beyond-visual-range engagements coordinated in battles such as Operation Desert Storm. Training and live-fire evaluation occur at ranges like Nellis Air Force Base and facilities operated by Royal Air Force training units, while multinational exercises such as Red Flag and Top Gun refine tactics against electronic warfare and decoy systems fielded by adversaries.

Countermeasures and survivability

Countermeasure families include flares developed for infrared threats by manufacturers like BAE Systems and chaff bundles countering radar seekers fielded since World War II innovations. Electronic warfare suites provided by Northrop Grumman and BAE Systems enact jamming, deception, and low-observable tactics used by platforms including F-35 Lightning II and Su-57. Defensive maneuvering doctrines derive from studies at RAND Corporation and experiments during Vietnam War air combat studies, while stealth, signature management, and tactics coordinated with assets such as E-3 Sentry AWACS reduce missile acquisition and engagement effectiveness.

Safety, legal and ethical considerations

Employment of missile systems touches legal regimes and ethical debates involving organizations such as United Nations bodies, International Court of Justice, and arms-control fora including the Conference on Disarmament. Safety protocols for storage, transport, and live-fire testing adhere to standards developed by agencies like NATO and national authorities including the United States Department of Defense. Controversies over collateral damage, rules of engagement, and proliferation engage scholars at institutions such as Harvard Kennedy School and think tanks like Center for Strategic and International Studies.
