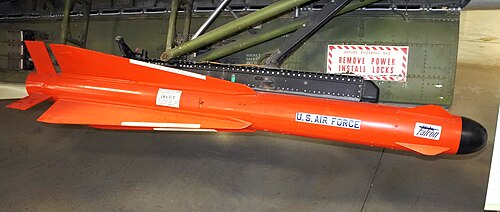

Wilson44691 · CC0 · source
Name	AIM-4 Falcon
Origin	United States
Type	Air-to-air missile
Service	1956–1978
Used by	United States Air Force
Designer	Hughes Aircraft Company
Design date	1949–1956
Manufacturer	Hughes Aircraft Company
Production date	1956–1967
Weight	45–145 lb
Length	8–10 ft
Diameter	6 in
Warhead	High explosive blast-fragmentation
Guidance	Infrared homing / Semi-active radar homing
Detonation	Proximity / Contact

AIM-4 Falcon The AIM-4 Falcon was an American short-range, air-to-air missile developed in the early Cold War era for interceptors such as the Convair F-102 Delta Dagger and McDonnell F-101 Voodoo. Designed and built by the Hughes Aircraft Company, it featured compact dimensions, small warheads, and both infrared and radar-guided variants intended to counter fast, high-altitude threats during the 1950s and 1960s. The Falcon became notable for its service with the United States Air Force and its controversial combat record during the Vietnam War.

Development and Design

Hughes began development under contracts from the United States Air Force in the late 1940s, paralleling work at North American Aviation and Lockheed Corporation on guided weapons for interceptors like the Convair F-106 Delta Dart and the Northrop F-89 Scorpion. The Falcon program sought a lightweight missile compatible with radar-equipped interceptors deployed within Air Defense Command and strategic airspace protection systems tied to NORAD. Early design choices emphasized low drag and small cross-section to fit internal bays and wing pylons on aircraft such as the Lockheed F-104 Starfighter and the McDonnell F-4 Phantom II conversion studies. Guidance options included semi-active radar homing leveraging radar sets from Westinghouse Electric Corporation and passive infrared seekers derived from research at Hughes Research Laboratories and influenced by work at Raytheon Company.

Operational History

The Falcon entered service in the mid-1950s with units assigned to Air Defense Command bases and strategic air defenses around installations like Wright-Patterson Air Force Base and Nellis Air Force Base. Falcon-armed interceptors were deployed during Cold War crises tied to incidents such as the Cuban Missile Crisis readiness posture. During the Vietnam War, Falcons were carried by aircraft including the Lockheed F-104 Starfighter in allied air forces and by USAF platforms operating over Southeast Asia, where the missile’s small warhead and seeker limitations were exposed against agile targets and in complex environments that included the North Vietnamese Air Force and anti-aircraft threats. Operational evaluations involved participation from units such as the 1st Fighter Wing and testing at Edwards Air Force Base.

Variants and Modifications

The line included infrared-guided AIM-4B and AIM-4C versions, radar-guided AIM-4D and AIM-4E models, and later AIM-4F/G variants with improved seekers and rocket motors aimed at platforms like the Convair F-102 Delta Dagger and testbeds at NASA Ames Research Center. Modifications sought to address seeker cooling, countermeasure susceptibility, and warhead lethality; programs involved subcontractors such as General Electric and Bendix Corporation. Some Falcons were adapted into training rounds and target drones for units at Holloman Air Force Base and research efforts with Pratt & Whitney propulsion updates. Experimental integrations considered on aircraft from Northrop Grumman and international users including the Royal Australian Air Force and Royal Canadian Air Force.

Technical Specifications

Basic specifications varied by variant, but typical parameters included dimensions and performance values comparable to contemporary systems from AIM-9 Sidewinder-era programs. Missiles used solid-fuel rocket motors produced by firms like Thiokol and featured proximity fuzes developed in collaboration with laboratories including Los Alamos National Laboratory. Guidance suites combined electronics and cooling systems from suppliers such as Hamilton Standard and Honeywell International. The Falcon’s small blast-fragmentation warhead contrasted with larger payloads fielded on missiles from Vought and Boeing projects, affecting kill probability in fragmentation and kinetic intercept regimes.

Combat Performance and Evaluation

Combat experience, especially during the Vietnam War, exposed limitations: infrared seekers had narrow acquisition cones compared with contemporary AIM-9 Sidewinder seekers developed by William B. McLean’s teams, while radar-guided variants struggled in ground-cluttered littoral environments examined in studies at RAND Corporation. Analyses by the United States Air Force Tactical Air Command and post-conflict reviews by panels including members from DARPA and the Institute for Defense Analyses concluded that the Falcon’s small warhead, limited seeker field-of-view, and launch constraints reduced effectiveness against maneuvering fighters like those flown by the Vietnam People's Air Force. These findings influenced procurement shifts to missiles such as the AIM-9L Sidewinder and short-range variants developed by Raytheon.

Operators and Service Use

Primary operator was the United States Air Force, with Falcons deployed across interceptor squadrons within Air Defense Command and later units under Tactical Air Command and Pacific Air Forces. Export and limited foreign use occurred with air arms including the Royal Australian Air Force and evaluations by NATO partners in programs coordinated at Ramstein Air Base and NATO Airborne Early Warning planning forums. Retirement from frontline USAF service occurred by the late 1970s as replacement missiles and changing doctrine around air superiority and beyond-visual-range engagements rendered the Falcon obsolete.
