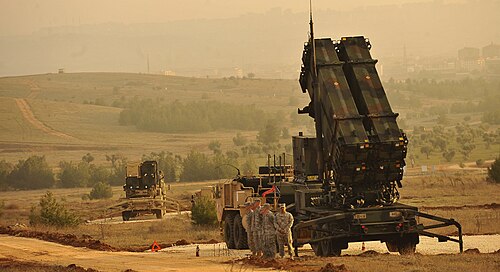

Caption	A Patriot launching station
Type	Surface-to-air missile system
Origin	United States
Used by	See List of MIM-104 Patriot operators
Designer	Raytheon, Lockheed Martin
Design date	1960s onward
Production date	1980–present
Service	1981–present
Variants	See #Variants and upgrades

MIM-104 Patriot. It is a long-range, all-altitude, all-weather air defense system designed to counter tactical ballistic missiles, cruise missiles, and advanced aircraft. Developed by Raytheon and now co-produced with Lockheed Martin, the system entered service with the United States Army in the early 1980s. It has since become a cornerstone of NATO and allied air defense networks, with operational deployments in multiple conflicts and regions worldwide.

Development and history

The system's origins trace back to the 1960s as part of the Army Air Defense System for the 1970s program, intended to replace the MIM-23 Hawk and Nike Hercules systems. Key development milestones were achieved at facilities like the White Sands Missile Range under the oversight of the United States Army Aviation and Missile Command. The project faced significant technical challenges, particularly in radar and missile guidance, which were addressed through extensive testing. Its initial operational capability was declared in 1984, with the system first seeing combat use during the Gulf War in 1991, where it was tasked with intercepting Iraqi Army Scud missiles.

System components

The primary components include the AN/MPQ-53 or upgraded AN/MPQ-65 radar set, an Engagement Control Station, an Electric Power Plant, and up to eight launching stations. Each launching station holds four ready-to-fire missile round canisters, with the interceptor itself being a solid-fuel, single-stage rocket. The system employs a track-via-missile guidance method, where the ground radar tracks both the target and the interceptor, sending mid-course updates until the missile's own seeker activates for terminal homing. Support vehicles and maintenance equipment are integrated through the Patriot Information Coordination Central.

Operational deployment

The system is operated by the United States Army and numerous allied nations, including Germany, Japan, Israel, and Saudi Arabia. Major deployments include Operation Desert Storm, the 2003 invasion of Iraq, and ongoing defensive postures in the Middle East, such as in Saudi Arabia and the United Arab Emirates. Elements have also been deployed to protect NATO allies, including Poland and Romania, as part of alliance assurance measures. Training and exercises are routinely conducted at locations like Fort Sill and the Tactical Air Defense Center.

Variants and upgrades

The original system, the Patriot PAC-1, was primarily an anti-aircraft system. The significant upgrade to Patriot PAC-2 introduced a new fuse and warhead optimized for theatre ballistic missile defense, first used in the Gulf War. The Patriot PAC-3 configuration features the hit-to-kill PAC-3 Missile Segment Enhancement interceptor, developed by Lockheed Martin, which replaced the blast-fragmentation warhead. Subsequent modernizations, like the Post-Deployment Build program, have improved the AN/MPQ-65 radar's software and resistance to electronic countermeasures. Future integration efforts focus on compatibility with the IBCS and other elements of the Integrated Air and Missile Defense architecture.

Combat performance and evaluation

Its combat debut during the Gulf War was highly publicized, with initial claims of high success rates against Scud missiles; subsequent analyses by the House Armed Services Committee and studies like the General Accounting Office report significantly revised these estimates downward. Performance in later conflicts, including Operation Iraqi Freedom, has been subject to similar scrutiny and debate among analysts. Successful engagements have been reported by Israel during operations like Protective Edge against threats from Hamas and Palestinian Islamic Jihad. The system's effectiveness against modern threats like loitering munitions and advanced cruise missiles continues to be evaluated through live-fire tests and real-world intercepts in the Red Sea and Persian Gulf regions.
