Gregorian telescope

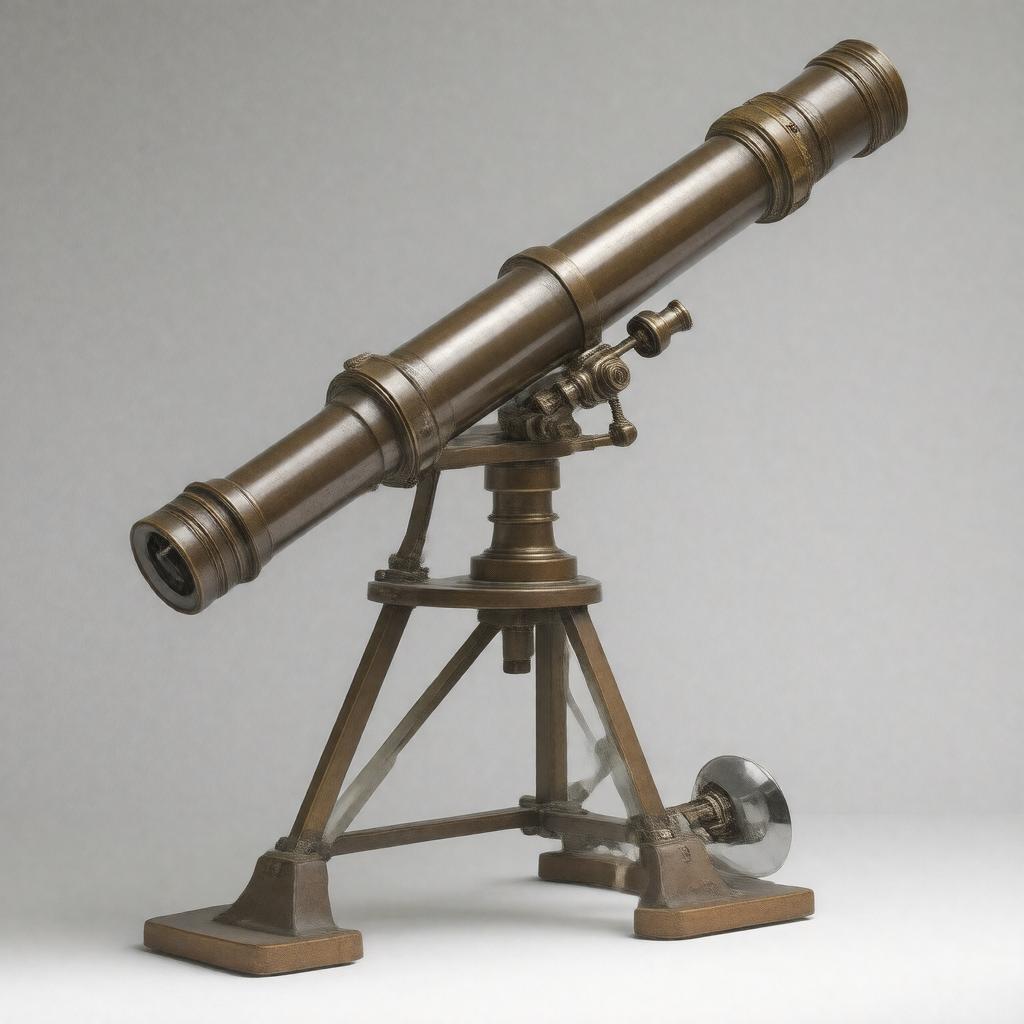

Gregorian telescope. The Gregorian telescope is a type of reflecting telescope first designed in the 17th century by the Scottish mathematician James Gregory. It employs a concave primary mirror with a parabolic shape and a smaller concave secondary mirror placed beyond the prime focus, which reflects the light back through a hole in the primary to the eyepiece. This configuration produces an upright image, which made it historically useful for terrestrial observation, and it represents an important early design in the development of astronomical optics.

Design and optical configuration

The optical design features a primary mirror, typically with a parabolic figure, that collects light and converges it to a prime focus. A concave secondary mirror, with an ellipsoidal shape, is positioned beyond this focal point to intercept the converging beam. This secondary reflects the light back toward the primary mirror, passing through a central aperture to reach the eyepiece located at the rear of the instrument. The overall optical path results in a long physical tube relative to its focal length and produces a final image that is correctly oriented, unlike the inverted views common in many astronomical telescopes. Key figures in analyzing its optics included contemporaries like Isaac Newton and later opticians such as John Hadley.

Historical development

The concept was first published by James Gregory in his 1663 work *Optica Promota*, predating the practical constructions of both the Newtonian telescope and the Cassegrain telescope. Gregory himself was unable to procure a craftsman capable of fabricating the precise mirrors, notably failing to engage the renowned London optician Richard Reeve. The first successful functional Gregorian was built not by Gregory, but by Robert Hooke in 1673, based on Gregory's specifications. The design saw significant refinement and popularization in the 18th century by makers like James Short of Edinburgh and later by the famed firm of Dollond. It became a standard design for many observatories, including early instruments at the Royal Greenwich Observatory.

Comparison with other reflecting telescopes

Compared to the Newtonian telescope, which uses a flat diagonal secondary, the Gregorian produces an upright image and places the eyepiece at the rear, offering more comfortable viewing for terrestrial use. Against the Cassegrain telescope, which uses a convex secondary, the Gregorian's concave secondary yields a longer optical tube and different aberration corrections. The Gregorian design generally has a narrower field of view than a comparable refracting telescope of the era. The Ritchey–Chrétien telescope, a modern variant of the Cassegrain, offers superior off-axis performance for wide-field imaging, an area where the classical Gregorian form is limited. The Herschelian telescope, a single-mirror design by William Herschel, avoided the central obstruction inherent in Gregorian and Cassegrain systems.

Applications and notable examples

Throughout the 18th and early 19th centuries, Gregorian telescopes were widely employed for both astronomical and terrestrial purposes by institutions and wealthy amateurs. Notable examples include the instruments used by Johann Franz Encke at the Berlin Observatory and the large telescope constructed for the Armagh Observatory in Ireland. The design was also adapted for use in solar telescopes, such as those built for studying sunspots. In the modern era, while largely supplanted by other designs for professional astronomy, the Gregorian configuration has seen specialized use in some radio telescope systems, including certain designs within the Arecibo Observatory and the Green Bank Telescope.

Advantages and limitations

The principal advantages of the Gregorian design include its production of an erect image, its closed tube which reduces air currents and protects the optics, and the accessibility of the eyepiece at the instrument's base. Its optical layout is also amenable to installing instrumentation behind the primary mirror. Key limitations historically involved the difficulty of fabricating two precise concave mirrors, particularly the ellipsoidal secondary, and the challenge of achieving good optical alignment. The design suffers from greater off-axis aberrations like coma compared to later reflecting systems, and the central obstruction of the secondary mirror reduces contrast and light grasp relative to unobstructed designs.
