Newtonian telescope

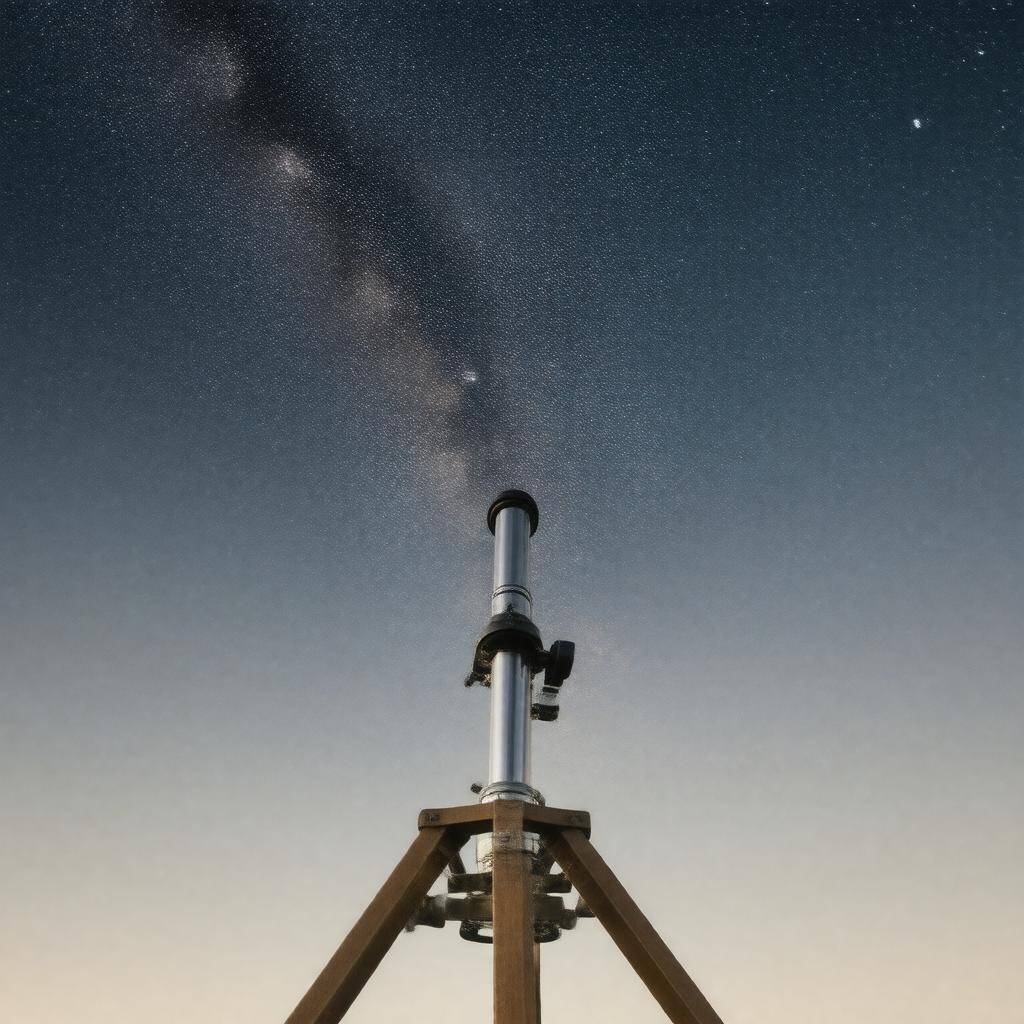

Newtonian telescope. The Newtonian telescope is a type of reflecting telescope invented by the English scientist Isaac Newton in 1668, using a concave primary mirror and a flat secondary mirror to reflect the image to an eyepiece mounted on the side of the optical tube. This design was Newton's revolutionary solution to the problem of chromatic aberration inherent in the refracting telescopes of his era, such as those used by Galileo Galilei. Its simple, effective optical layout made large-aperture astronomy more practical and it remains a highly popular design for amateur astronomers and instrument builders worldwide.

Design and optical principles

The fundamental optical arrangement employs a parabolic primary mirror situated at the base of the optical tube to gather and focus incoming light. This focused light is directed toward the focal plane, where it is intercepted by a flat secondary mirror, often called a diagonal, positioned at a 45-degree angle inside the optical tube assembly. The secondary mirror reflects the converging light cone sideways to a focal point outside the tube, where an eyepiece is located for viewing. This configuration places the focal point in a convenient location, a principle also utilized in larger professional instruments like the Hale Telescope at Palomar Observatory. The absence of refractive elements eliminates chromatic aberration, a significant issue in lenses described by scientists like John Dollond. The optical performance is primarily governed by the figure and smoothness of the primary mirror's surface, a craft perfected by opticians such as John Hadley.

Historical development

Isaac Newton constructed his first working reflector in 1668, basing his design on earlier theoretical work by James Gregory and suggestions from the Royal Society. Newton's motivation stemmed from his experiments with prisms and his incorrect conclusion that chromatic aberration in lenses was insurmountable, a view later challenged by the work of Chester Moore Hall. He presented his "New Telescope" to the Royal Society in 1672, an event recorded in the Philosophical Transactions of the Royal Society. Early adopters and improvers included the scientist John Hadley, who presented a much-improved model to the Royal Society in 1721. The design's potential for large apertures was fully realized centuries later with instruments like the Mount Wilson Observatory reflectors and the historic Hubble Space Telescope, though it uses a different optical layout. The Newtonian's simplicity catalyzed the work of amateur telescope makers like John Dobson.

Advantages and disadvantages

Key advantages include its freedom from chromatic aberration, relatively simple and low-cost optical fabrication compared to refractors or complex reflectors like the Cassegrain reflector, and a short optical tube length for a given focal length, enhancing portability. This made it the design of choice for pioneering large telescopes, including those at the Lick Observatory. Its main disadvantages are coma, an off-axis aberration that distorts star images, and the obstruction and diffraction caused by the secondary mirror and its support, which reduces contrast. The viewing position at the front of the tube can become awkward for large instruments pointed near the zenith, a problem addressed by designs like the truss tube Dobsonian. Furthermore, the open tube can allow air currents and dust to degrade the mirror's performance, unlike sealed systems such as the Schmidt camera.

Variations and derivatives

Several significant optical variations exist, often modifying the secondary mirror system or the primary mirror's shape. The Dobsonian telescope mounts a large-aperture optical tube assembly on a simple, low-cost altazimuth mount, popularized by John Dobson of the San Francisco Sidewalk Astronomers. The Jones-Bird telescope uses a spherical primary with a correcting lens. Some designs, like certain Schmidt-Newtonian telescope systems, incorporate a Schmidt corrector plate at the front of the tube to correct spherical aberration and provide a wider field, a concept pioneered at the Hamburg Observatory. Professional astronomy has largely moved to other designs like the Ritchey–Chrétien telescope used in the Hubble Space Telescope and the Keck Observatory, but the Newtonian principle remains foundational.

Construction and amateur building

Amateur construction is a widespread and historic practice, central to the amateur astronomy movement. The process typically involves grinding, polishing, and figuring a glass blank to create the parabolic primary mirror, a technique detailed in classic texts like "Amateur Telescope Making" from Scientific American. The optical tube assembly is often built from materials like sonotube or aluminum, mounted on a custom or commercial mount, such as an equatorial mount or the aforementioned Dobsonian style. Organizations like the Astronomical League and local clubs often host "mirror grinding" workshops. Famous amateur builders include John Dobson and Russell Porter, a founder of the Stellafane convention in Springfield, Vermont. The affordability and educational value of building one continue to fuel its popularity for observing targets from Lunar craters to deep-sky objects like the Orion Nebula. Category:Reflecting telescopes Category:Newtonian telescopes Category:Telescope types
