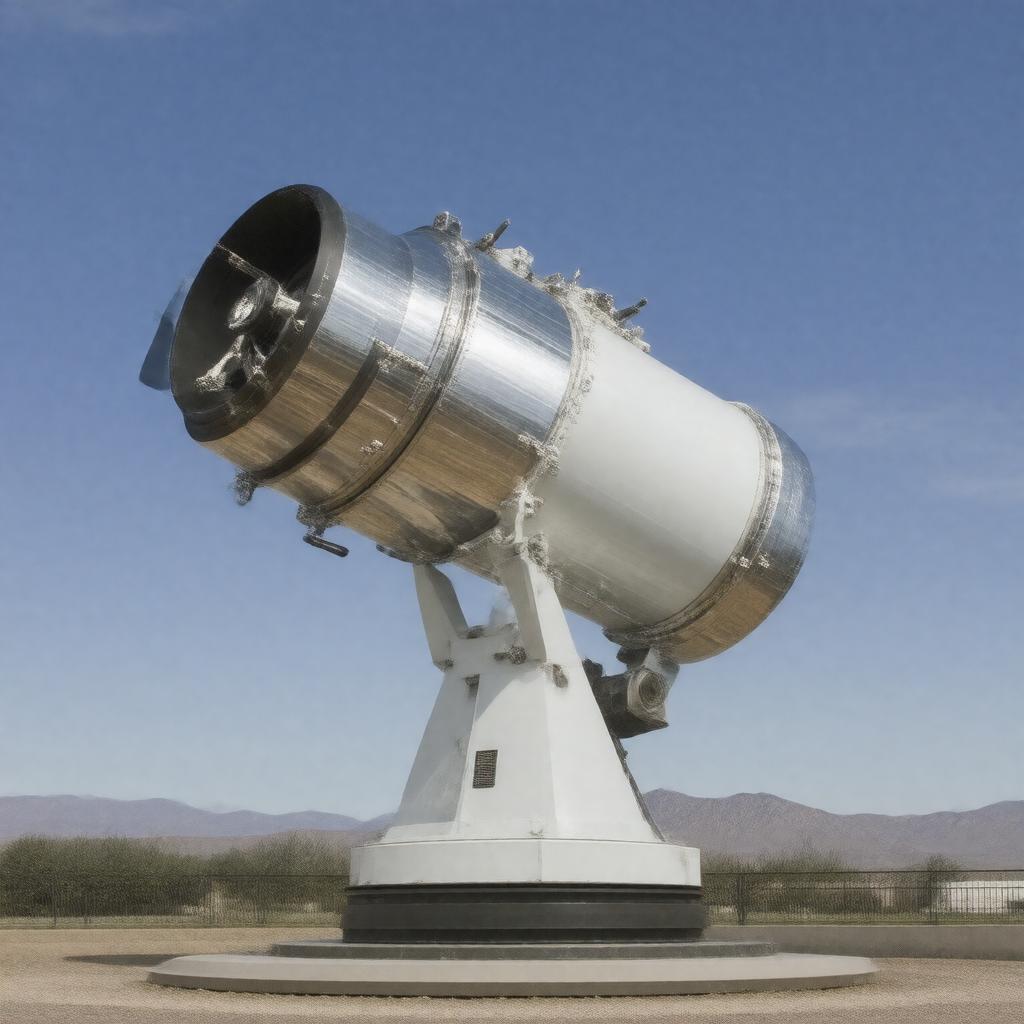

Cassegrain telescope

Cassegrain telescope. The Cassegrain telescope is a type of reflecting telescope that employs a two-mirror system to fold the optical path, creating a compact and versatile instrument. Its design features a concave primary mirror with a central hole and a convex secondary mirror that reflects light back through the aperture. This configuration is foundational for many modern astronomical and telephoto systems, offering a long effective focal length within a relatively short physical tube.

Design and optical configuration

The fundamental optical layout utilizes a parabolic or spherical primary mirror at the rear of the optical tube. Positioned near the front is a smaller, convex secondary mirror, typically of a hyperbolic shape, which reflects the converging light cone back through a central perforation in the primary. This folded path results in the focal plane being located behind the primary, where instruments like CCD cameras or eyepieces can be mounted. The design is a specific form of a two-mirror catoptric system, distinct from the single-mirror Newtonian telescope or the three-mirror anastigmat. Key optical parameters are defined by the curvature and conic constant of both mirrors, which control the correction of optical aberrations such as coma and astigmatism.

Historical development

The design is named after the French Catholic priest and probable inventor Laurent Cassegrain, who described the concept in 1672. His proposal emerged within the vibrant scientific correspondence of the era, notably intersecting with the work of contemporaries like Isaac Newton on the Newtonian telescope and James Gregory on the Gregorian telescope. For centuries, the design remained largely theoretical due to the immense difficulty of fabricating the required convex hyperbolic secondary mirror with precision. It was not until advances in 19th-century optical manufacturing, partly driven by figures like Léon Foucault, that practical instruments could be constructed. The design's modern prominence was secured in the 20th century with its adoption for major observatory instruments and later for space telescope applications.

Variations and derivatives

Numerous refined variants have been developed to optimize performance for specific applications. The Ritchey–Chrétien telescope, invented by George Willis Ritchey and Henri Chrétien, uses hyperbolic figures on both primary and secondary mirrors to eliminate coma, making it the standard for professional astrographs like the Hubble Space Telescope. The Dall–Kirkham telescope, devised by Horace Dall and Allan Kirkham, employs an elliptical secondary for easier manufacture, often at the cost of increased field curvature. Other significant adaptations include the Maksutov–Cassegrain telescope and the Schmidt–Cassegrain telescope, which incorporate corrector plates to further minimize aberrations and are popular in commercial amateur astronomy. Specialized military and scientific instruments, such as those used in satellite communication or laser radar, also frequently employ Cassegrain-derived optics.

Applications and performance

This telescope family is ubiquitous in both professional and amateur astronomy due to its compact form. Major ground-based observatories, including the Keck Observatory and the Very Large Telescope array, use Ritchey–Chrétien configurations for wide-field imaging and spectroscopy. The design is also standard for space-based observatories, with prominent examples being the Hubble Space Telescope, the James Webb Space Telescope, and the Gaia mission. Beyond astronomy, the configuration is critical in telephoto lens designs for photography, long-range surveillance systems, and as the collector for radio telescopes like the Green Bank Telescope. Its performance is characterized by a narrow field of view with excellent on-axis resolution, high contrast for planetary observation, and a stable, accessible focal plane ideal for mounting heavy instrumentation.

Advantages and limitations

Primary advantages include a long effective focal length within a short mechanical length, enhancing portability and structural rigidity. The closed-tube design protects optics from air currents and contaminants, and the rear-facing focal position allows for easy integration of large auxiliary equipment like spectrographs. However, inherent limitations exist. The central obstruction from the secondary mirror reduces contrast and theoretical diffraction-limited performance compared to an unobstructed aperture. Many classical configurations suffer from significant off-axis aberrations like coma, limiting the usable field of view, a problem addressed by specialized variants. Furthermore, precise alignment, or collimation, of the two mirrors is critical and can be more sensitive than in simpler designs like the Newtonian telescope.
