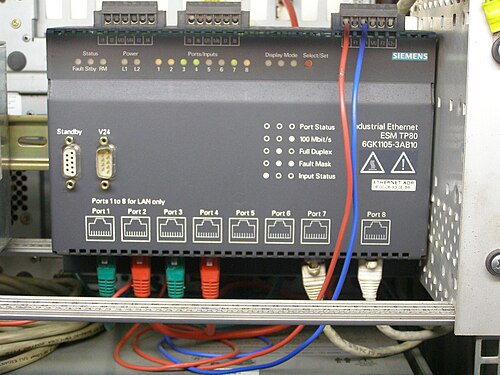

Mixabest · Public domain · source
Name	Industrial Ethernet
Type	Fieldbus / Industrial Network
Developer	Various industrial consortia and vendors
First release	1990s

industrial Ethernet

Industrial Ethernet refers to adaptations of Ethernet technologies for use in industrial environments such as manufacturing plant, power generation, oil refinery, and transportation systems. It combines physical and data-link layer implementations, real-time protocols, hardened hardware, and deterministic topologies to meet requirements of automation, process control, and safety-critical systems. Industrial Ethernet links commercial IEEE 802 standards with sector-specific specifications developed by organizations including ODVA, PROFIBUS International, FieldComm Group, PI (organization), and IEC committees.

Overview

Industrial Ethernet adapts Ethernet for harsh conditions, deterministic timing, and integration with legacy industrial protocols such as PROFIBUS, Modbus, and DeviceNet. Devices include industrial switches, routers, media converters, PLC interfaces, and ruggedized Ethernet cable assemblies. Major vendor ecosystems include Siemens, Rockwell Automation, Schneider Electric, ABB, and Moxa, which provide hardware and software conforming to standards from bodies like IEEE, IEC, and industry consortia such as EtherNet/IP proponents and PROFINET groups.

History and Development

Early industrial networking used serial fieldbuses such as RS-232, RS-485, and proprietary networks from Modicon and Allen-Bradley. The move to packet-based networks followed the rise of Digital Equipment Corporation and Intel-based Ethernet in the 1980s and the publication of IEEE 802.3. Through the 1990s industrial suppliers like Siemens and Rockwell Automation adapted Ethernet, while consortia including ODVA and PROFIBUS International created profiles. Significant milestones include IEC working group publications, the formation of EtherNet/IP specifications, and adoption by industries regulated by agencies such as U.S. Department of Energy and European Commission directives affecting industrial safety and interoperability.

Technologies and Standards

Industrial Ethernet implementations reference IEEE 802.3 for physical and MAC layers while layering industrial protocols such as EtherNet/IP, PROFINET, Modbus TCP, DNP3, and HART-IP for application needs. Time-critical variants use IEEE standards like IEEE 1588 (Precision Time Protocol) and IEEE 802.1Q (VLANs) plus IEEE 802.1AS for timing; manufacturers implement PROFINET IRT and Time-Sensitive Networking (TSN) profiles. Harsh-environment hardware follows standards from IEC 60529 (IP codes), IEC 60068 (environmental testing), and ATEX/IECEx for explosive atmospheres. Security references include frameworks and guidance from NIST, IEC 62443, and ISO documents.

Network Architectures and Topologies

Topologies include star, ring, mesh, and linear/drop-line tailored to redundancy and determinism demands. Redundancy protocols include Rapid Spanning Tree Protocol (RSTP), Media Redundancy Protocol (MRP), High-availability Seamless Redundancy (HSR), and Parallel Redundancy Protocol (PRP) used in substation automation and rail signalling. Integration with SCADA and DCS uses hierarchical and flattened architectures connecting PLCs, RTUs, HMIs, and historian systems from vendors such as Emerson, Honeywell, and General Electric.

Applications and Use Cases

Industrial Ethernet is used across industries including automotive manufacturing, pharmaceutical manufacturing, oil and gas, mining, water treatment, electric utilities, railways, and aerospace production. Use cases range from motion control and robotic cell coordination in assembly lines to remote monitoring of pipeline networks, substation protection, and building automation integrating BACnet gateways. Systems often connect to enterprise IT stacks including SAP, Microsoft Windows Server, and Oracle for asset management and analytics.

Performance, Reliability, and Safety

Determinism and low latency are achieved through real-time protocols and TSN features such as scheduled traffic and frame preemption per IEEE 802.1Qbv and IEEE 802.1Qbu. Reliability uses redundant media, industrial-grade fibers, and hardened switches meeting MIL-STD-810 and IEC 61850 for power utilities. Safety-critical communications rely on safety protocols like PROFIsafe and CIP Safety and certifications from bodies including TÜV and UL. Cybersecurity and functional safety converge in standards-driven practices from IEC 62443 and ISO 26262 for automotive-related control systems.

Implementation and Integration Challenges

Deploying Industrial Ethernet raises challenges in legacy migration from fieldbuses such as Profibus DP, managing coexistence with Wi‑Fi and 5G private networks, ensuring interoperability across vendors like Beckhoff and Yokogawa, and meeting regulatory compliance across jurisdictions including European Union and U.S. Department of Transportation rules. Operational technology (OT) teams coordinate with information technology (IT) teams using tools from Cisco, Juniper Networks, and Arista Networks for routing, while addressing cybersecurity threats identified by agencies like CISA and ENISA. Other barriers include cable management in retrofit projects, electromagnetic compatibility governed by EMC directives, and skills shortages in certified technicians trained via institutions such as Rosenheim Technical University and vendor training programs.
