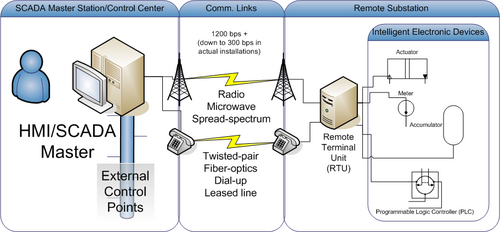

Lemaymd at English Wikipedia · Public domain · source
Name	DNP3
Developer	Harris Control Solutions
Introduced	1993
Latest release	2013 (DNP3 Secure Authentication v5)

DNP3

DNP3 is an industrial communications protocol used for supervisory control and data acquisition in electric power and water systems. It enables interoperability among remote terminal units, master stations, and intelligent electronic devices across wide-area networks used by utilities such as American Electric Power, Pacific Gas and Electric Company, Duke Energy, Exelon Corporation, and National Grid plc. DNP3 has influenced procurement, standards adoption, and cybersecurity efforts involving organizations like IEEE, IEC, NIST, Department of Energy (United States), and CISA.

Overview

DNP3 originated at Harris Corporation's Harris Control Solutions group and was designed to address limitations of earlier protocols deployed by entities such as General Electric and Schweitzer Engineering Laboratories. It supports event-driven reporting, time-stamped data, and efficient polling, features prized by utilities including Southern Company, Consolidated Edison, Entergy Corporation, Hydro-Québec, and TenneT. The protocol operates across serial links and packet networks similar to those used by Cisco Systems routers and Juniper Networks switches, facilitating integration with supervisory software from vendors like Schneider Electric, ABB, Siemens, Honeywell, and Rockwell Automation.

Protocol Architecture and Operation

DNP3 implements a layered architecture influenced by concepts in the OSI model and interoperates with transport technologies such as RS-232, RS-485, Ethernet, and TCP/IP. Core elements include object-oriented data types for binary inputs, analog inputs, counters, and control points—comparable to data models used by IEC 61850; logical subjects include time synchronization used in deployments alongside GPS and IRIG-B time codes. Masters and outstations (remote units) exchange messages with link, transport, and application functions; message framing and CRC techniques echo practices by Modbus and Profibus deployments. The protocol's event buffer, unsolicited response capability, and integrity polls reduce traffic on constrained links used by regional utilities like Manitoba Hydro and Iberdrola. Gateways and protocol converters from firms such as Toshiba and Mitsubishi Electric support mapping between DNP3 and protocols implemented by General Electric Grid Solutions and Emerson Electric.

Security Vulnerabilities and Mitigations

Historically, plain DNP3 lacked cryptographic protections, which led to exploitation scenarios analyzed by researchers at SANS Institute, US-CERT, and academic groups from Carnegie Mellon University and University of Illinois. Attacks included replay, spoofing, and man-in-the-middle techniques observed in case studies involving industrial incidents investigated by NIST and DOE. Mitigations progressed through the DNP Users Group and specifications incorporating Secure Authentication, leveraging cryptographic primitives standardized by IETF and NIST such as HMAC and AES. Deployment best practices reference recommendations from CISA, ENISA, and security frameworks used by ISO and IEC, and often integrate network segmentation using equipment from Palo Alto Networks and Fortinet, access control from Microsoft Active Directory, and monitoring via Splunk and IBM Security QRadar. Incident response playbooks align with procedures from FEMA and industrial cybersecurity consortia including EPRI and ISA.

Implementations and Use Cases

Commercial master and outstation implementations exist from Schweitzer Engineering Laboratories, SEL, Open Systems International, OSIsoft, Schneider Electric, ABB, Siemens, GE Vernova, and many regional integrators working with utilities such as Con Edison and National Grid plc. DNP3 is used in electric substations, water treatment facilities operated by companies like Veolia and Suez, pipeline SCADA operated by Enbridge and TransCanada Corporation, and renewable farms run by Vestas and NextEra Energy. Open-source stacks and libraries are available in projects maintained by developer communities influenced by organizations like The Linux Foundation and Apache Software Foundation, facilitating interoperability testing with tools from NIST's Smart Grid Interoperability Panel and conformance labs accredited by UL and CSA Group.

Standards, Compliance, and Certification

DNP3 specification work is coordinated by the DNP Users Group and harmonized with international standards programs undertaken by IEEE and IEC committees. Regulatory compliance intersects with mandates from Federal Energy Regulatory Commission in the United States, regional reliability organizations like NERC and ENTSO-E, and national regulators in jurisdictions served by Ofgem and CER (Ireland). Certification programs and conformance testing are performed by accredited laboratories associated with Underwriters Laboratories and vendor-neutral test houses; audits often reference cyber standards such as NERC CIP and ISO/IEC 27001. The adoption of Secure Authentication variants aligns with cryptographic guidance from NIST Special Publications and interoperates with PKI implementations used by utility certificate authorities and vendors like DigiCert and Entrust.
