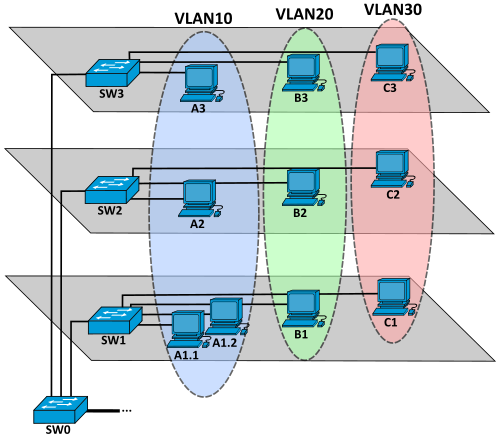

Caption	Virtual Local Area Network diagram
Invented	1990s
Inventor	Multiple vendors
Standard	IEEE 802.1Q
Type	Network virtualization

VLAN

A virtual local area network creates logical network segments within a switched Ethernet environment to partition traffic, improve management, and enforce policy. It separates broadcast domains across switches and routers while preserving physical topology, enabling administrative grouping of hosts by function, department, or security level. Early formalization came with standards and vendor implementations that allowed interoperable tagging, trunking, and management across multi-vendor campuses.

Overview

VLANs isolate broadcast traffic and define Layer 2 domains using tagging and port association across switched infrastructures such as those from Cisco Systems, Juniper Networks, Arista Networks, Hewlett Packard Enterprise, and Brocade Communications Systems. They interact with Layer 3 routing platforms like Cisco IOS, Juniper Junos, Linux kernel, and Windows Server for inter-VLAN routing and gateway services. Standards bodies including the Institute of Electrical and Electronics Engineers govern tagging formats, while industry forums such as the Internet Engineering Task Force influence related protocols used in data centers and enterprise campuses. VLANs are widely deployed in environments managed by organizations like Amazon Web Services, Microsoft Azure, Google Cloud, and by service providers following guidelines from Telecommunications Industry Association.

Types and Standards

VLAN implementations follow standards such as IEEE 802.1Q for tagging and IEEE 802.1ad for stacked tags, alongside vendor-specific modes like those developed by Cisco Systems (e.g., native VLAN handling). Related standards include IEEE 802.1D for bridging and IEEE 802.1X for port-based network access control. Other relevant technologies and extensions are Multiprotocol Label Switching in provider networks, Virtual Extensible LAN for overlay segmentation in cloud fabrics, and Provider Backbone Bridges for larger service provider topologies. Standards committees and working groups from Telecommunications Standards Development Society and national bodies contribute to interoperability testing with vendors such as Extreme Networks and Dell EMC.

Configuration and Operation

VLAN configuration uses switch interfaces, trunk links, and access ports configured on platforms like Cisco Catalyst series, Juniper EX switches, Arista 7050 series, and open-source projects such as Open vSwitch. Administrators assign ports to VLAN IDs, configure trunks using protocols like IEEE 802.1Q, and manage VLAN membership via management systems from VMware vSphere, Microsoft System Center, and Red Hat orchestration tools. Control plane protocols such as Link Aggregation Control Protocol and spanning tree variants like Rapid Spanning Tree Protocol coordinate forwarding behavior, while orchestration tools from Ansible and Puppet automate consistent VLAN provisioning across multi-vendor estates.

Security and Isolation

VLANs enforce segmentation policies to limit lateral movement and contain faults, complementing access control mechanisms specified by IEEE 802.1X and integrated with identity providers such as Active Directory and Okta. Security concerns include VLAN hopping exploits addressed by best practices recommended by vendors like Cisco Systems and Juniper Networks, and mitigations involving port security, private VLANs, and dynamic VLAN assignment. Isolation is often combined with firewalls from Palo Alto Networks, Fortinet, and Checkpoint Software Technologies to enforce east-west controls, and with monitoring from SIEM platforms such as Splunk and IBM QRadar for anomaly detection.

Performance and Scalability

VLAN scalability in large campuses and data centers is addressed with techniques like VLAN stacking (Q-in-Q), MAC-in-MAC, and overlays such as Virtual Extensible LAN and Generic Routing Encapsulation-based fabrics used by hyperscale operators including Facebook and Google. Performance depends on hardware forwarding capacity in ASICs produced by vendors like Broadcom and Intel, and on control plane designs such as those in Software-Defined Networking controllers from OpenDaylight and Cisco ACI. Large-scale designs leverage routing at the edge with protocols like Border Gateway Protocol and interior gateways such as Open Shortest Path First for predictable multi-site segmentation.

Use Cases and Applications

Common applications include departmental segmentation in enterprises like General Electric and Siemens, multi-tenant isolation in carrier and hosting providers such as Equinix, and overlay networks for virtualized workloads in platforms like VMware ESXi and Kubernetes. VLANs support compliance boundaries used by institutions such as World Bank and International Monetary Fund, voice VLANs for deployments from Avaya and Polycom telephony systems, and guest network segregation in hospitality deployments managed by vendors like Cisco Meraki.

Troubleshooting and Best Practices

Troubleshooting often involves tools and commands available in vendor OSes like Cisco IOS, Juniper Junos, and utilities in Linux distributions; techniques include verifying trunk negotiation, examining 802.1Q tags, and validating spanning tree topology involving Rapid Spanning Tree Protocol. Best practices recommend consistent VLAN numbering schemes, documented mapping to organizational units such as Human Resources and Finance Department (managerial entities), use of management VLANs isolated from user traffic, and integration with AAA servers such as RADIUS implementations from FreeRADIUS. Change control processes used by organizations like ITIL and monitoring via platforms from Nagios and Prometheus reduce configuration drift and outages.
