TCAS II

TCAS II
FlySafe Project · Public domain · source
Name	Traffic Collision Avoidance System II
Acronym	TCAS II
Developed by	MITRE Corporation, Collins Aerospace, Honeywell International Inc., Rockwell Collins
Initial release	1980s
Standard	RTCA, Inc. DO-185, EUROCAE ED-143
Primary function	airborne collision avoidance
Operating frequency	1030/1090 MHz
Aircraft types	Airbus A320 family, Boeing 737, Boeing 747, Embraer E-Jet family, Bombardier CRJ family, ATR 72
Country of origin	United States

TCAS II TCAS II is an airborne collision avoidance system installed on transport aircraft, designed to reduce mid-air collisions by independently surveilling surrounding aircraft and issuing coordination advisories. Developed from early airborne surveillance concepts, TCAS II complements air traffic control services and integrates with on-board transponders and Mode S surveillance to provide Resolution Advisories (RAs) and Traffic Advisories (TAs). It became mandated for large commercial airliner fleets following major international reviews and continues to evolve through standards and operational changes.

Overview

TCAS II functions as an independent safety layer alongside Federal Aviation Administration, Eurocontrol, International Civil Aviation Organization, and national civil aviation authority procedures. Using interrogations on 1030 MHz and replies on 1090 MHz, TCAS II interrogates nearby aircraft transponders including Mode C and Mode S squitters to build a three‑dimensional traffic picture. It provides pilot display cues and voice RAs when predicted trajectories indicate a risk, and interfaces with cockpit displays used by crews on Airbus A320 family, Boeing 737, and long‑haul types such as Boeing 777 and Boeing 747.

Technical Operation

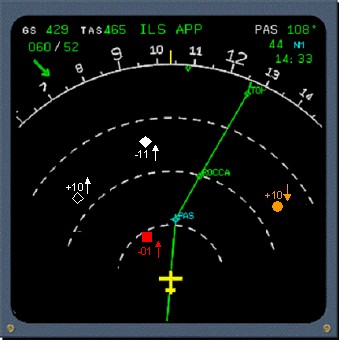

TCAS II consists of an on‑board processor, directional antenna array, altitude source (from air data computer or altimeter), and cockpit display units often integrated with Electronic Flight Instrument System or Multi‑Function Display. The interrogator transmits pairing pulses to elicit replies containing Mode A, Mode C, and Mode S data from transponders on nearby aircraft such as Cessna 172, Gulfstream IV, or Bombardier Dash 8. The processor computes range, bearing, and vertical rate to predict time to closest approach using algorithms derived from research by MITRE Corporation and standards from RTCA, Inc. and EUROCAE. Advanced implementations use TCAS II Version 7.1 changes to logic and sensitivity, while research projects have explored integration with Automatic Dependent Surveillance–Broadcast and NextGen concepts. Antenna placement and signal processing handle issues encountered with wake turbulence and multipath in terminal areas like Heathrow Airport and Hartsfield–Jackson Atlanta International Airport.

Alerting Logic and RA Guidance

TCAS II issues Traffic Advisories (TAs) to alert crews of proximate traffic and issues Resolution Advisories (RAs) commanding vertical maneuvers when a collision threat persists. Alert thresholds, time‑to‑closest‑approach windows, and reversal logic follow criteria standardized in DO‑185 and DO‑185B, influenced by safety reviews after incidents involving Japan Airlines and Aeroflot. RAs are coordinated between intruder and ownship to ensure complementary maneuvers via the TCAS Coordination Protocol; coordination uses short uplink/downlink exchanges conforming to Mode S downlink formats used at airports such as Charles de Gaulle Airport and Tokyo Haneda Airport. Voice RAs are issued in plain language such as "Climb, climb" or "Descend, descend" and are prioritized over conflicting ATC clearances per guidance from Federal Aviation Administration and European Union Aviation Safety Agency.

Certification and Regulatory History

Regulatory mandates for TCAS II followed high‑profile mid‑air collisions including incidents near New York City and Zurich Airport that prompted international studies by ICAO and national investigations by National Transportation Safety Board and Transportation Safety Board of Canada. The Federal Aviation Administration mandated TCAS II for certain classes of turbine‑powered aircraft in the 1990s; European Union regulations later harmonized requirements across member states via directives and EASA certification processes. Version upgrades such as 7.0 and 7.1 required new certification testing, software assurance per DO‑178B/DO‑178C, and interoperability validation with air traffic control systems used by NAV CANADA, NATS, and other service providers.

Limitations and Safety Incidents

TCAS II effectiveness is limited by transponder cooperation, coverage in high‑density terminal areas, and potential nuisance RAs. Non‑cooperative targets without functioning transponders—including some military aircraft and general aviation in certain regions—are not seen. Incidents such as the 2002 mid‑air over Germany and the 1996 Lake Karla encounter highlighted issues of RA/ATC coordination, pilot response, and system design, prompting procedural changes and awareness campaigns by ICAO and FAA advisory circulars. Research into false alerts, vulnerable scenarios in mountainous terrain near Denver International Airport, and integration with ADS‑B continues to shape safety guidance from EUROCONTROL and FAA working groups.

Implementation and Operational Procedures

Operational procedures require pilots to follow RAs immediately unless doing so would jeopardize safety, then promptly notify air traffic control; this protocol was emphasized after reviews by NTSB and BEA (France). Airlines such as British Airways, American Airlines, Lufthansa, Qantas, Japan Airlines, and Singapore Airlines include TCAS II training in line indoctrination and simulator scenarios aligned with guidance from ICAO Annex 6 and operator manuals approved by EASA or FAA. Ground‑based procedures at airports including Los Angeles International Airport and Changi Airport incorporate traffic flow measures to reduce reliance on reactive avoidance. Continuing airworthiness, software patch management, and equipment upgrades are governed by service bulletins from manufacturers like Honeywell International Inc. and Collins Aerospace and enforced through national airworthiness directives issued by agencies such as Transport Canada and Civil Aviation Administration of China.
