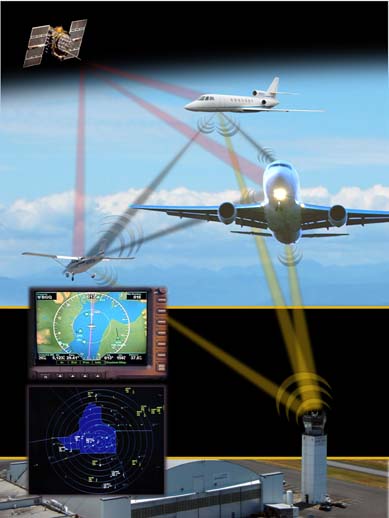

Automatic Dependent Surveillance–Broadcast

Automatic Dependent Surveillance–Broadcast
www.faa.gov · Public domain · source
Name	Automatic Dependent Surveillance–Broadcast
Abbreviation	ADS-B
Introduced	1990s
Developer	Eurocontrol; Federal Aviation Administration; ICAO
Type	aircraft surveillance technology

Automatic Dependent Surveillance–Broadcast is an avionics surveillance technology that enables aircraft to determine their position via Global Positioning System and periodically broadcast it to ground stations and other aircraft. It emerged from cooperative programs involving Eurocontrol, the Federal Aviation Administration, and the International Civil Aviation Organization and has been integrated into modern air traffic control architectures across multiple regions. ADS-B underpins initiatives such as NextGen (FAA) and SESAR, facilitating more precise aviation situational awareness, trajectory management, and surveillance services.

Overview

ADS-B consists of aircraft avionics broadcasting position, velocity, identification, and other state vectors derived from Global Navigation Satellite System receivers such as GPS, GLONASS, Galileo, and BeiDou. Ground-based and airborne ADS-B receivers operated by entities like the Federal Aviation Administration, Eurocontrol, Airservices Australia, and the Civil Aviation Administration of China receive these broadcasts for air traffic control and traffic collision avoidance system enhancement. Mandates by regulators such as the European Commission and the United States Congress accelerated ADS-B equipage alongside legacy systems like radar and Mode S transponder.

Technical Description

ADS-B transmission formats include ADS-B Out, which periodically emits position reports using protocols such as 1090 MHz ES Extended Squitter and Universal Access Transceiver variants for data link communications. Aircraft integrate GNSS inputs, flight management systems from manufacturers like Boeing and Airbus, and altitude data from air data computer units to construct the broadcast. Ground infrastructure includes ADS-B receivers, multilateration nodes used in concert with Primary Surveillance Radar and Secondary Surveillance Radar at facilities operated by agencies such as Nav Canada and NATS (air traffic control). Data link standards and message sets are coordinated via ICAO Annexes and technical groups including RTCA and EUROCAE.

Operational Use and Procedures

Air traffic service providers implement ADS-B for surveillance replacement or enhancement in terminal, arrival, and en-route environments, altering procedures for separation minima, surveillance service delivery, and airspace design. Airlines such as Delta Air Lines, United Airlines, Lufthansa, and Qantas equipped fleets to meet mandates and enable operational benefits like performance-based navigation integration and optimized descents used by programs from FAA and Eurocontrol. Aircrew procedures reference avionics certification standards from RTCA DO-260B/DO-282B and maintenance protocols tied to organizations like FAA Advisory Circulars and European Union Aviation Safety Agency regulations. Military users from United States Air Force and Royal Air Force have adapted ADS-B in mixed civil-military airspace coordination.

Implementation and Global Adoption

Implementation timelines varied: the United States mandated ADS-B Out in 2020 for Class A, B, and C airspace; the European Union and Australia followed region-specific schedules tied to SESAR and Airservices Australia programs. Emerging economies coordinated adoption through frameworks by ICAO and regional bodies such as African Civil Aviation Commission and Civil Aviation Administration of China. Vendors including Garmin, Honeywell Aerospace, Rockwell Collins, and Thales Group supplied avionics, while service integrators like INDRA Sistemas and SITA supported ground networks. Some remote regions used satellite-based ADS-B receivers offered by consortia including Iridium Communications and Spire Global to extend surveillance beyond line-of-sight.

Benefits and Limitations

ADS-B yields benefits in trajectory predictability leveraged by NextGen (FAA) and SESAR initiatives, enabling reduced separation, fuel savings, and improved search and rescue accuracy when integrated with systems like Cospas-Sarsat and FlightAware trackers. Limitations include dependence on GNSS integrity, spectrum congestion on 1090 MHz affecting interoperability with systems such as Mode S, and performance variances in high-density environments like Heathrow Airport and Hartsfield–Jackson Atlanta International Airport. Implementation costs driven by avionics retrofits impact operators including regional airlines and cargo carriers, while legacy radar remains necessary in some airspace controlled by organizations like Nav Canada and NATS (air traffic control).

Security and Privacy Considerations

ADS-B broadcasts are unauthenticated and unencrypted, raising concerns for civil aviation stakeholders, including Airlines and national authorities such as Department of Transportation (United States) and European Commission. Academic and industry researchers at institutions like Massachusetts Institute of Technology, Stanford University, and University of Cambridge have demonstrated spoofing and tracking vulnerabilities that could affect operations near critical infrastructure such as Heathrow Airport and JFK Airport. Mitigation proposals involve multilateration, cryptographic frameworks discussed at ICAO panels, and operational controls by agencies like FAA and European Union Aviation Safety Agency, along with privacy measures pursued by carriers like British Airways.

Future Developments and Research

Ongoing research by laboratories and consortia including NASA, DARPA, ESA, and EASA explores resilient ADS-B via cryptographic authentication, hybrid surveillance combining satellite ADS-B and multilateration, and integration with Unmanned Aerial Vehicle traffic management efforts led by FAA and SESAR U-space projects. Industry initiatives from Boeing, Airbus, Honeywell Aerospace, and startups such as Aireon advance satellite-based ADS-B for oceanic and polar coverage, while standards bodies like ICAO, RTCA, and EUROCAE continue to evolve performance and interoperability specifications to support the next generation of aviation operations.
