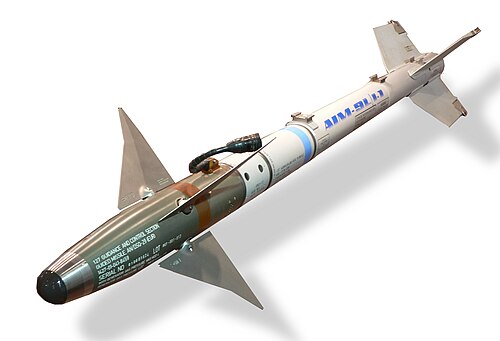

David Monniaux modified by FOX 52 · CC BY-SA 4.0 · source
Name	Sidewinder
Caption	AIM-9 Sidewinder on F-4 Phantom II
Origin	United States
Type	Air-to-air missile
Manufacturer	Naval Ordnance Test Station, Raytheon, General Dynamics
In service	1956–present
Wars	Vietnam War, Yom Kippur War, Falklands War, Gulf War, Operation Desert Storm, Kargil War

Sidewinder (missile) is a family of short-range, infrared homing air-to-air missiles developed in the 1950s and fielded by the United States Navy and later adopted by numerous air forces and navies worldwide. Originating from research at the Naval Ordnance Test Station and later produced by firms such as Raytheon and General Dynamics, the weapon became a benchmark for heat-seeking guided munitions used in conflicts from Vietnam War to 21st-century engagements. Its compact design, passive guidance, and adaptability fostered widespread export and licensed manufacture across NATO, Israel, India, United Kingdom, and other partners.

Development and design

Development began at the Naval Ordnance Test Station in the early 1950s under engineers like William B. McLean following experiences from Korean War air combat. Early trials used modified aircraft such as the F4D Skyray and F3H Demon as testbeds, while capture of captured MiG-15 and study of captured ordnance influenced seeker concepts. Design emphasized a tubular airframe, solid-fuel rocket motor, and a passive infrared seeker that could be mounted on fighters such as the F-86 Sabre, F-4 Phantom II, and later F/A-18 Hornet. The original propulsion and control layout balanced simplicity and reliability, enabling the missile to be adapted into successive models with improved propulsion, warhead lethality, and aerodynamics.

Operational history

The missile entered service with the United States Navy and United States Air Force in 1956 and saw first extensive combat during the Vietnam War on aircraft like the F-4 Phantom II and F-105 Thunderchief. Exported versions were used by NASA test programs and allied forces; notable combat uses included Israeli Air Force employment during the Six-Day War aftermath and the Yom Kippur War, Argentine aircraft in the Falklands War, and coalition aircraft during Operation Desert Storm. Engagement records influenced tactical doctrines in air-to-air combat for forces such as the Royal Air Force and Indian Air Force, driving upgrades responding to countermeasures witnessed in conflicts including the Indo-Pakistani War of 1971 and the Kargil War.

Variants and upgrades

The Sidewinder family spans models from the original early series to advanced versions such as the AIM-9L, AIM-9M, AIM-9X, and export derivatives like the Python-class competitors produced under license. Each variant introduced improvements: the AIM-9L added all-aspect engagement capability used by platforms like the F-15 Eagle and F-16 Fighting Falcon; the AIM-9M improved counter-countermeasures for platforms including the F/A-18 Hornet and AV-8B Harrier II; the AIM-9X introduced thrust-vectoring and helmet cueing interoperable with systems such as the Joint Helmet Mounted Cueing System. Licensed and allied production occurred with manufacturers in United Kingdom, Australia, Japan, Sweden, and Italy, supporting local fleets like the Royal Australian Air Force and Japan Air Self-Defense Force.

Guidance and seekers

Core guidance is passive infrared homing, with early seekers sensitive to engine heat signatures detected across spectral bands. Successive seeker generations incorporated cooled detectors, bandpass filtering, signal processing borrowed from efforts at Sandia National Laboratories and design influences from Lockheed sensor programs, and improved electronics from contractors like Texas Instruments. Counter-countermeasure capabilities evolved to reject flares and decoys used by aircraft such as the MiG-21 and Su-27, while the AIM-9X seeker supports high off-boresight acquisition integrated with helmet-mounted displays employed by pilots from United States Navy and Israeli Air Force squadrons.

Combat use and tactics

Tactics evolved from rear-aspect tail-chase engagements employed in early Korean War-era doctrine to all-aspect engagements enabled by later models used in Vietnam War sorties and later conflicts. Integration with fire-control radars on platforms such as the F-14 Tomcat and pilot cueing systems on aircraft like the F-35 Lightning II changed employment, enabling high off-boresight shots during merge maneuvers. Rules of engagement and training at institutions like the United States Naval Test Pilot School and Topgun emphasized situational awareness, flare employment, and cooperative tactics such as wingman pairing and beyond-visual-range handoff to reduce fratricide and improve kill probability.

Operators and deployment

Operators include aviation arms of nations such as the United States Navy, United States Air Force, Royal Air Force, Israeli Air Force, Indian Air Force, Royal Australian Air Force, Japan Air Self-Defense Force, Italian Air Force, and many NATO and non-NATO states. Deployment spans carrier air wings on vessels like USS Nimitz and land-based squadrons operating fighters including the F-16 Fighting Falcon, F-15 Eagle, Eurofighter Typhoon (in some export fits), and maritime patrol conversions. Export controls and Foreign Military Sales handled through agencies like the Defense Security Cooperation Agency regulated transfers alongside licensed production agreements with firms in partner countries.

Specifications and performance

Typical dimensions and performance vary by variant; representative characteristics include a length near 3 m, diameter ~127 mm, wingspan ~0.63 m, and launch weight between 85–90 kg for earlier versions and up to ~90–95 kg for later improvements. Propulsion uses solid-fuel rocket motors producing high thrust for a few seconds, achieving speeds in excess of Mach 2.5 and ranges typically from 18 to 35 km depending on launch parameters and model. Warhead is a high-explosive fragmentation design with a proximity and contact fuze reputed effective against modern fighter airframes. Aerothermal limits, seeker sensitivity, and maneuverability (augmented by thrust-vector control in late models) define engagement envelopes used in pilot employment and integration with modern avionics.
