Secondary Surveillance Radar

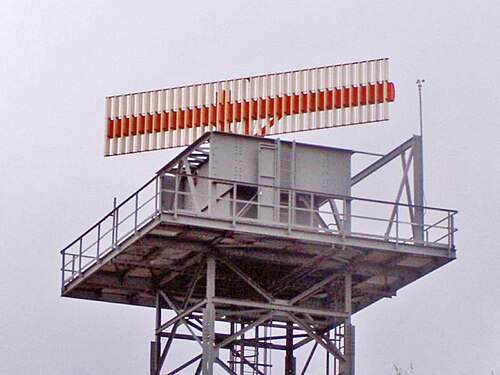

Secondary Surveillance Radar
c.w. · CC BY-SA 3.0 · source
Name	Secondary Surveillance Radar
Acronym	SSR
Introduced	1950s
Application	Air traffic control, aircraft identification, collision avoidance
Frequency	1030 MHz (interrogation), 1090 MHz (reply)
Developer	Raytheon, Marconi Company, ITT Corporation
Predecessor	Primary radar
Successor	Automatic Dependent Surveillance–Broadcast

Secondary Surveillance Radar is an air traffic surveillance technology that enables identification and altitude reporting of aircraft using cooperative avionics transponders. The system complements primary radar by exchanging coded interrogations and replies on dedicated radio frequencies, providing controllers with discrete flight number and pressure altitude data and enhancing situational awareness during air traffic control operations.

Overview and Principles

Secondary surveillance operates by transmitting encoded interrogations from a ground-based interrogator to airborne transponders that respond with discrete, formatted replies. Fundamental principles derive from radio frequency pulse timing, time-division multiplexing, and digital encoding standards that evolved through contributions by ICAO, Eurocontrol, and RTCA. The interrogation/reply paradigm contrasts with echo-based reflection used by radar pioneers such as Robert Watson-Watt and institutions like MIT Radiation Laboratory.

System Components and Architecture

An SSR installation typically comprises a ground interrogator, a directional or omnidirectional antenna assembly, signal processors, and display subsystems integrated into an air traffic control center. Ground interrogators implement protocols defined by ICAO Annex 10 and standards from DO-181 and EUROCAE documents. Antenna farms are often colocated with primary surveillance radar at facilities managed by organizations such as Federal Aviation Administration, NATS (air traffic control), or Airservices Australia. Modern architectures integrate multilateration sensors, Mode S data processors, and networked remote radio heads for redundancy across regions like Eurocontrol Maastricht Upper Area Control Centre.

Modes and Transponder Interrogation

SSR supports multiple interrogation modes with distinct purposes and coding. Mode A conveys a discrete four-digit SSR code assigned by controllers; Mode C reports pressure altitude using 25-foot increments encoded via Gillham code compatible with many altimeter systems. Mode S introduces selective interrogation and data-link capabilities, enabling aircraft identification via unique 24-bit addresses allocated by ICAO and facilitating Traffic Collision Avoidance System coordination specified in standards developed by RTCA and EUROCAE. Specialized interrogations include Mode 3/A and Mode C combined pulses, and extended squitter messages used in ADS-B broadcast implementations.

Operation and Procedures

A ground interrogator emits an interrogation pulse pair on 1030 MHz; compliant transponders reply on 1090 MHz within a precise time window. Controllers assign SSR codes during clearance coordination, often recorded in flight plans filed with agencies like International Civil Aviation Organization member states and national authorities such as Civil Aviation Authority (United Kingdom). Pilot procedures for squawk selection, ident activation, and transponder failure follow published guidance from ICAO PANS-ATM and local directives issued by entities such as Eurocontrol and Federal Aviation Administration. During handover between sectors managed by centers like London Area Control Centre or FAA ARTCC, SSR code continuity and Mode S interrogations support seamless surveillance transfer.

Performance, Limitations, and Accuracy

SSR offers rapid update rates and reliable identity reporting but has constraints tied to transponder compliance, radio propagation, and frequency congestion. Line-of-sight propagation limits coverage to terrain profiles influenced by features such as the Rocky Mountains or Andes, while multilateration and secondary radar networks mitigate coverage gaps in regions like North Sea platforms. Ambiguities such as code duplication, false replies from crosstalk, or reply stacking can occur under high interrogation rates; spectrum management by regulators like International Telecommunication Union addresses 1030/1090 MHz allocation. Altitude reporting accuracy depends on altimeter encoding and pressure settings; Mode C errors may arise from misset altimeter settings or transponder faults.

Integration with Air Traffic Control and Surveillance Systems

SSR data are fused with primary radar returns, multilateration, and ADS-B feeds within surveillance data processing systems operated by organizations such as Eurocontrol and FAA. Integrated displays in control centers present synthetic tracks, call signs, and flight plan data sourced from Aeronautical Fixed Telecommunication Network messages and airline operations centers like SITA and ARINC. Networked ground stations enable wide-area multilateration and remote interrogation, supporting operations at complex airports including Heathrow Airport, John F. Kennedy International Airport, and Sydney Kingsford Smith Airport.

History and Development

Development of cooperative surveillance emerged in the 1940s and 1950s through research by military and civil laboratories including MIT Lincoln Laboratory, Royal Aircraft Establishment, and companies such as Marconi Company and Raytheon. Early civil adoption in the 1960s paralleled standardization efforts by ICAO and later refinements led to Mode S and selective addressing during the 1980s and 1990s driven by demands from carriers represented by groups like IATA and regulatory bodies such as EASA. Subsequent advances integrated SSR with collision avoidance systems like TCAS and modern data-link capabilities culminating in interoperability with Automatic Dependent Surveillance–Broadcast and next-generation surveillance programs championed by agencies including FAA and Eurocontrol.
