North American Craton

North American Craton
USGS · Public domain · source
Name	North American Craton
Type	Craton
Location	North America
Coordinates	54°N 100°W
Area	~20 million km²
Age	Archean–Proterozoic

North American Craton The North American Craton is the ancient, stable interior portion of the continental lithosphere that underlies much of Canada, the United States, and parts of northern Mexico. It preserves a long record of Archean and Proterozoic crustal growth, orogeny, and stabilization events, and forms the tectonic nucleus around which younger Cordilleran orogeny, Appalachian Mountains, and other Phanerozoic belts accreted. The craton influences modern patterns of glaciation, drainage, mineral exploration, and seismic hazard across North America.

Introduction

The craton comprises the shield and platform that together include the Canadian Shield, the Laurentian Highlands, and extensive Phanerozoic sedimentary cover on the Interior Plains and Michigan Basin. Its existence has been essential to reconstructions of the supercontinents Kenorland, Columbia, Rodinia, and Pannotia, and to interpretations of continental assembly in the Proterozoic Eon. Key historical milestones in study include mapping by the Geological Survey of Canada, synthesis by geoscientists such as Arthur Holmes and J. Tuzo Wilson, and tectonic frameworks developed in papers by the Canadian Shield research community.

Geological Composition and Structure

The craton displays Archean granitoid-greenstone terrains, Proterozoic mafic dike swarms, and layered sequences of metamorphic gneiss exposed in shield areas like the Superior Province, Slave Craton, and Nain Province. Overlying platform sediments include the Hudson Bay Basin, the Williston Basin, and the Permian Basin margins where Phanerozoic carbonate and clastic strata rest on Precambrian basement. Crustal thickness varies from ~30 km beneath the Interior Platform to >50 km beneath the exposed shield provinces, with lithospheric mantle keels inferred by mantle tomography and xenolith studies tied to work from institutions such as the Lamont–Doherty Earth Observatory and US Geological Survey.

Tectonic History and Cratonization

Cratonization involved early Archean crustal accretion, mid-Archean to Proterozoic collisional events, and long-lived stabilization during the Proterozoic with thermal cooling and depletion of the subcontinental lithospheric mantle. Accretionary sutures record collisions between microcontinents and terranes such as the Superior Province and the Trans-Hudson Orogen, while major Paleoproterozoic orogenies like the Trans-Hudson and Penokean orogeny stitched together earlier crustal fragments. Subsequent Neoproterozoic rifting related to the breakup of Rodinia and Phanerozoic passive-margin development preceded accretion of the Cordillera during Mesozoic–Cenozoic terrane collisions involving the Insular Superterrane and Farallon Plate interactions.

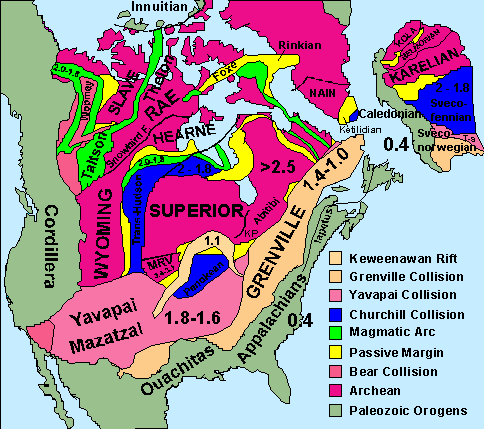

Major Provinces and Boundaries

Prominent provinces include the Superior Province, Slave Craton, Nain Province, Hearne Province, Rae Province, and the Grenville Province margin, each bounded by orogenic belts like the Trans-Hudson Orogen and the Grenville Orogeny front. The craton’s eastern margin grades into the Appalachian orogen via the Grenville}} (note: Grenville front exposures) while the western margin transitions to the Cordilleran orogen through the Cordilleran Foreland, Canadian Rockies, and accreted terranes of western British Columbia. Interior boundaries are also defined by major shear zones, massif sutures, and Proterozoic rift systems such as the Midcontinent Rift and the Great Plains Rift.

Economic Geology and Resources

The craton hosts world-class mineral deposits including Archean lode gold in the Timmins and Red Lake districts within the Superior Province, nickel–copper–platinum-group element sulfides in the Sudbury Basin and the Norilsk-type targets, volcanogenic massive sulfide deposits in greenstone belts, and iron formations like the Labrador Trough and Mesabi Range. Sedimentary basins overlying the craton contain hydrocarbon systems in the Williston Basin, Western Canada Sedimentary Basin, and Gulf Coast Basin margins, as well as evaporite and potash deposits in the Saskatchewan bedrock sequences. Critical mineral exploration targets for lithium, rare earth elements, and copper increasingly focus on both shield-hosted pegmatites and terrigenous host rocks mapped by agencies including the Natural Resources Canada and US Department of Energy.

Geophysical and Geochemical Studies

Geophysical surveys—broadband seismic arrays, magnetotelluric profiles, gravity and aeromagnetic mapping—have imaged cratonic lithospheric keels, deep crustal reflectors, and sedimentary basin architecture, with major campaigns led by the Canada–US Passive Seismic Network and projects like the USArray component of EarthScope. Geochemical analyses of isotopes (Sm-Nd, Rb-Sr, Lu-Hf, U-Pb zircon) from laboratories at Massachusetts Institute of Technology, University of Toronto, and the Geological Survey of Canada constrain crustal growth rates, metamorphic histories, and mantle depletion events. Mantle xenolith studies, aided by research at the Scripps Institution of Oceanography, reveal metasomatism and lithospheric modification beneath cratonic roots.

Evolution and Role in North American Geodynamics

Throughout Phanerozoic time the craton has acted as a rigid buttress influencing orogenic propagation, sediment routing, and intraplate stress fields that control seismicity in regions such as the New Madrid Seismic Zone and the Charlevoix Seismic Zone. Its thermal and compositional evolution informs models of continental stability, lithosphere–asthenosphere interaction, and continental breakup processes exemplified by episodes tied to Pangaea assembly and dispersal. Ongoing interdisciplinary studies by consortia including the International Lithosphere Program aim to refine timelines of craton formation, link crust–mantle processes, and map resources vital to twenty‑first century energy and mineral needs.
