Nb3Sn

Nb3Sn
Charlie Sanabria · CC BY 4.0 · source
Name	Niobium tin
Formula	Nb3Sn
Appearance	Metallic, bronze-colored intermetallic
Crystal system	Cubic (A15)
Space group	Pm3n
Molar mass	577.84 g·mol−1
Density	8.8 g·cm−3
Melting point	~2,470 °C (decomposes)
Category	Intermetallic superconductor

Nb3Sn is an intermetallic compound of niobium and tin that forms the A15 crystal structure and is a premier high-field superconductor used in scientific, medical, and energy technologies. It combines a high critical temperature and upper critical magnetic field with brittle mechanical behavior, requiring specialized materials science processing routes and multifilamentary conductor architectures for practical use. Nb3Sn plays a central role in large-scale projects such as accelerator magnets and fusion experiments where high current density under intense magnetic field is essential.

Structure and Properties

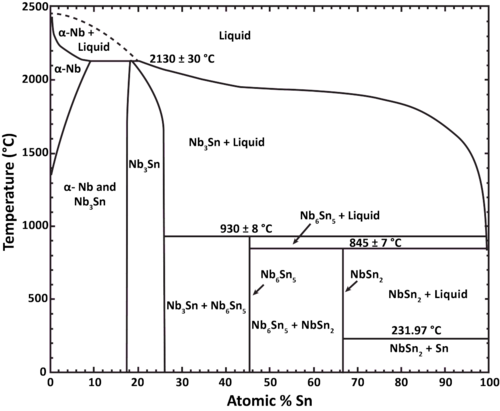

Nb3Sn crystallizes in the A15 structure type, a cubic lattice characterized by three-dimensional networks of linear chains of niobium atoms along the cube edges with tin atoms occupying body-centered positions. This motif is shared with other A15 compounds such as V3Si, Nb3Al, Mo3Si, and Ti3Au, leading to similar electronic and phononic features that favor superconductivity. The electronic density of states at the Fermi level, electron–phonon coupling, and lattice instabilities underpin the high superconducting transition temperature relative to simple metallic elements; these factors have been analyzed in ab initio studies from groups at institutions like MIT, Argonne National Laboratory, and Oak Ridge National Laboratory. Nb3Sn exhibits strong anisotropy in its phonon spectrum and a characteristic diffusionless ordering pathway from off-stoichiometric precursors studied in the context of phase diagrams developed by researchers at Max Planck Institute for Metal Research.

Superconductivity and Critical Parameters

Nb3Sn is a conventional, phonon-mediated superconductor described by BCS-like frameworks enhanced by strong coupling effects. It has a superconducting critical temperature Tc around 18 K in stoichiometric material, and an upper critical magnetic field Hc2 exceeding 25–30 tesla depending on composition, strain, and heat treatment—a performance exploited by teams at CERN, Fermilab, and ITER collaborators. The critical current density Jc of multifilamentary Nb3Sn conductors depends on pinning centers, grain size, and flux creep dynamics studied by research groups at Lawrence Berkeley National Laboratory and Brookhaven National Laboratory. Alloying with elements such as titanium or hafnium and introducing nanoscale precipitates has been pioneered at institutions like General Electric and Siemens to raise Jc and Hc2. Magnet development programs at KEK and RAL optimize these parameters through iterative conductor design and coil winding protocols.

Fabrication and Processing

Because Nb3Sn is brittle after transformation, practical conductors are manufactured by in situ or bronze-route processing strategies developed and refined at Oxford University, Cambridge University, and industrial firms including Babcock Noell and Bruker. The bronze process involves embedding niobium filaments in a copper–tin bronze matrix and thermally reacting to form Nb3Sn, while the internal-tin and restacked rod processes use elemental tin sources redistributed during heat treatment. Advanced powder-in-tube and chemical vapor deposition routes have been explored by laboratories at Toshiba and Tokyo Institute of Technology. Heat treatment schedules, reaction temperatures, and diffusion kinetics are controlled to optimize phase purity and grain size; these topics were the subjects of seminal contributions from researchers at General Atomics and Ecole Polytechnique. Industrial-scale wire drawing and cabling use technologies from Pirelli and Hitachi, and quality control employs electron microscopy, X-ray diffraction, and magnetometry at facilities such as NIST.

Applications

Nb3Sn is the superconducting material of choice for high-field magnets in particle accelerators, nuclear magnetic resonance (NMR) spectrometers, and magnetic confinement fusion devices. Major deployments include the high-field quadrupoles and dipoles developed for the Large Hadron Collider upgrade at CERN, and the toroidal field coils planned for the ITER tokamak and experimental devices at Princeton Plasma Physics Laboratory. In medical imaging, Nb3Sn enables research-grade high-field NMR and MRI systems at institutions like UCSF and Johns Hopkins University for spectroscopy and advanced imaging. Nb3Sn magnets are also critical in neutron scattering instruments at facilities such as ISIS Neutron and Muon Source and Oak Ridge National Laboratory's Spallation Neutron Source.

Mechanical and Thermal Behavior

Post-reacted Nb3Sn is intrinsically brittle and sensitive to strain; tensile, compressive, and bending strains degrade superconducting properties due to alterations in lattice parameters and electron–phonon coupling. Mechanical reinforcement strategies developed at CERN and Fermilab use stainless steel, Inconel, and epoxy impregnation to manage Lorentz forces in large magnets. Thermal stability and quench protection draw on cryogenic engineering practices refined at Brookhaven National Laboratory and ITER partners, including stabilizer materials like high-purity copper and active quench detection systems applied in superconducting magnet programs at DESY.

Historical Development and Discovery

Nb3Sn was discovered in the mid-20th century amid intensive searches for higher-Tc materials; early A15 superconductors were characterized in laboratories including Bell Labs and Cambridge University during the 1950s and 1960s. Key development milestones include the identification of the A15 crystal superconductors by researchers influenced by work at Columbia University and the scaling of industrial wire processes in the 1960s and 1970s by firms such as Westinghouse and AlliedSignal. Subsequent efforts by teams at CERN, Fermilab, and national labs worldwide drove conductor optimization for accelerator and fusion applications, while contemporary research continues at universities and companies including MIT, Stanford University, Siemens, and Oxford Instruments.
