Inconel

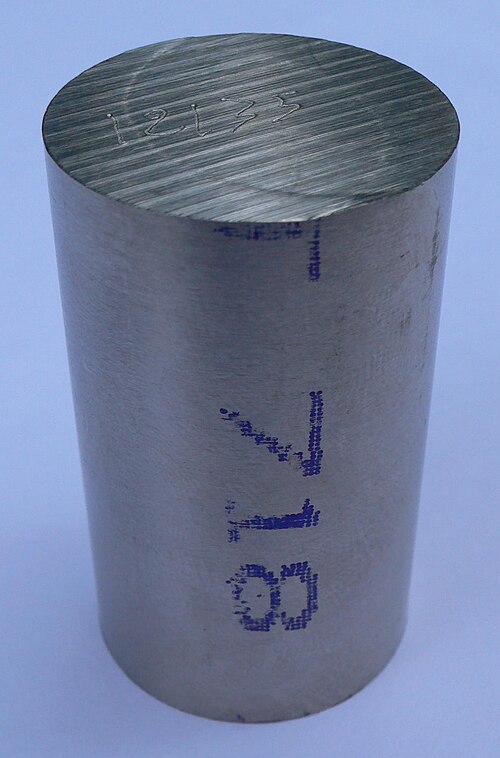

Inconel
Ascaron · CC BY-SA 3.0 · source
Name	Inconel
Category	Nickel-based superalloy
Appearance	metallic
Density	8.4–8.7 g/cm³
Melting point	~1350–1410 °C
Major elements	Nickel, Chromium
Minor elements	Iron, Molybdenum, Niobium, Titanium, Aluminum
Uses	Turbine blades, combustion chambers, chemical process equipment

Inconel is a family of nickel-chromium-based superalloys developed for high-temperature and corrosive environments. Originating in mid-20th century industrial research and aerospace programs, Inconel grades combine nickel's high-temperature strength with chromium's oxidation resistance to serve in gas turbines, chemical plants, and nuclear systems. Major variants are specified and produced by industrial manufacturers and standards organizations for specialty applications in energy, aerospace, and marine sectors.

Composition and Microstructure

Inconel alloys are principally alloyed with Nickel, Chromium, and controlled additions of elements such as Iron, Molybdenum, Niobium, Titanium, and Aluminum that modify phase stability, precipitation, and grain structure. Microstructural control employs nickel-rich face-centered cubic matrices with coherent and semi-coherent precipitates such as gamma prime (γ') and gamma double prime (γ'') similar to those characterized in Wrought nickel-based superalloys, producing strengthening mechanisms comparable to those in Nimonic and Rene (alloy series). Carbide dispersions (e.g., MC, M23C6) and intermetallic phases resemble features studied in Mar-M series research; control of these phases is crucial to avoid embrittlement phenomena documented in Aerospace alloy failure investigations. Thermomechanical processing, including hot working and solution treatment, tailors grain size and precipitate distribution akin to methods used for Hastelloy and Haynes International alloys.

Mechanical Properties and Physical Characteristics

Inconel exhibits high tensile strength and creep resistance at elevated temperatures, rivaling early Titanium and Stainless steel candidates used in turbojet and rocket engine development programs. Typical properties include yield strength, ultimate tensile strength, and creep-rupture behavior benchmarked under standards from organizations such as American Society for Testing and Materials and International Organization for Standardization. Density and modulus are comparable to other nickel-base superalloys used in Rolls-Royce and General Electric engines. Thermal expansion coefficients and thermal conductivity influence component design in systems developed by Pratt & Whitney and Boeing. Fatigue crack growth rates and notch sensitivity are evaluated in test protocols similar to those applied in NASA and European Space Agency materials programs.

Manufacturing and Fabrication

Fabrication routes for Inconel include vacuum induction melting and vacuum arc remelting processes used by producers such as Special Metals Corporation and Praxair, followed by forging, hot rolling, and machining operations comparable to workflows in ArcelorMittal and ThyssenKrupp steel mills. Joining methods cover gas tungsten arc welding and electron beam welding practices deployed in Rolls-Royce turbine component manufacture, and additive manufacturing approaches mirror processes pioneered in GE Additive and EOS GmbH powder-bed fusion systems. Heat treatment cycles are aligned with practices in Aerospace manufacturing to precipitate strengthening phases analogous to protocols for Maraging steel and Invar alloys. Surface finishing and coating strategies reference industrial standards used by Siemens and Mitsubishi Heavy Industries.

Corrosion and Oxidation Resistance

Chromium-rich oxide scales formed on Inconel surfaces confer resistance to high-temperature oxidation similar to behaviors observed in Chromium-stabilized stainless alloys employed in BWR and PWR reactor components. Alloying with molybdenum and niobium enhances resistance to pitting and crevice corrosion under conditions studied in Petrochemical plant environments operated by firms like Chevron and ExxonMobil. Sulfidation resistance and hot corrosion performance are critical in gas turbine hot sections developed by Siemens Energy and Ansaldo Energia. Corrosion fatigue interactions and stress-corrosion cracking susceptibility are assessed using test methods from ASTM International and research programs at institutions such as Oak Ridge National Laboratory and Imperial College London.

Applications and Industry Use

Inconel variants serve in aerospace engine hot sections for companies including Rolls-Royce, General Electric, and Pratt & Whitney; rocket engine components in programs by SpaceX, Blue Origin, and national agencies like NASA; and chemical-processing equipment utilized by BASF and Dow Chemical Company. Marine and subsea systems produced by Subsea 7 and TechnipFMC exploit corrosion resistance, while nuclear industry suppliers such as Westinghouse specify Inconel materials for control rod and reactor internals. Medical device and surgical instrument manufacturers like Stryker Corporation reference nickel-base alloys for specialty implants in select cases. Energy transition projects including concentrated solar power arrays and advanced gas turbines from Siemens Energy increasingly adopt nickel-based superalloys for improved thermal efficiency.

Standards and Grades

Common grades are designated and standardized by authorities including ASTM International and SAE International, with widely used variants aligned with specifications such as those produced historically by Inco Limited and current producers like Special Metals Corporation. Recognized designations include multiple industry numbers and trade names that correspond to standardized codes used in procurement by Boeing, Airbus, and national laboratories. Testing and certification follow procedures from NIST-aligned laboratories and conformity assessments in supply chains managed by multinational contractors such as Lockheed Martin and Northrop Grumman.
